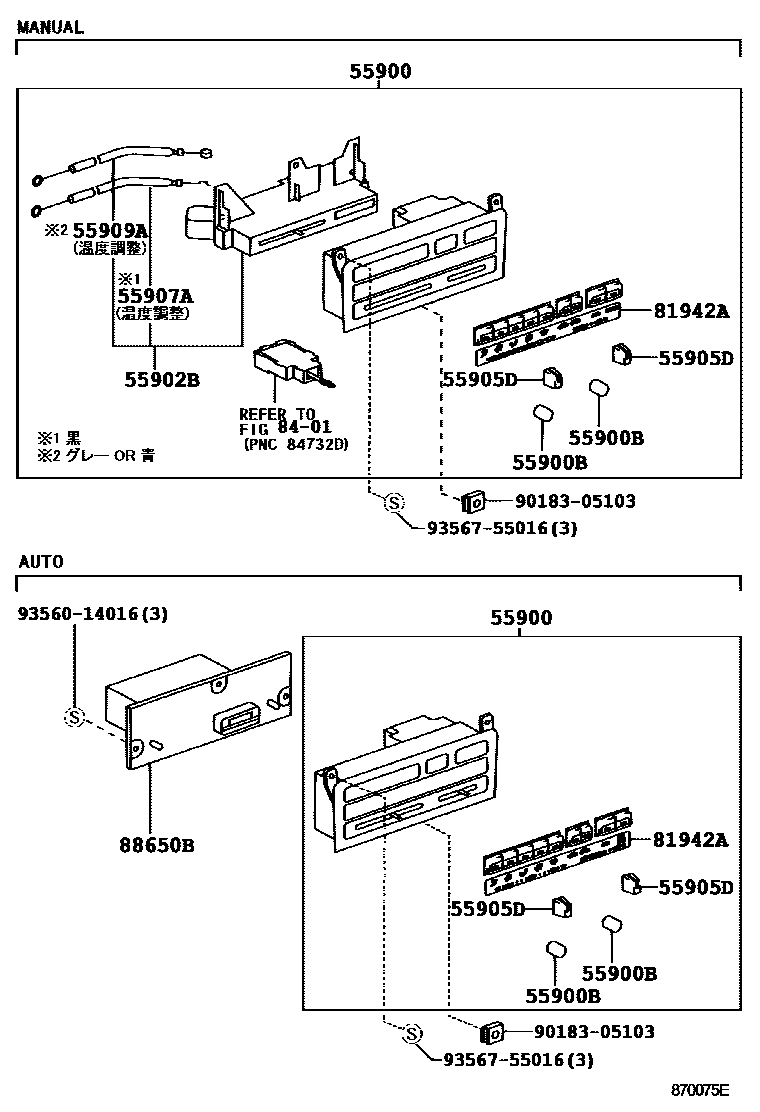

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
55900CONTROL ASSY, AIR CONDITIONER
55902BCONTROL SUB-ASSY, HEATER
55905DKNOB SUB-ASSY, CONTROL
55907ACABLE SUB-ASSY, WATER VALVE CONTROL
55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL
81942ASHEET, HEATER CONTROL NAME, NO.1
8401
88650BAMPLIFIER ASSY, AIRCONDITIONER
9018305103
main90183-05103
9356014016
main93560-14016
9356755016
main93567-55016
12 parts on this diagram · 6 diagrams in section
