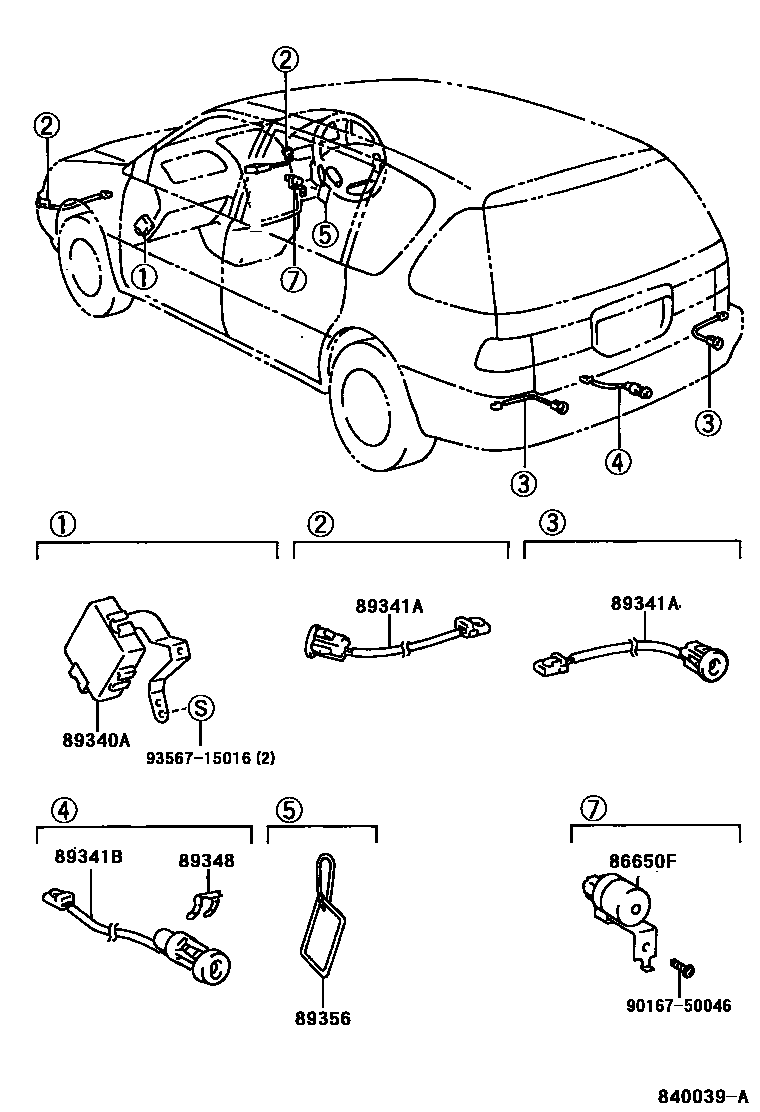

CLEARANCE & BACK SONAR

86650FBUZZER ASSY

main86650-28040iSXM1#199605-199708

main86650-28040iSXM1#..IPSUM199806

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-44010iSXM1#199605-199708

89341ASENSOR, ULTRASONIC, NO.1

main89341-44010iSXM1#199605-199701

sub89341-44011

main89341-44011iSXM1#199701-199708

sub89341-44140

89341BSENSOR, ULTRASONIC, NO.2

main89341-44020iSXM1#199605-199701

sub89341-44021

main89341-44021iSXM1#199701-199708

main89341-44030iSXM1#..ATG199708

89348RETAINER, ULTRASONIC SENSOR, NO.1

main89348-22010iSXM1#199605-199708

89356LABEL, CLEARANCE WARNING INFORMATION

main89356-44010iSXM1#199605-199708

9016750046

main90167-50046

9356715016

main93567-15016

8 parts on this diagram · 1 diagram in section
