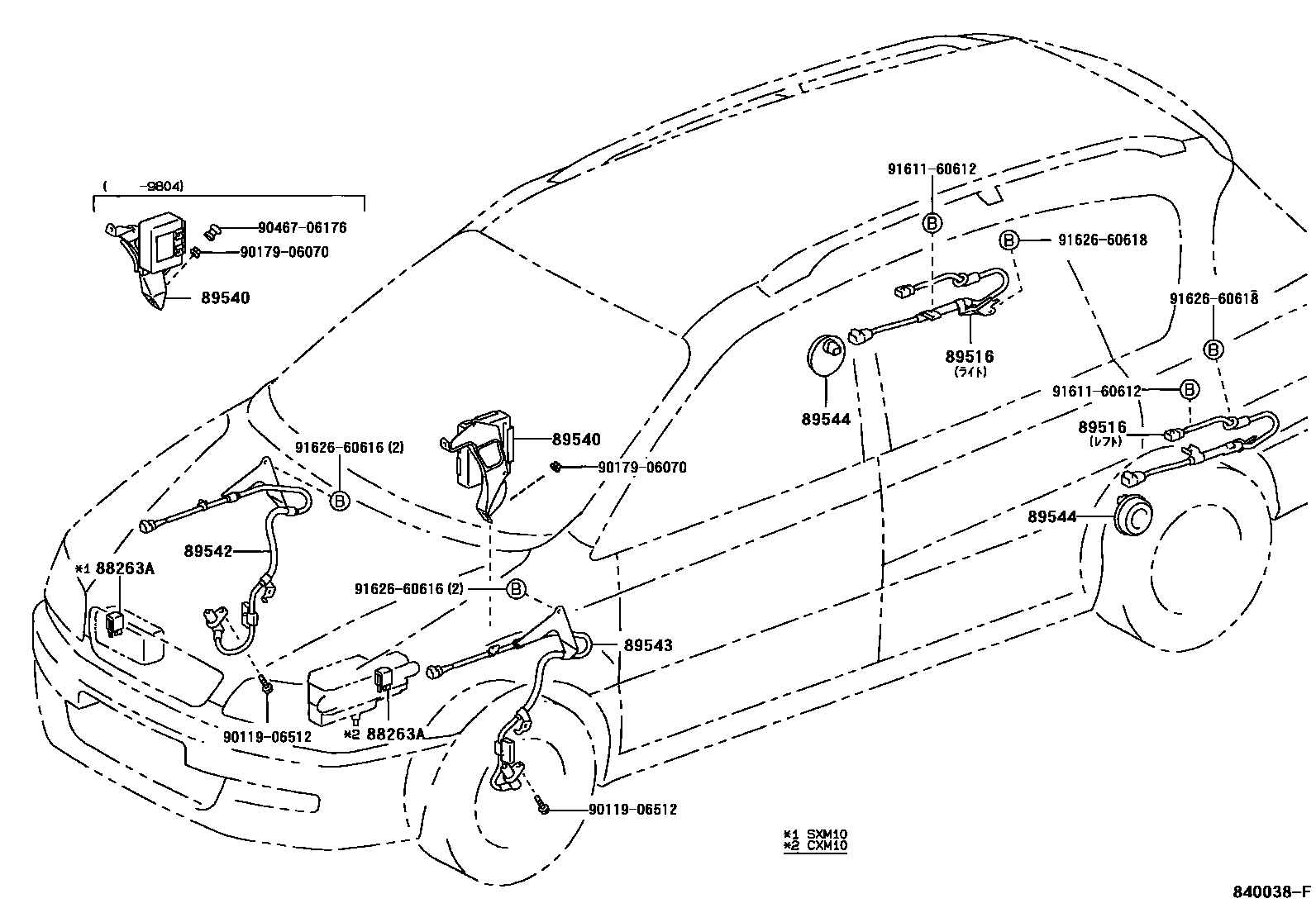

ABS & VSC

0001 1 0002 1

88263ARELAY, SKID CONTROL

main88263-24030iCXM10,SXM1#199605

89516WIRE, SKID CONTROL SENSOR

main89516-44010iCXM10,SXM10199605

main89516-44020iCXM10,SXM10199605-199804

main89516-44030iCXM10,SXM10199804

89540COMPUTER ASSY, SKID CONTROL

main89540-44010iSXM10199605-199708

main89540-44050iCXM10,SXM10199708-199804

main89540-44070iCXM10,SXM10199804

main89541-44010iSXM15199605-199804

sub89541-44020

main89541-44030iSXM15199804-199903

main89541-44031iSXM15199903-199912

main89541-44032iSXM15199912

89542SENSOR, SPEED, FRONT RH

main89542-20130iCXM10,SXM1#199605-199905

main89542-44010iCXM10,SXM1#199905

89543SENSOR, SPEED, FRONT LH

main89543-20130iCXM10,SXM1#199605-199905

main89543-44010iCXM10,SXM1#199905

89544SENSOR, SKID CONTROL

main89544-44010iCXM10,SXM10199605

9011906512

main90119-06512

9017906070

main90179-06070

9046706176

main90467-06176

9161160612

main91611-60612

9162660616

main91626-60616

9162660618

main91626-60618

12 parts on this diagram · 2 diagrams in section
