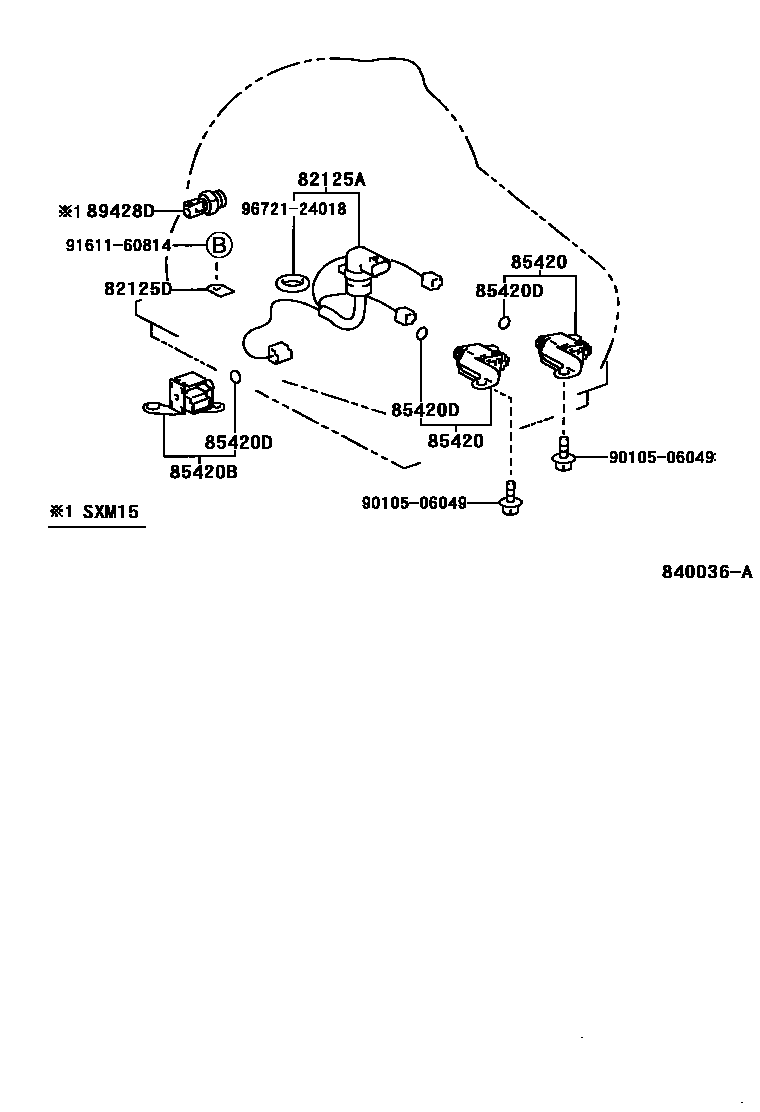

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0003 1 0004 1

82125AWIRE, TRANSMISSION

main82125-12350iSXM10199804

main82125-20220iCXM10,SXM15199605-199804

main82125-32050iSXM15199605-199804

82125DPLATE, TRANSMISSION WIRE LOCK

main33485-30020iCXM10,SXM10199605-199804

85420SOLENOID ASSY, TRANSMISSION

main85420-12100iSXM10199804-199809

sub85420-21010

main85420-12120iSXM10199804-199809

sub85420-21030

main85420-21010iSXM10199809

main85420-21020iSXM10199809

sub85420-21010

main85420-21030iSXM10199809

sub85420-21040

main85420-21040iSXM10199809

main85420-21090iCXM10,SXM15199804-199809

main85420-21100iCXM10,SXM15199804-199809

main85420-30200iCXM10,SXM10199605-199804

sub85420-21090

main85420-32102iSXM15199605-199804

85420BSOLENOID ASSY, TRANSMISSION

main85420-12140iSXM10199804-199809

sub85420-21050

main85420-20140iCXM10199605-199809

sub85420-21070

main85420-21050iSXM10199809

sub85420-21060

main85420-21060iSXM10199809

main85420-21070iSXM15199804-199810

main85420-21070iCXM10,SXM15199810

main85420-21080iCXM10,SXM15199804-199810

sub85420-21070

main85420-32111iSXM15199701-199804

main85420-32120iSXM15199605-199701

sub85420-32121

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iSXM15199605-199804

89428DSWITCH, TEMPERATURE, NO.2

main89428-12140iSXM15199605

9010506049

main90105-06049

9161160814

main91611-60814

9672124018

main96721-24018

9 parts on this diagram · 3 diagrams in section
