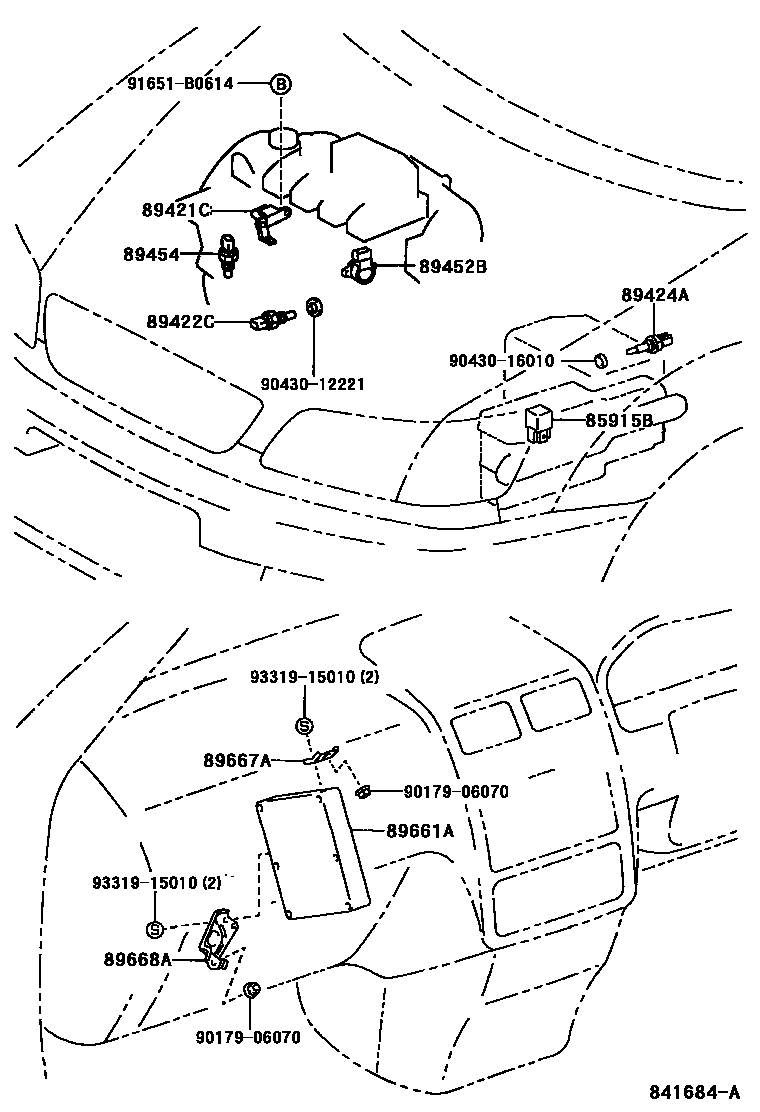

ELECTRONIC CONTROLED DIESEL (ECD)

85915BRELAY, MAIN (FOR DIESEL TURBO)

main85915-26010iCXM10199709

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89420-20260iCXM10199709

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-35010iCXM10199709

89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)

main89424-60010iCXM10199709

89452BSENSOR, THROTTLE POSITION

main89452-21020iCXM10199709

89454SENSOR, FUEL TEMPERATURE

main89454-60010iCXM10199804

89661ACOMPUTER, ENGINE CONTROL

main89661-44070iCXM10199709

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-44010iCXM10199709-199804

main89667-44030iCXM10199804

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-44010iCXM10199709-199804

main89668-44030iCXM10199804

9017906070

main90179-06070

9043012221

main90430-12221

9043016010

main90430-16010

91651B0614

main91651-B0614

9331915010

main93319-15010

14 parts on this diagram · 1 diagram in section
