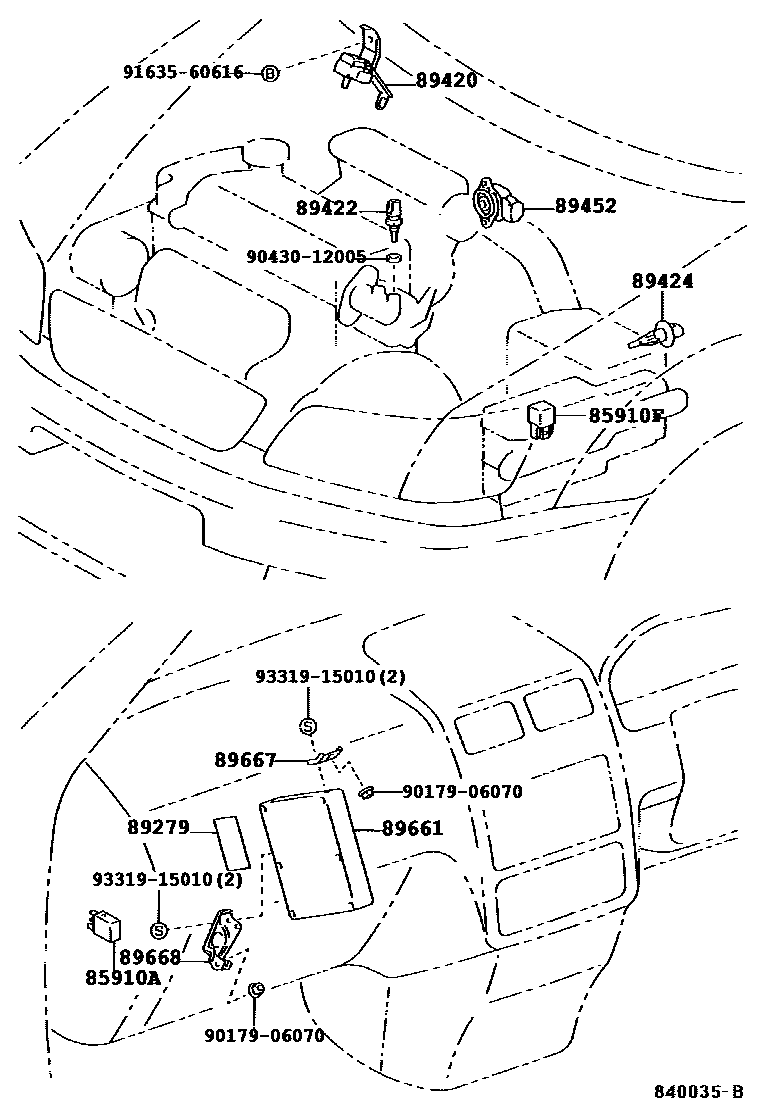

ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iSXM1#199605

85910FRELAY, COMPUTER (FOR EFI)

main90987-02009iSXM1#199605

89279COVER, ENGINE CONTROL COMPUTER

main89279-44010iSXM1#199606-199804

89420SENSOR ASSY, VACUUM

main89420-44010iSXM1#199605-199804

main89420-44040iSXM1#199804

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iSXM1#199804

main89422-22030iSXM1#199804

main89422-35010iSXM1#199605-199804

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iSXM1#199605-200105

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20130iSXM1#199605-199609

main89452-33030iSXM1#199609

89661COMPUTER, ENGINE CONTROL

main89661-44010iSXM10199605-199804

main89661-44020iSXM15199605-199804

main89661-44100iSXM10199804

main89661-44110iSXM15199804

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-44010iSXM1#199605-199804

main89667-44030iSXM1#199804

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-44010iSXM1#199605-199804

main89668-44030iSXM1#199804

9017906070

main90179-06070

9043012005

main90430-12005

9163560616

main91635-60616

9331915010

main93319-15010

14 parts on this diagram · 1 diagram in section
