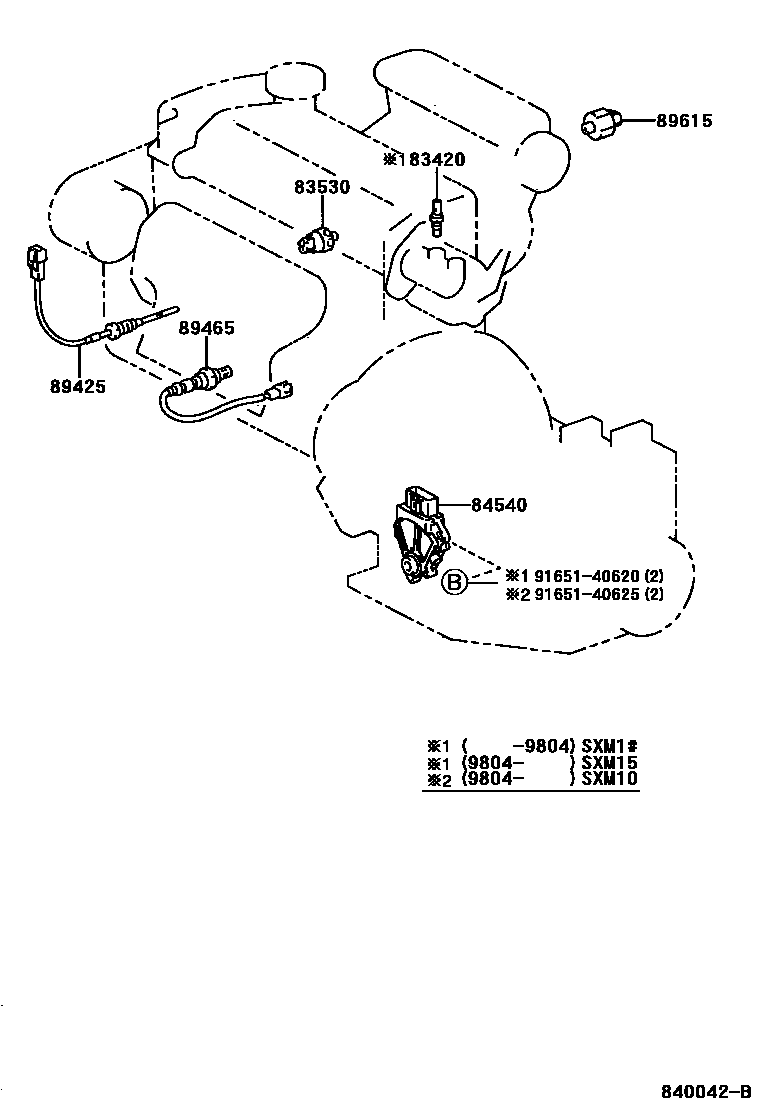

SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� & ��������� 0003 1����� �-� 0004 1����� �-� 0005 1����� ���� 0006 1����� ���� 0007 1��� 0008 1�-� ����� ���� 0009 1���,�-� & ���

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iCXM10199709

main83420-20040iSXM1#199605-199804

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iSXM1#199803

main83530-30090iSXM1#199605-199803

sub83530-60020

main83530-30100iCXM10199709-199803

sub83530-60010

main83530-60010iCXM10199803

main83530-60020iSXM1#199803

84540SWITCH ASSY, NEUTRAL START

main84540-12200iSXM10199804

main84540-12210iSXM10199804

main84540-16050iCXM10,SXM15199605-199804

main84540-20200iSXM15199605-199804

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-20210iSXM1#199605-199708

sub89425-20290

89465SENSOR, OXYGEN

main89465-20400iSXM1#199605

89615SENSOR, KNOCK CONTROL

main89615-20030iSXM1#199605-199910

sub89615-32040

main89615-32030iSXM1#199910

main89615-32040iSXM1#199910

sub89615-32030

main89615-33020iSXM1#199605-199910

sub89615-32030

9165140620

main91651-40620

9165140625

main91651-40625

8 parts on this diagram · 9 diagrams in section
