REAR SEAT & SEAT TRACK

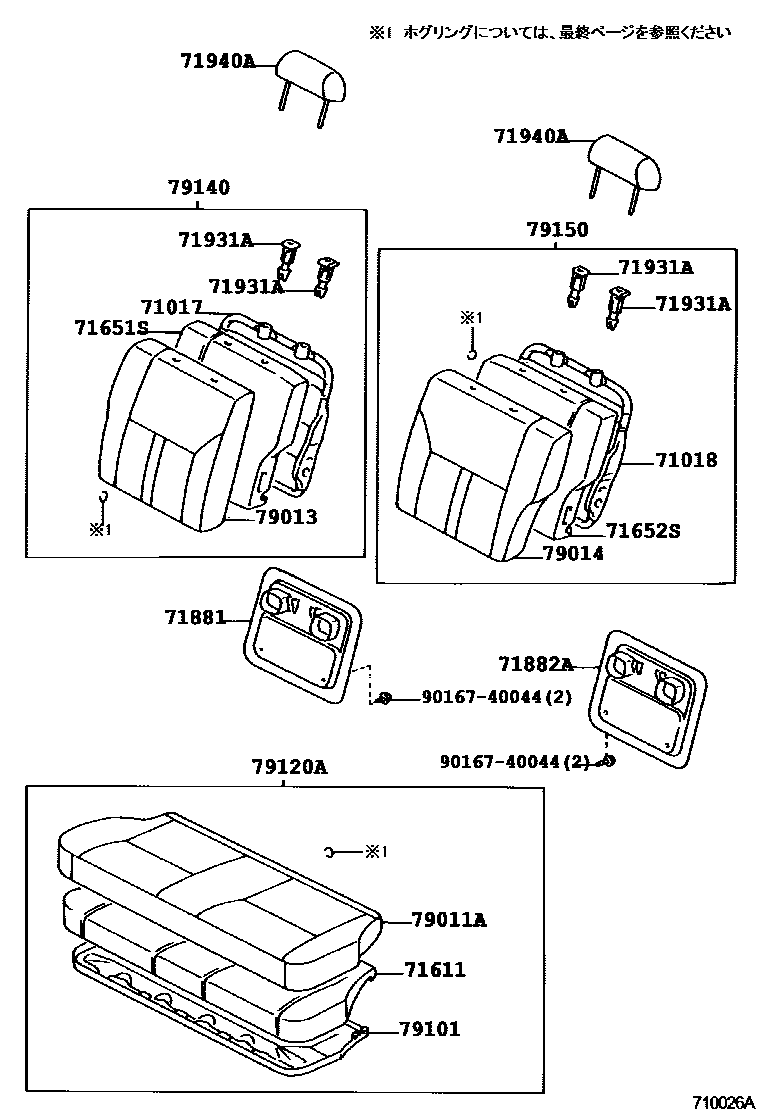

Parts diagram
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main79103-44010i¥7,200199605
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main79104-44010i¥7,200199605
71611PAD, REAR SEAT CUSHION
main79135-44010i¥31,000199605
sub79135-44090¥33,000
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main79175-44010i¥16,200199605
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main79185-44010i¥16,200199605
71881BOARD, REAR SEATBACK, RH
main71881-44010-A0i199812-200004
sub71881-44010¥11,200
main71881-44010-A0i199806
sub71881-44010¥11,200
main71881-44010-A0i199910-200004
sub71881-44010¥11,200
main71881-44010-A0i200004-200009
sub71881-44010¥11,200
main71881-44010-A0i200010-200104
sub71881-44010¥11,200
main71881-44010-B0i199605
MD.MOON MIST,TRIM1#
sub71881-44010¥11,200
main71881-44010-C0i199804
sub71881-44010¥11,200
71882ABOARD, REAR SEATBACK, LH
main71881-44010-A0i199812-200004
sub71881-44010¥11,200
main71881-44010-A0i199910-200004
sub71881-44010¥11,200
main71881-44010-A0i200004-200009
sub71881-44010¥11,200
main71881-44010-A0i200010-200104
sub71881-44010¥11,200
main71881-44010-A0i199806
sub71881-44010¥11,200
main71881-44010-B0i199605
MD.MOON MIST,TRIM1#
sub71881-44010¥11,200
main71881-44010-C0i199804
sub71881-44010¥11,200
71931ASUPPORT, REAR SEAT HEADREST
main71930-44010-A1i200004-200009
sub71930-44010¥1,240
main71930-44010-A1i199806
sub71930-44010¥1,240
main71930-44010-A1i199812-200004
sub71930-44010¥1,240
main71930-44010-A1i199910-200004
sub71930-44010¥1,240
main71930-44010-A1i200010-200104
sub71930-44010¥1,240
main71930-44010-B0i199605-200105
sub71930-44010¥1,240
main71930-44010-C0i199804
sub71930-44010¥1,240
main71931-12040-P6i199609-199712
sub71931-12040¥920
sub71931-10020¥1,010
main71931-28030-A1i200004-200009
sub71931-28030¥1,010
main71931-28030-A1i200010-200104
sub71931-28030¥1,010
main71931-28030-A1i199910-200004
sub71931-28030¥1,010
main71931-28030-A1i199806
sub71931-28030¥1,010
main71931-28030-A1i199812-200004
sub71931-28030¥1,010
main71931-28030-B5i199804-200105
sub71931-28030¥1,010
main71931-28030-C0i199804
sub71931-28030¥1,010
main71931-32020-B2i199605-199609
sub71931-32020¥920
71940AHEADREST ASSY, REAR SEAT
main71910-44010-B0i199605-199804
MD.MOON MIST,TRIM1#
main71910-44020-B0i199605-199708
MD.MOON MIST,TRIM1#
main71910-44021-B1i199708-199804
MEDIUM MOON MIST,TRIM1#
main71910-44021-B1i199801-199804
main71910-44022-B3i199804-199909
main71910-44022-B3i199804-199909
MEDIUM MOON MIST,TRIM1#
main71910-44023-B7i199909-200105
MD. MOON MIST,TRIM1#
main71910-44030-B0i199605-199708
MD.MOON MIST,TRIM1#
main71910-44031-B1i199801-199804
main71910-44031-B1i199708-199804
MEDIUM MOON MIST,TRIM1#
main71910-44032-B3i199804-199909
MEDIUM MOON MIST,TRIM1#
main71910-44033-B6i199909-200105
MD. MOON MIST,TRIM1#
main71910-44040-B0i199801-199804
sub71910-44040¥29,600
main71910-44040-B0i199708-199804
MEDIUM MOON MIST,TRIM1#
sub71910-44040¥29,600
main71910-44040-B1i199804-199909
MEDIUM MOON MIST,TRIM1#
sub71910-44040¥29,600
main71910-44041-B2i199909-200004
MD. MOON MIST,TRIM1#
main71910-44042-B2i200004-200105
MD.MOON MIST,TRIM1#
main71910-44100-B1i199712-199804
main71910-44110-B0i199804-199909
MEDIUM MOON MIST,TRIM1#
main71910-44111-B5i199909-200105
MD. MOON MIST,TRIM1#
main71910-44120-C0i199804
main71910-44160-A0i199910-200004
main71910-44160-A0i199812-200004
main71910-44230-A1i200004-200009
main71910-44240-A0i200010-200104
79011ACOVER SUB-ASSY, NO.1 SEAT CUSHION
main79011-44010-B0i199605-199804
MEDIUM MOON MIST,TRIM1#
main79011-44020-B2i199605-199708
MEDIUM MOON MIST,TRIM1#
main79011-44021-B3i199708-199804
MEDIUM MOON MIST,TRIM1#
main79011-44022-B4i199804-199908
MEDIUM MOON MIST,TRIM1#
sub79011-44023¥45,000
main79011-44022-B6i199908-199909
MEDIUM MOON MIST,TRIM1#
sub79011-44023¥45,000
main79011-44023-B6i199909
MEDIUM MOON MIST,TRIM1#
main79011-44030-B2i199605-199708
MEDIUM MOON MIST,TRIM1#
main79011-44031-B3i199708-199804
MEDIUM MOON MIST,TRIM1#
main79011-44032-B4i199804-199908
MEDIUM MOON MIST,TRIM1#
sub79011-44033¥45,900
main79011-44032-B5i199908-199909
MEDIUM MOON MIST,TRIM1#
sub79011-44033¥45,900
main79011-44033-B5i199909
MEDIUM MOON MIST,TRIM1#
main79011-44050-B0i199708-199804
MEDIUM MOON MIST,TRIM1#
main79011-44051-B0i199804-199908
MEDIUM MOON MIST,TRIM1#
sub79011-44052¥45,000
main79011-44051-B1i199908-199909
MEDIUM MOON MIST,TRIM1#
sub79011-44052¥45,000
main79011-44052-B1i199909-200004
MEDIUM MOON MIST,TRIM1#
main79011-44053-B3i200004
MD.MOON MIST,TRIM1#
main79011-44130-B0i199804-199908
MEDIUM MOON MIST,TRIM1#
sub79011-44131¥38,100
main79011-44130-B1i199908-199909
MEDIUM MOON MIST,TRIM1#
sub79011-44131¥38,100
main79011-44131-B1i199909
MEDIUM MOON MIST,TRIM1#
main79011-44140-B0i199712-199804
main79011-44150-C0i199804
main79011-44180-E0i199806
main79011-44220-A0i199910-200004
main79011-44220-A0i199812-200004
main79011-44300-A0i200004-200009
main79011-44380-A0i200010-200104
79013COVER SUB-ASSY, NO.1 SEATBACK, RH
main79013-44010-B0i199605-199804
MEDIUM MOON MIST,TRIM1#
main79013-44011-B1i199804-199908
MEDIUM MOON MIST,TRIM1#
sub79013-44012¥28,700
main79013-44011-B2i199908-199909
MEDIUM MOON MIST,TRIM1#
sub79013-44012¥28,700
main79013-44012-B2i199909
MEDIUM MOON MIST,TRIM1#
main79013-44020-B2i199605-199708
MEDIUM MOON MIST,TRIM1#
main79013-44021-B3i199708-199804
MEDIUM MOON MIST,TRIM1#
main79013-44022-B4i199804-199908
MEDIUM MOON MIST,TRIM1#
sub79013-44023¥33,800
main79013-44022-B6i199908-199909
MEDIUM MOON MIST,TRIM1#
sub79013-44023¥33,800
main79013-44023-B6i199909
MEDIUM MOON MIST,TRIM1#
main79013-44030-B2i199605-199708
MEDIUM MOON MIST,TRIM1#
main79013-44031-B3i199708-199804
MEDIUM MOON MIST,TRIM1#
main79013-44032-B4i199804-199908
MEDIUM MOON MIST,TRIM1#
sub79013-44033¥34,700
main79013-44032-B5i199908-199909
MEDIUM MOON MIST,TRIM1#
sub79013-44033¥34,700
main79013-44033-B5i199909
MEDIUM MOON MIST,TRIM1#
main79013-44060-B0i199708-199908
MEDIUM MOON MIST,TRIM1#
sub79013-44061¥33,800
main79013-44060-B1i199908-199909
MEDIUM MOON MIST,TRIM1#
sub79013-44061¥33,800
main79013-44061-B1i199909-200004
MEDIUM MOON MIST,TRIM1#
main79013-44062-B2i200004
MD.MOON MIST,TRIM1#
main79013-44140-B0i199712-199804
main79013-44160-C0i199804
main79013-44190-E0i199806
main79013-44220-A0i199812-200004
main79013-44220-A0i199910-200004
main79013-44300-A0i200004-200009
main79013-44400-A0i200010-200104
79014COVER SUB-ASSY, NO.1 SEATBACK, LH
main79014-44010-B0i199605-199804
MEDIUM MOON MIST,TRIM1#
main79014-44011-B1i199804-199908
MEDIUM MOON MIST,TRIM1#
sub79014-44012¥28,700
main79014-44011-B2i199908-199909
MEDIUM MOON MIST,TRIM1#
sub79014-44012¥28,700
main79014-44012-B2i199909
MEDIUM MOON MIST,TRIM1#
main79014-44020-B2i199605-199708
MEDIUM MOON MIST,TRIM1#
main79014-44021-B3i199708-199804
MEDIUM MOON MIST,TRIM1#
main79014-44022-B4i199804-199908
MEDIUM MOON MIST,TRIM1#
sub79014-44023¥33,800
main79014-44022-B6i199908-199909
MEDIUM MOON MIST,TRIM1#
sub79014-44023¥33,800
main79014-44023-B6i199909
MEDIUM MOON MIST,TRIM1#
main79014-44030-B2i199605-199708
MEDIUM MOON MIST,TRIM1#
main79014-44031-B3i199708-199804
MEDIUM MOON MIST,TRIM1#
main79014-44032-B4i199804-199908
MEDIUM MOON MIST,TRIM1#
sub79014-44033¥34,700
main79014-44032-B5i199908-199909
MEDIUM MOON MIST,TRIM1#
sub79014-44033¥34,700
main79014-44033-B5i199909
MEDIUM MOON MIST,TRIM1#
main79014-44060-B0i199708-199804
MEDIUM MOON MIST,TRIM1#
main79014-44061-B0i199804-199908
MEDIUM MOON MIST,TRIM1#
sub79014-44062¥33,800
main79014-44061-B1i199908-199909
MEDIUM MOON MIST,TRIM1#
sub79014-44062¥33,800
main79014-44062-B1i199909-200004
MEDIUM MOON MIST,TRIM1#
main79014-44063-B2i200004
MD.MOON MIST,TRIM1#
main79014-44140-B0i199712-199804
main79014-44160-C0i199804
main79014-44190-E0i199806
main79014-44220-A0i199910-200004
main79014-44220-A0i199812-200004
main79014-44300-A0i200004-200009
main79014-44330-A0i200010-200104
79101FRAME SUB-ASSY, NO.1 SEAT CUSHION
main79101-44010i¥31,100199605
79120ACUSHION ASSY, NO.1 SEAT
main79120-44010-B0i199605-199804
***,MD.MOON MIST,TRIM1#
main79120-44020-B0i199605-199708
***,MD.MOON MIST,TRIM1#
main79120-44021-B1i199708-199804
***,MEDIUM MOON MIST,TRIM1#
main79120-44022-B2i199804-199909
***,MEDIUM MOON MIST,TRIM1#
sub79120-44023¥87,800
main79120-44023-B4i199909
***,MD. MOON MIST,TRIM1#
main79120-44030-B0i199605-199708
***,MD.MOON MIST,TRIM1#
main79120-44031-B1i199708-199804
***,MEDIUM MOON MIST,TRIM1#
main79120-44032-B2i199804-199909
***,MEDIUM MOON MIST,TRIM1#
sub79120-44033¥90,000
main79120-44033-B3i199909
***,MD. MOON MIST,TRIM1#
main79120-44050-B0i199708-199804
***,MEDIUM MOON MIST,TRIM1#
main79120-44051-B1i199804-199909
***,MIDIUM MOON MIST,TRIM1#
sub79120-44052¥87,800
main79120-44052-B2i199909-200004
***,MD. MOON MIST,TRIM1#
main79120-44053-B2i200004
***,MD.MOON MIST,TRIM1#
main79120-44130-B0i199712-199804
main79120-44140-B0i199804-199909
***,LT.GRAY,TRIM1#
sub79120-44141
main79120-44141-B1i199909
***,MD. MOON MIST,TRIM1#
main79120-44150-C0i199804
main79120-44180-E0i199806
main79120-44210-A0i199812-200004
main79120-44210-A0i199910-200004
main79120-44290-A0i200004-200009
main79120-44300-A0i200010-200104
79140BACK ASSY, NO.1 SEAT, RH
main79140-44010-B0i199605-199804
***,MD.MOON MIST,TRIM1#
main79140-44011-B1i199804-199909
***,MEDIUM MOON MIST,TRIM1#
sub79140-44012¥61,500
main79140-44012-B2i199909
***,MD. MOON MIST,TRIM1#
main79140-44020-B0i199605-199708
***,MD.MOON MIST,TRIM1#
main79140-44021-B1i199708-199804
***,MEDIUM MOON MIST,TRIM1#
main79140-44022-B2i199804-199909
***,MEDIUM MOON MIST,TRIM1#
sub79140-44023¥66,100
main79140-44023-B4i199909
***,MD. MOON MIST,TRIM1#
main79140-44030-B0i199605-199708
***,MD.MOON MIST,TRIM1#
main79140-44031-B1i199708-199804
***,MEDIUM MOON MIST,TRIM1#
main79140-44032-B2i199804-199909
***,MEDIUM MOON MIST,TRIM1#
sub79140-44033¥67,500
main79140-44033-B3i199909
***,MD. MOON MIST,TRIM1#
main79140-44060-B0i199708-199804
MEDIUM MOON MIST,TRIM1#
sub79140-44060¥66,100
sub79140-44061¥66,100
main79140-44060-B1i199804-199909
***,MEDIUM MOON MIST,TRIM1#
sub79140-44060¥66,100
sub79140-44061¥66,100
main79140-44061-B2i199909-200004
***,MD. MOON MIST,TRIM1#
main79140-44062-B2i200004
***,MD.MOON MIST,TRIM1#
main79140-44140-B0i199712-199804
main79140-44160-C0i199804
main79140-44190-E0i199806
main79140-44220-A0i199910-200004
main79140-44220-A0i199812-200004
main79140-44300-A0i200004-200009
main79140-44310-A0i200010-200104
79150BACK ASSY, NO.1 SEAT, LH
main79150-44010-B0i199605-199804
***,MD.MOON MIST,TRIM1#
main79150-44011-B1i199804-199909
***,MEDIUM MOON MIST,TRIM1#
sub79150-44012¥61,500
main79150-44012-B2i199909
***,MD. MOON MIST,TRIM1#
main79150-44020-B0i199605-199708
***,MD.MOON MIST,TRIM1#
main79150-44021-B1i199708-199804
***,MEDIUM MOON MIST,TRIM1#
main79150-44022-B2i199804-199909
***,MEDIUM MOON MIST,TRIM1#
sub79150-44023¥66,100
main79150-44023-B4i199909
***,MD.MOON MIST,TRIM1#
main79150-44030-B0i199605-199708
***,MD.MOON MIST,TRIM1#
main79150-44031-B1i199708-199804
***,MEDIUM MOON MIST,TRIM1#
main79150-44032-B2i199804-199909
***,MEDIUM MOON MIST,TRIM1#
sub79150-44033¥67,500
main79150-44033-B3i199909
***,MD. MOON MIST,TRIM1#
main79150-44060-B0i199708-199804
***,MEDIUM MOON MIST,TRIM1#
main79150-44061-B1i199804-199909
***,MEDIUM MOON MIST,TRIM1#
sub79150-44062¥67,500
main79150-44062-B2i199909-200004
***,MD. MOON MIST,TRIM1#
main79150-44063-B2i200004
***,MD.MOON MIST,TRIM1#
main79150-44140-B0i199712-199804
main79150-44160-C0i199804
main79150-44190-E0i199806
main79150-44220-A0i199812-200004
main79150-44220-A0i199910-200004
main79150-44300-A0i200004-200009
main79150-44310-A0i200010-200104
9016740044
main90167-40044¥70

17 parts on this diagram · 9 diagrams in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
