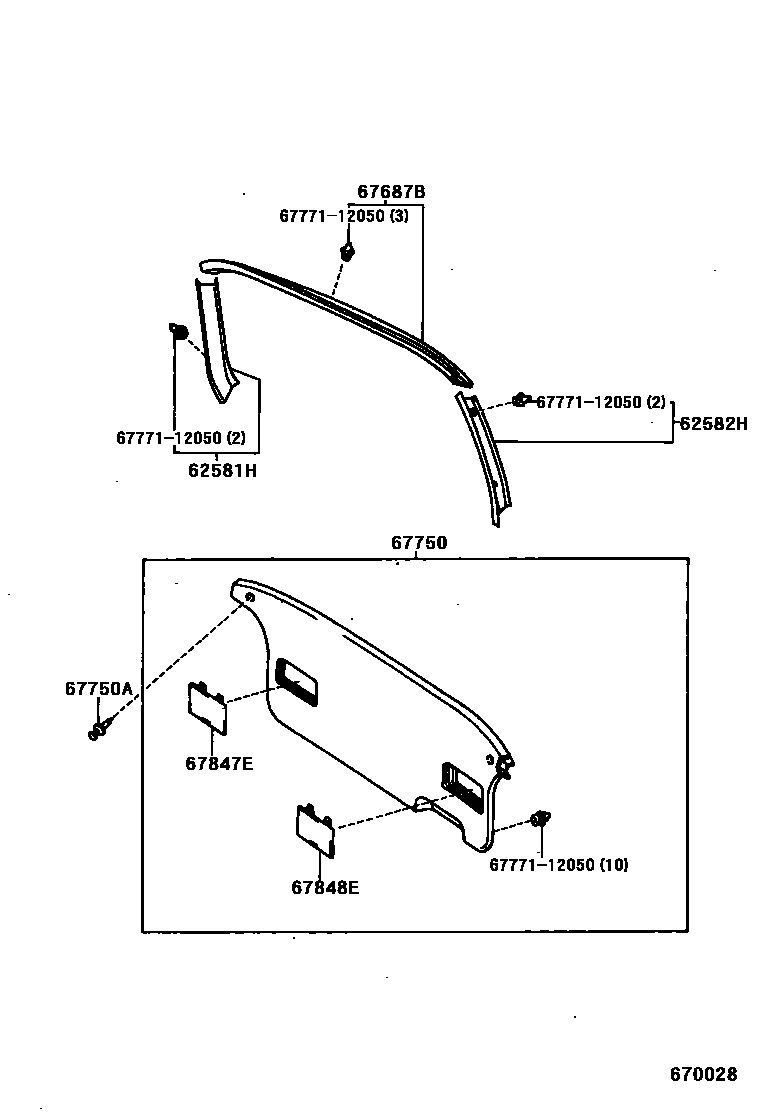

BACK DOOR PANEL & GLASS

0001 1 0002 1

62581HGARNISH, REAR WINDOW SIDE, RH

main62581-44010-A0iSXM1#..IPSUM199910-200004

sub62581-44010

main62581-44010-A0iSXM1#..IPSUM200004-200009

sub62581-44010

main62581-44010-A0iSXM1#..IPSUM200010-200104

sub62581-44010

main62581-44010-A0iSXM1#..IPSUM199806

sub62581-44010

main62581-44010-A0iSXM1#..IPSUM199812-200004

sub62581-44010

main62581-44010-B0iCXM10,SXM1#199605

MOON MIST,TRIM1#

sub62581-44010

62582HGARNISH, REAR WINDOW SIDE, LH

main62582-44010-A0iSXM1#..IPSUM199812-200004

sub62582-44010

main62582-44010-A0iSXM1#..IPSUM199910-200004

sub62582-44010

main62582-44010-A0iSXM1#..IPSUM200004-200009

sub62582-44010

main62582-44010-A0iSXM1#..IPSUM200010-200104

sub62582-44010

main62582-44010-A0iSXM1#..IPSUM199806

sub62582-44010

main62582-44010-B0iCXM10,SXM1#199605

MOON MIST,TRIM1#

sub62582-44010

67687BGARNISH, BACK WINDOW

main67687-44010-A0iSXM1#..IPSUM200004-200009

sub67687-44010

main67687-44010-A0iSXM1#..IPSUM199806

sub67687-44010

main67687-44010-A0iSXM1#..IPSUM199812-200004

sub67687-44010

main67687-44010-A0iSXM1#..IPSUM199910-200004

sub67687-44010

main67687-44010-B0iCXM10,SXM1#199605

MOON MIST,TRIM1#

sub67687-44010

67750BOARD ASSY, BACK DOOR TRIM

main67750-44010-A0iSXM1#..IPSUM200010-200104

main67750-44010-A0iSXM1#..IPSUM199812-200004

main67750-44010-A0iSXM1#..IPSUM199910-200004

main67750-44010-A0iSXM1#..IPSUM200004-200009

main67750-44010-A0iSXM1#..IPSUM199806

main67750-44010-B0iCXM10,SXM1#199605-200004

MD.MOON MIST,TRIM1#

main67750-44040-B0iSXM1#..ATG200004

MD.MOON MIST,TRIM1#

67750ACLIP(FOR BACK DOOR TRIM)

main90467-10191-A0iSXM1#..IPSUM199812-200004

sub90467-10191

main90467-10191-A0iSXM1#..IPSUM199910-200004

sub90467-10191

main90467-10191-A0iSXM1#..IPSUM200004-200009

sub90467-10191

main90467-10191-A0iSXM1#..IPSUM200010-200104

sub90467-10191

main90467-10191-A0iSXM1#..IPSUM199806

sub90467-10191

main90467-10191-B0iCXM10,SXM1#199605

MD.MOON MIST,TRIM1#

sub90467-10191

67847ECOVER, BACK DOOR SERVICE HOLE, RH

main67847-44010-A0iSXM1#..IPSUM199812-200004

main67847-44010-A0iSXM1#..IPSUM199910-200004

main67847-44010-A0iSXM1#..IPSUM200010-200104

main67847-44010-A0iSXM1#..IPSUM200004-200009

main67847-44010-A0iSXM1#..IPSUM199806

main67847-44010-B0iCXM10,SXM1#199605

MD.MOON MIST,TRIM1#

67848ECOVER, BACK DOOR SERVICE HOLE, LH

main67848-44010-A0iSXM1#..IPSUM199812-200004

main67848-44010-A0iSXM1#..IPSUM199910-200004

main67848-44010-A0iSXM1#..IPSUM200004-200009

main67848-44010-A0iSXM1#..IPSUM200010-200104

main67848-44010-A0iSXM1#..IPSUM199806

main67848-44010-B0iCXM10,SXM1#199605

MD.MOON MIST,TRIM1#

6777112050WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12050

8 parts on this diagram · 2 diagrams in section
