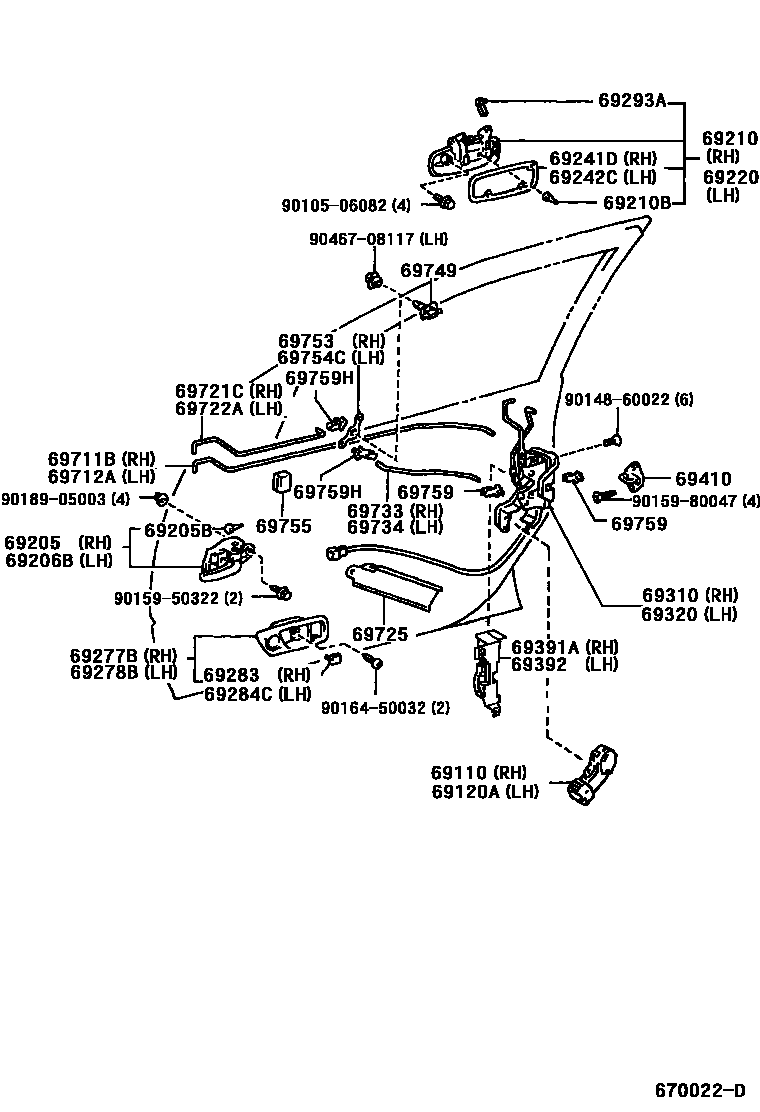

FRONT DOOR LOCK & HANDLE

0001 1 0002 1

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-44010iCXM10,SXM1#199605-199804

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-44010iCXM10,SXM1#199605-199804

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-30120-B3iCXM10,SXM1#199605-199804

MD.MOON MIST,TRIM1#

sub69205-30120

main69205-44010-A0iSXM1#..IPSUM200004-200009

sub69205-44010

main69205-44010-A0iSXM1#..IPSUM200010-200104

sub69205-44010

main69205-44010-A0iSXM1#..IPSUM199806

sub69205-44010

main69205-44010-A0iSXM1#..IPSUM199812-200004

sub69205-44010

main69205-44010-A0iSXM1#..IPSUM199910-200004

sub69205-44010

main69205-44010-B1iCXM10,SXM1#..E,IPSUM,L199804-200105

MD.MOON MIST,TRIM1#

sub69205-44010

main69205-44030iSXM1#..ATG200004-200105

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014iCXM10,SXM1#199605

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-30120-B3iCXM10,SXM1#199605-199804

MD.MOON MIST,TRIM1#

sub69206-30120

main69206-44010-A0iSXM1#..IPSUM199812-200004

main69206-44010-A0iSXM1#..IPSUM199910-200004

main69206-44010-A0iSXM1#..IPSUM200004-200009

main69206-44010-A0iSXM1#..IPSUM200010-200104

main69206-44010-A0iSXM1#..IPSUM199806

main69206-44010-B1iCXM10,SXM1#..E,IPSUM,L199804-200004

MD.MOON MIST,TRIM1#

main69206-44030iSXM1#..ATG200004

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-12200-A1iCXM10,SXM1#199708-199804

WHITE,056

sub69210-12290

main69210-12200-A1iSXM1#..IPSUM,L199612-199707

sub69210-12290

main69210-12200-A2iSXM1#..IPSUM,L199712-199804

sub69210-12290

main69210-12200-B3iCXM10,SXM1#..E,IPSUM,L199605-199804

SILVER ME,199

sub69210-12290

main69210-12200-C1iSXM1#..ATG199708-199804

BLACK,202

sub69210-12290

main69210-12200-D1iCXM10,SXM1#..E,IPSUM,L199605-199804

WINE RED MC,3J8

sub69210-12290

main69210-12200-G3iCXM10,SXM1#..E,IPSUM,L199605-199804

DK.GREEN M.M.,6N5

sub69210-12290

main69210-12200-G4iCXM10,SXM1#..E,IPSUM,L199605-199804

GREEN ME.OP.,6P4

sub69210-12290

main69210-12200-J4iCXM10,SXM1#..E,IPSUM,L199605-199804

DK.BLUE MM.GR.,8K5

sub69210-12290

main69210-12200-J5iCXM10,SXM1#..E,IPSUM,L199605-199804

PURPLISH BLUE M.M.,8K9

sub69210-12290

main69210-12200-K0iSXM10..E199605-199801

PURPLE M.M.OP.GR.,934

sub69210-12290

main69210-12290-A3iCXM10,SXM1#199804-199806

WHITE PM.,057

sub69210-12290

main69210-12290-B3iCXM10,SXM1#..E,IPSUM,L199804-199806

SILVER ME,199

sub69210-12290

main69210-12290-B3iCXM10,SXM1#..E,IPSUM,L199804-199806

sub69210-12290

main69210-12290-B7iSXM1#..IPSUM199806

sub69210-12290

main69210-12290-C0iSXM10..E199804-199806

sub69210-12290

main69210-12290-C1iSXM1#..ATG199804-199806

BLACK,202

sub69210-12290

main69210-12290-D3iCXM10,SXM1#..E,IPSUM,L199804-199806

WINE RED MC,3J8

sub69210-12290

main69210-12290-D5iSXM1#..IPSUM199806

sub69210-12290

main69210-12290-F2iSXM10..E199804-199806

sub69210-12290

main69210-12290-H1iCXM10,SXM1#..E,IPSUM,L199804-199806

DK.TURQUOISE MC.,760

sub69210-12290

main69210-12290-J5iCXM10,SXM1#..E,IPSUM,L199804-199806

DK.BLUE MM.GR.,8K5

sub69210-12290

main69210-12290-J6iCXM10,SXM1#..E,IPSUM,L199804-199806

BLUE ME.AMC.,8N2

sub69210-12290

main69210-12290-J8iSXM1#..IPSUM199806

sub69210-12290

main69210-44020-A1iCXM10,SXM1#199806

WHITE PM.,057

sub69210-12290

main69210-44020-A2iSXM1#..IPSUM199812-200004

sub69210-12290

main69210-44020-A2iSXM1#..IPSUM199910-200004

sub69210-12290

main69210-44020-A2iSXM1#..IPSUM200004-200009

sub69210-12290

main69210-44020-A2iSXM1#..IPSUM200010-200104

sub69210-12290

main69210-44020-B0iCXM10,SXM1#199806-200004

SILVER ME,199

sub69210-12290

main69210-44020-B0iSXM1#..IPSUM200004-200009

sub69210-12290

main69210-44020-B0iSXM10..E199806

sub69210-12290

main69210-44020-C0iSXM1#..ATG199806

BLACK,202

sub69210-12290

main69210-44020-C1iSXM10..E199806

sub69210-12290

main69210-44020-D0iCXM10,SXM1#..E,IPSUM,L199806

WINE RED MC,3J8

sub69210-12290

main69210-44020-F0iSXM10..E199806

sub69210-12290

main69210-44020-F1iSXM1#..IPSUM200010-200104

sub69210-12290

main69210-44020-H0iCXM10,SXM1#..E,IPSUM,L199806

DK.TURQUOISE MC.,760

sub69210-12290

main69210-44020-H1iCXM10,SXM1#..E,IPSUM,L200004

TURQUOISE ME.,765

sub69210-12290

main69210-44020-J0iCXM10,SXM1#..E,IPSUM,L199806

DK.BLUE MM.GR.,8K5

sub69210-12290

main69210-44020-J1iCXM10,SXM1#..E,IPSUM,L199806-200004

BLUE ME.AMC.,8N2

sub69210-12290

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04018iCXM10,SXM1#199605

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-12190-A1iSXM1#..IPSUM,L199612-199707

sub69220-12290

sub69220-12190

main69220-12190-A1iCXM10,SXM1#199708-199804

WHITE,056

sub69220-12290

sub69220-12190

main69220-12190-A2iSXM1#..IPSUM,L199712-199804

sub69220-12290

sub69220-12190

main69220-12190-B3iCXM10,SXM1#..E,IPSUM,L199605-199804

SILVER ME,199

sub69220-12290

sub69220-12190

main69220-12190-C1iSXM1#..ATG199708-199804

BLACK,202

sub69220-12290

sub69220-12190

main69220-12190-D1iCXM10,SXM1#..E,IPSUM,L199605-199804

WINE RED MC,3J8

sub69220-12290

sub69220-12190

main69220-12190-G3iCXM10,SXM1#..E,IPSUM,L199605-199804

DK.GREEN M.M.,6N5

sub69220-12290

sub69220-12190

main69220-12190-G4iCXM10,SXM1#..E,IPSUM,L199605-199804

GREEN ME.OP.,6P4

sub69220-12290

sub69220-12190

main69220-12190-J4iCXM10,SXM1#..E,IPSUM,L199605-199804

DK.BLUE MM.GR.,8K5

sub69220-12290

sub69220-12190

main69220-12190-J5iCXM10,SXM1#..E,IPSUM,L199605-199804

PURPLISH BLUE M.M.,8K9

sub69220-12290

sub69220-12190

main69220-12190-K0iSXM1#199605-199801

PURPLE M.M.OP.GR.,934

sub69220-12290

sub69220-12190

main69220-12290-A3iCXM10,SXM1#199804-199806

WHITE PM.,057

sub69220-12290

main69220-12290-B3iSXM10..E199804-199806

sub69220-12290

main69220-12290-B3iSXM10..E199804-199806

SILVER ME,199

sub69220-12290

main69220-12290-B6iSXM1#..IPSUM199806

sub69220-12290

main69220-12290-C0iSXM10..E199804-199806

sub69220-12290

main69220-12290-C1iSXM1#..ATG199804-199806

BLACK,202

sub69220-12290

main69220-12290-D3iCXM10,SXM1#..E,IPSUM,L199804-199806

WINE RED MC,3J8

sub69220-12290

main69220-12290-D5iSXM1#..IPSUM199806

sub69220-12290

main69220-12290-F2iSXM10..E199804-199806

sub69220-12290

main69220-12290-H1iCXM10,SXM1#..E,IPSUM,L199804-199806

DK.TURQUOISE MC.,760

sub69220-12290

main69220-12290-J5iCXM10,SXM1#..E,IPSUM,L199804-199806

DK.BLUE MM.GR.,8K5

sub69220-12290

main69220-12290-J6iCXM10,SXM1#..E,IPSUM,L199804-199806

BLUE ME.AMC.,8N2

sub69220-12290

main69220-12290-J8iSXM1#..IPSUM199806

sub69220-12290

main69220-44020-A1iCXM10,SXM1#199806

WHITE PM.,057

sub69220-12290

sub69220-44020

main69220-44020-A2iSXM1#..IPSUM200010-200104

sub69220-12290

sub69220-44020

main69220-44020-A2iSXM1#..IPSUM199812-200004

sub69220-12290

sub69220-44020

main69220-44020-A2iSXM1#..IPSUM199910-200004

sub69220-12290

sub69220-44020

main69220-44020-A2iSXM1#..IPSUM200004-200009

sub69220-12290

sub69220-44020

main69220-44020-B0iSXM1#..IPSUM200004-200009

sub69220-12290

sub69220-44020

main69220-44020-B0iCXM10,SXM1#..E,IPSUM,L199806-200004

SILVER ME,199

sub69220-12290

sub69220-44020

main69220-44020-B0iSXM10..E199806

sub69220-12290

sub69220-44020

main69220-44020-C0iSXM1#..ATG199806

BLACK,202

sub69220-12290

sub69220-44020

main69220-44020-C1iSXM10..E199806

sub69220-12290

sub69220-44020

main69220-44020-D0iCXM10,SXM1#..E,IPSUM,L199806

WINE RED MC,3J8

sub69220-12290

sub69220-44020

main69220-44020-F0iSXM10..E199806

sub69220-12290

sub69220-44020

main69220-44020-F1iSXM1#..IPSUM200010-200104

sub69220-12290

sub69220-44020

main69220-44020-H0iCXM10,SXM1#..E,IPSUM,L199806

DK.TURQUOISE MC.,760

sub69220-12290

sub69220-44020

main69220-44020-H1iCXM10,SXM1#..E,IPSUM,L200004

TURQUOISE ME.,765

sub69220-12290

sub69220-44020

main69220-44020-J0iCXM10,SXM1#..E,IPSUM,L199806

DK.BLUE MM.GR.,8K5

sub69220-12290

sub69220-44020

main69220-44020-J1iCXM10,SXM1#..E,IPSUM,L199806-200004

BLUE ME.AMC.,8N2

sub69220-12290

sub69220-44020

69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH

main69241-12100iCXM10,SXM1#199605

69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH

main69242-12050iCXM10,SXM1#199605

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-30150-A0iSXM1#..IPSUM200004-200009

sub69277-30150

main69277-30150-A0iSXM1#..IPSUM199910-200004

sub69277-30150

main69277-30150-A0iSXM1#..IPSUM200010-200104

sub69277-30150

main69277-30150-A0iSXM1#..IPSUM199812-200004

sub69277-30150

main69277-30150-A0iSXM1#..IPSUM199806

sub69277-30150

main69277-30150-B2iCXM10,SXM1#..E,IPSUM,L199605-200004

MD.MOON MIST,TRIM1#

sub69277-30150

main69277-44010-A0iSXM1#..IPSUM199812-200004

main69277-44010-A0iSXM1#..IPSUM199910-200004

main69277-44010-A0iSXM1#..IPSUM200004-200009

main69277-44010-A0iSXM1#..IPSUM200010-200104

main69277-44010-A0iSXM1#..IPSUM199806

main69277-44010-B0iCXM10,SXM1#199605-200004

main69277-44060iSXM1#..ATG200004

main69277-44070iSXM1#..ATG200004

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-30080-A0iSXM1#..IPSUM200004-200009

sub69278-30080

main69278-30080-A0iSXM1#..IPSUM199812-200004

sub69278-30080

main69278-30080-A0iSXM1#..IPSUM199910-200004

sub69278-30080

main69278-30080-A0iSXM1#..IPSUM200010-200104

sub69278-30080

main69278-30080-A0iSXM1#..IPSUM199806

sub69278-30080

main69278-30080-B2iCXM10,SXM1#199605-200004

MD.MOON MIST,TRIM1#

sub69278-30080

main69278-44010-A0iSXM1#..IPSUM200004-200009

main69278-44010-A0iSXM1#..IPSUM199910-200004

main69278-44010-A0iSXM1#..IPSUM200010-200104

main69278-44010-A0iSXM1#..IPSUM199812-200004

main69278-44010-A0iSXM1#..IPSUM199806

main69278-44010-B0iCXM10,SXM1#..E,IPSUM,L199605-200004

main69278-44060iSXM1#..ATG200004

main69278-44070iSXM1#..ATG200004

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-30040-A1iSXM1#..IPSUM200010-200104

sub69283-30040

main69283-30040-A1iSXM1#..IPSUM199812-200004

sub69283-30040

main69283-30040-A1iSXM1#..IPSUM199910-200004

sub69283-30040

main69283-30040-A1iSXM1#..IPSUM200004-200009

sub69283-30040

main69283-30040-A1iSXM1#..IPSUM199806

sub69283-30040

main69283-30040-B2iCXM10,SXM1#..E,IPSUM,L199605-200004

MD.MOON MIST,TRIM1#

sub69283-30040

main69283-44030iSXM1#..ATG200004

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69283-30040-A1iSXM1#..IPSUM200010-200104

sub69283-30040

main69283-30040-A1iSXM1#..IPSUM200004-200009

sub69283-30040

main69283-30040-A1iSXM1#..IPSUM199806

sub69283-30040

main69283-30040-B2iCXM10,SXM1#..E,IPSUM199605-200004

sub69283-30040

main69283-30040-B2iCXM10,SXM1#..L199605

MD.MOON MIST,TRIM1#

sub69283-30040

main69283-44030iSXM1#..ATG200004

main69284-30040-A1iSXM1#..IPSUM199910-200004

sub69284-30040

main69284-30040-A1iSXM1#..IPSUM200010-200104

sub69284-30040

main69284-30040-A1iSXM1#..IPSUM199806

sub69284-30040

main69284-30040-A1iSXM1#..IPSUM199812-200004

sub69284-30040

main69284-30040-A1iSXM1#..IPSUM200004-200009

sub69284-30040

main69284-30040-B2iCXM10,SXM1#..L199605

sub69284-30040

main69284-30040-B2iCXM10,SXM1#..ATG,E,IPSUM199605-200004

MD.MOON MIST,TRIM1#

sub69284-30040

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iCXM10,SXM1#199605

main69293-12040iCXM10,SXM1#199605

69310LOCK ASSY, FRONT DOOR, RH

main69030-44040iCXM10,SXM1#199804-200105

main69310-44010iCXM10,SXM1#199605-199804

69320LOCK ASSY, FRONT DOOR, LH

main69040-44040iCXM10,SXM1#199804-200105

main69320-44010iCXM10,SXM1#199605-199804

69391ACOVER, FRONT DOOR LOCK, OUTER RH

main69391-44010iCXM10,SXM1#199605-199804

69392COVER, FRONT DOOR LOCK, OUTER LH

main69392-44010iCXM10,SXM1#199605-199804

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110iCXM10,SXM1#199804

main69410-87001iCXM10,SXM1#199605-199804

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-44010iCXM10,SXM1#199605-199804

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-44010iCXM10,SXM1#199605-199804

69721CLINK, FRONT DOOR INSIDE LOCKING, NO.3 RH

main69721-44010iCXM10,SXM1#199605-199804

69722ALINK, FRONT DOOR INSIDE LOCKING, NO.3 LH

main69722-44010iCXM10,SXM1#199605-199804

69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH

main69725-44010iCXM10,SXM1#199605-199804

69733LINK, FRONT DOOR INSIDE LOCKING, RH

main69733-44010iCXM10,SXM1#199605-199804

69734LINK, FRONT DOOR INSIDE LOCKING, LH

main69734-44010iCXM10,SXM1#199605-199804

69749CLAMP, FRONT DOOR LOCK LINK

main69749-30050iCXM10,SXM1#199804

main69749-32030iCXM10,SXM1#199605-199804

69753BELLCRANK, DOOR LOCK CONTROL, RH

main69753-20070iCXM10,SXM1#199605-199804

69754CBELLCRANK, DOOR LOCK CONTROL, LH

main69753-20070iCXM10,SXM1#199605-199804

69755SILENCER, FRONT DOOR LOCK LINK

main69759-20390iCXM10,SXM1#199605-199804

main69759-44030iCXM10,SXM1#199804

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-24010iSXM1#199605-199612

main69759-24020iSXM1#199605-199612

main69759-24050iCXM10,SXM1#199605-199804

main69759-24060iSXM1#199605-199804

main69759-24080iCXM10,SXM1#199612-199804

main69759-24090iCXM10,SXM1#199612-199804

69759HSNAP, DOOR LOCK CONTROL LINK, NO.2

main69759-20380iCXM10,SXM1#199605-199804

main69759-24030iCXM10,SXM1#199605-199804

9010506082

main90105-06082

9014860022

main90148-60022

9015950322

main90159-50322

9015980047

main90159-80047

9016450032

main90164-50032

9018905003

main90189-05003

9046708117

main90467-08117

40 parts on this diagram · 2 diagrams in section
