CONSOLE BOX & BRACKET

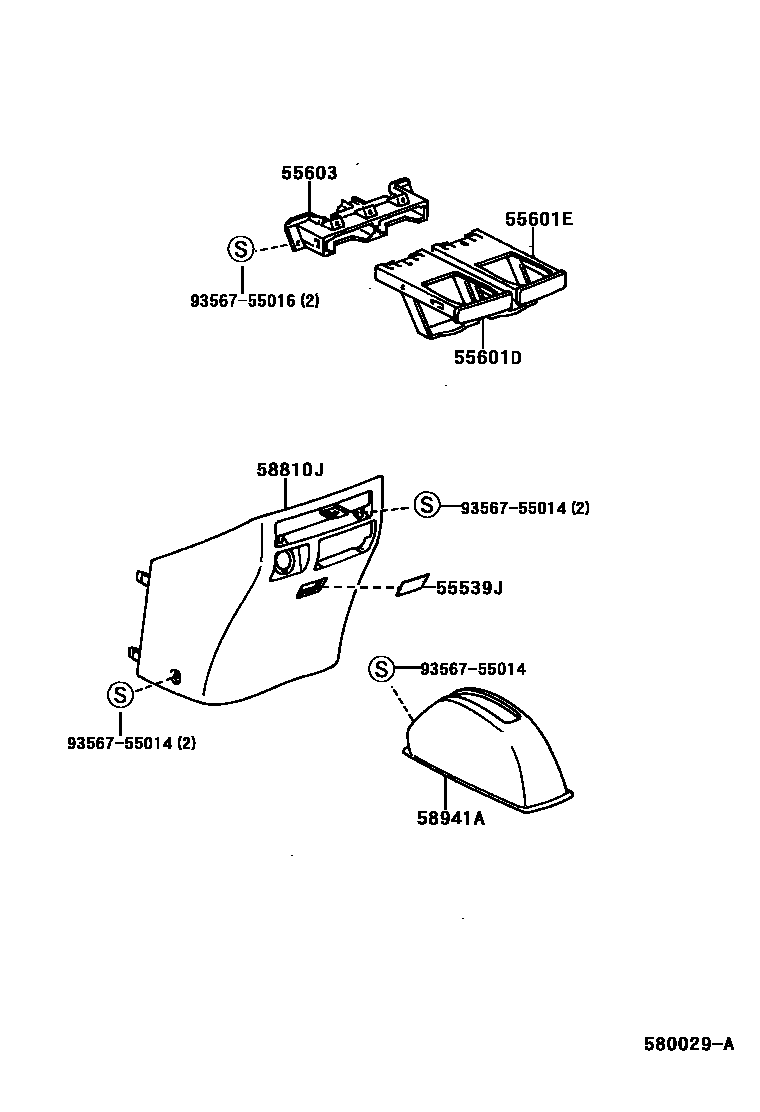

Parts diagram

55539JCOVER, SPARE SWITCH HOLE

main55539-12130-B2i199605

MD.MOON MIST,TRIM1#

main55539-12130-B4i200004-200009

main55539-12130-B4i199812-200004

main55539-12130-B4i199806

main55539-12130-B4i199910-200004

55601DTRAY SUB-ASSY, INSTRUMENT PANEL UNDER, LH

main55601-44010-B0i199605

MD.MOON MIST,TRIM1#

main55601-44010-B1i200010-200104

main55601-44010-B1i199812-200004

main55601-44010-B1i199910-200004

main55601-44010-B1i200004-200009

main55601-44010-B1i199806

55601ETRAY SUB-ASSY, INSTRUMENT PANEL UNDER, RH

main55601-44030-B0i199605

MD.MOON MIST,TRIM1#

main55601-44030-B1i199812-200004

main55601-44030-B1i199910-200004

main55601-44030-B1i200004-200009

main55601-44030-B1i200010-200104

main55601-44030-B1i199806

55603CASE SUB-ASSY, INSTRUMENT PANEL CUP HOLDER

main55603-44010i199605

58810JBOX ASSY, CONSOLE

main58810-44010-B0i199605

MD.MOON MIST,TRIM1#

main58810-44010-B1i199910-200004

main58810-44010-B1i199812-200004

main58810-44010-B1i200004-200009

main58810-44010-B1i200010-200104

main58810-44010-B1i199806

main58810-44050-B0i199605

main58810-44050-B1i200004-200009

main58810-44050-B1i199812-200004

main58810-44050-B1i199910-200004

main58810-44050-B1i200010-200104

58941ACOVER, PARKING BRAKE HOLE

main58904-44010-A0i199806

main58904-44010-A0i200004-200009

main58904-44010-A0i199812-200004

main58904-44010-A0i199910-200004

main58904-44010-B0i199605

MD.MOON MIST,TRIM1#

main58904-44010-C0i199804-199812

9356755014

main93567-55014

9356755016

main93567-55016

8 parts on this diagram · 1 diagram in section
