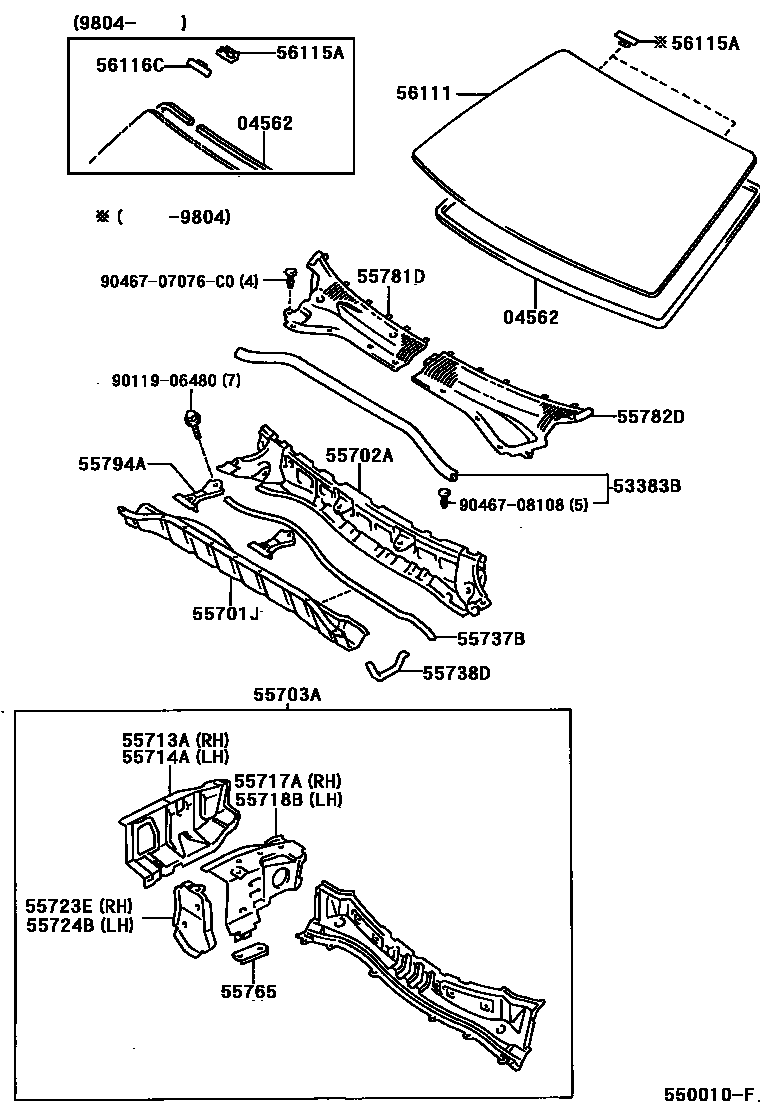

COWL PANEL & WINDSHIELD GLASS
04562DAM KIT, WINDSHIELD GLASS
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55702APANEL SUB-ASSY, COWL TOP, OUTER FRONT
sub55702-44020
55703APANEL SUB-ASSY, COWL TOP, INNER
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55717APANEL, COWL TOP SIDE, INNER RH
55718BPANEL, COWL TOP SIDE, INNER LH
55723EGUSSET, FRONT PANEL, RH
55724BGUSSET, FRONT PANEL, LH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
sub55737-48010
55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
55765BRACKET, HOOD DAMPER MOUNTING
55794ABRACKET, WEATHERSTRIP WIPER PIVOT GUIDE, NO.2
56111GLASS, WINDSHIELD
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
9011906480
main90119-06480
9046707076C0
main90467-07076C0
9046708108
main90467-08108
23 parts on this diagram · 1 diagram in section
