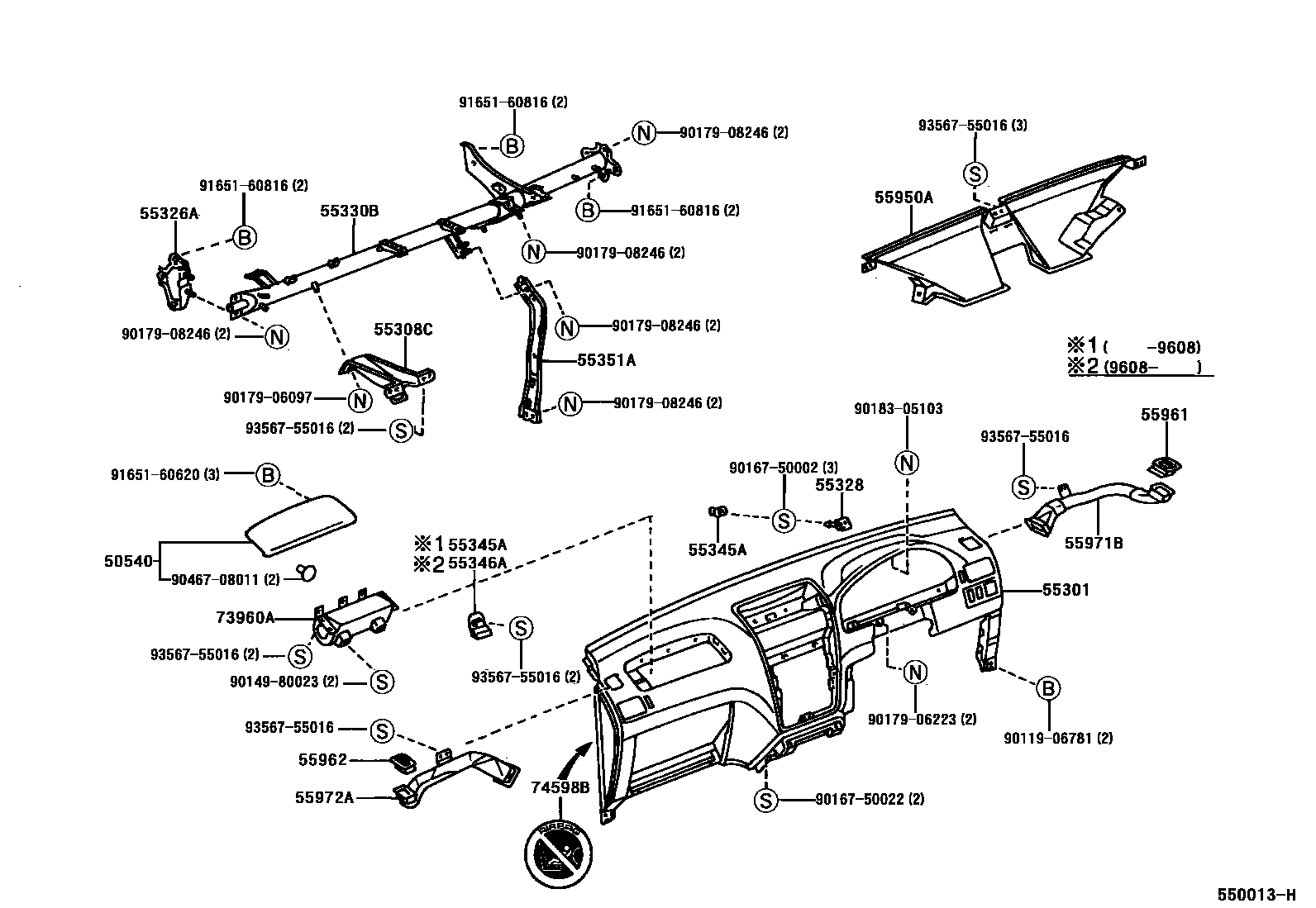

INSTRUMENT PANEL & GLOVE COMPARTMENT
50540DO0R ASSY, AIRBAG PASSENGER
sub50540-44011
sub50540-44011
sub50540-44011
sub50540-44011
sub50540-44011
55301PANEL SUB-ASSY, INSTRUMENT
MD.MOON MIST,TRIM1#
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55326ASTAY, INSTRUMENT PANEL, NO.1
55328PIN, INSTRUMENT PANEL, NO.1
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55345ACLIP, INSTRUMENT PANEL, NO.1
55346ACLIP, INSTRUMENT PANEL, NO.2
55351ABRACE, INSTRUMENT PANEL TO FLOOR
55950ANOZZLE ASSY, DEFROSTER
55961NOZZLE, SIDE DEFROSTER, NO.1
sub55961-44010
sub55961-44010
sub55961-44010
sub55961-44010
sub55961-44010
55962NOZZLE, SIDE DEFROSTER, NO.2
sub55962-44010
sub55962-44010
sub55962-44010
sub55962-44010
sub55962-44010
55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1
55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
74598BLABEL, PASSENGER AIRBAG CAUTION
9011906781
main90119-06781
9014980023
main90149-80023
9016750002
main90167-50002
9016750022
main90167-50022
9017906097
main90179-06097
9017906223
main90179-06223
9017908246
main90179-08246
9018305103
main90183-05103
9046708011
main90467-08011
9165160620
main91651-60620
9165160816
main91651-60816
9356755016
main93567-55016
28 parts on this diagram · 3 diagrams in section
