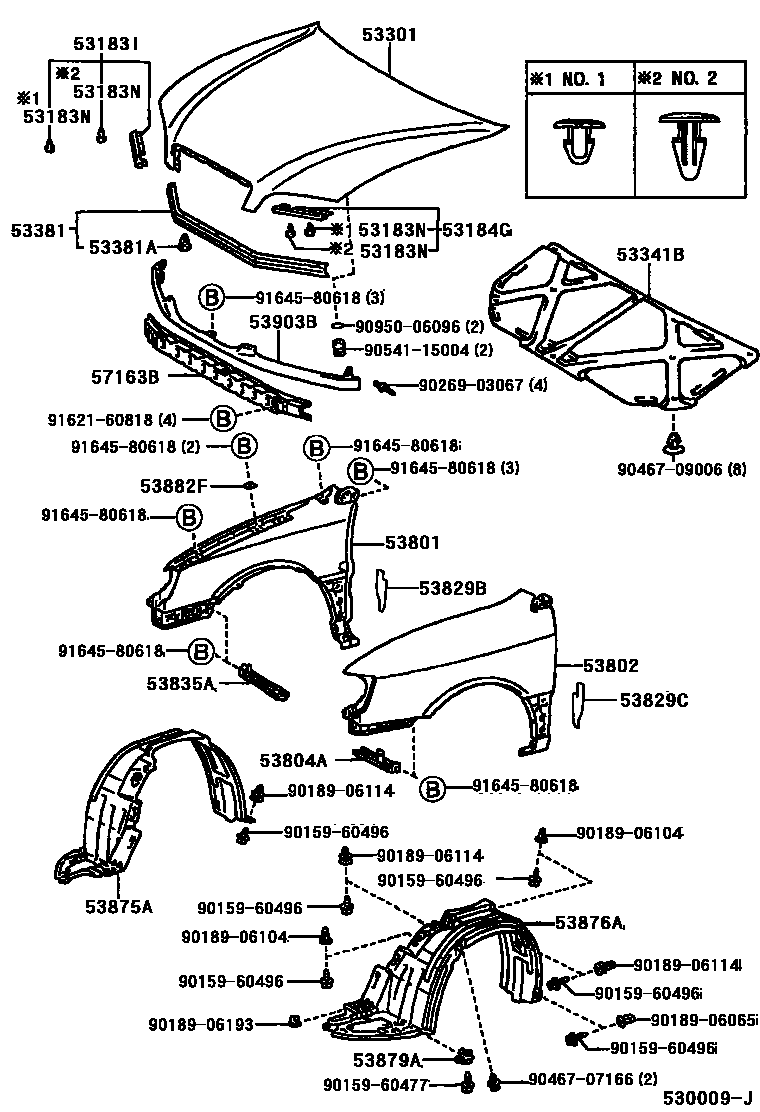

HOOD & FRONT FENDER

53183ISEAL, HEADLAMP COVER, RH

main53183-44010iCXM10,SXM1#199605

53183NCLIP(FOR HEADLAMP COVER SEAL)

main90467-08028iSXM1#199605-199607

main90467-08028iCXM10,SXM1#199607

main90467-08033iCXM10,SXM1#199607

53184GSEAL, HEADLAMP COVER, LH

main53184-44010iCXM10,SXM1#199605

53301HOOD SUB-ASSY

main53301-44010iCXM10,SXM1#199605

53341BINSULATOR, HOOD

main53341-44010iCXM10199709

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-44010iCXM10,SXM1#199605

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iCXM10,SXM1#199605

53801FENDER SUB-ASSY, FRONT RH

main53801-44010iCXM10,SXM1#199605

53802FENDER SUB-ASSY, FRONT LH

main53802-44010iCXM10,SXM1#199605

53804ABRACKET SUB-ASSY, FRONT SIDE PANEL, LH

main53804-20020iCXM10,SXM1#199605

53829BPROTECTOR, FRONT FENDER, LOWER RH

main53829-44010iCXM10,SXM1#199805

53829CPROTECTOR, FRONT FENDER, LOWER LH

main53839-44010iCXM10,SXM1#199805

53835ABRACE, FRONT FENDER TO APRON, RH

main53835-20070iCXM10,SXM1#199605

53875ALINER, FRONT FENDER, RH

main53875-44010iCXM10,SXM1#199605

53876ALINER, FRONT FENDER, LH

main53876-44010iCXM10,SXM1#199605

53879ARETAINER, FRONT FENDER LINER

main53879-16010iCXM10,SXM1#199605-199804

main90467-04023iCXM10,SXM1#199804

53882FSEAL, FRONT FENDER

main53882-16030iCXM10,SXM1#199605

53903BPANEL SUB-ASSY, FRONT END

main53903-44010iCXM10,SXM1#199605

57163BREINFORCEMENT, FRONT CROSSMEMBER

main57163-44010iCXM10,SXM1#199605

9015960477

main90159-60477

9015960496

main90159-60496

9018906065

main90189-06065

9018906104

main90189-06104

9018906114

main90189-06114

9018906193

main90189-06193

9026903067

main90269-03067

9046707166

main90467-07166

9046709006

main90467-09006

9054115004

main90541-15004

9095006096

main90950-06096

9162160818

main91621-60818

9164580618

main91645-80618

32 parts on this diagram · 1 diagram in section
