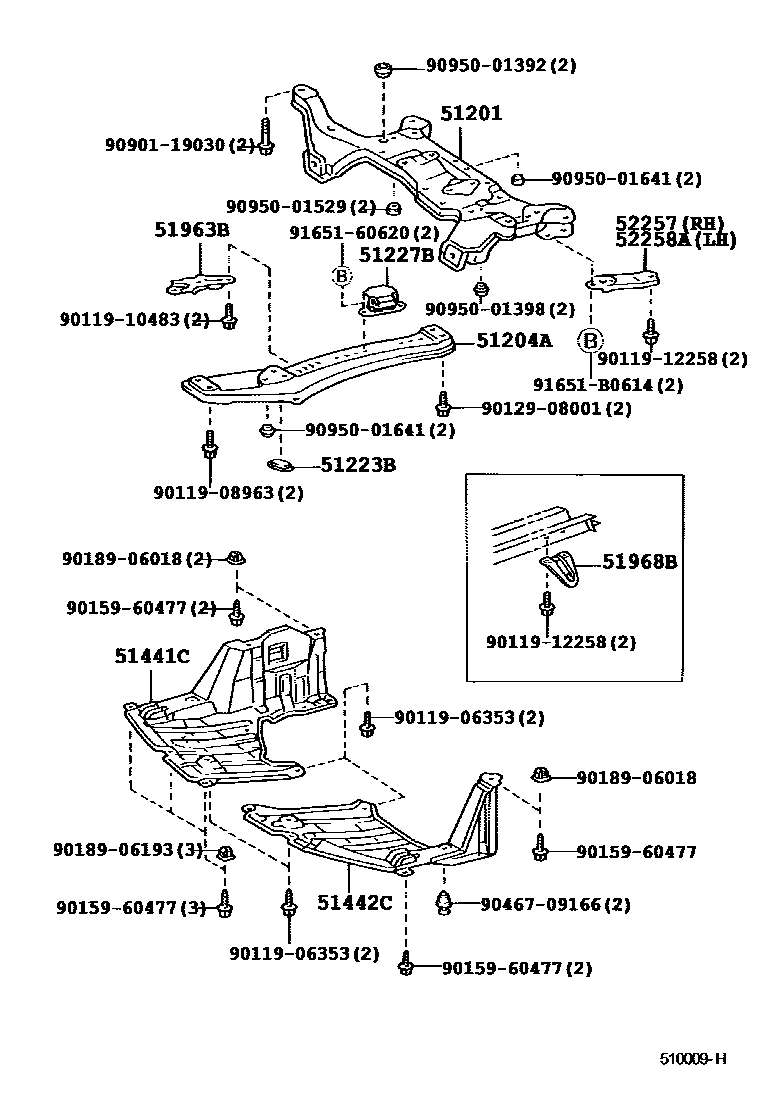

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-20290iSXM15199605

main51201-20320iCXM10,SXM10199605

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-20110iCXM10,SXM10199605-199805

sub51204-20111

main51204-20111iCXM10,SXM10199805

main51204-20121iSXM15199605

51223BCOVER, ENGINE MOUNTING HOLE

main51223-20050iCXM10,SXM1#199605

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-44010iCXM10199805

51441CCOVER, ENGINE UNDER, RH

main51441-20380iSXM1#199605

main51441-44010iCXM10199709

51442CCOVER, ENGINE UNDER, LH

main51442-20450iSXM1#199605

main51442-44010iCXM10199709

51963BHOOK, TRANSPORT, FRONT RH

main51963-20130iSXM1#199605

main51963-44010iCXM10199709

51968BHOOK, TRANSPORT, REAR LH

main51096-44010iSXM1#..ATG199708

main51968-44010iCXM10,SXM1#..E,IPSUM,L199605

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-44010iCXM10,SXM10199605

main52257-44020iSXM15199605

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-44010iCXM10,SXM10199605

main52258-44020iSXM15199605

9011906353

main90119-06353

9011908963

main90119-08963

9011910483

main90119-10483

9011912258

main90119-12258

9012908001

main90129-08001

9015960477

main90159-60477

9018906018

main90189-06018

9018906193

main90189-06193

9046709166

main90467-09166

9090119030

main90901-19030

9095001392

main90950-01392

9095001398

main90950-01398

9095001529

main90950-01529

9095001641

main90950-01641

9165160620

main91651-60620

91651B0614

main91651-B0614

26 parts on this diagram · 2 diagrams in section
