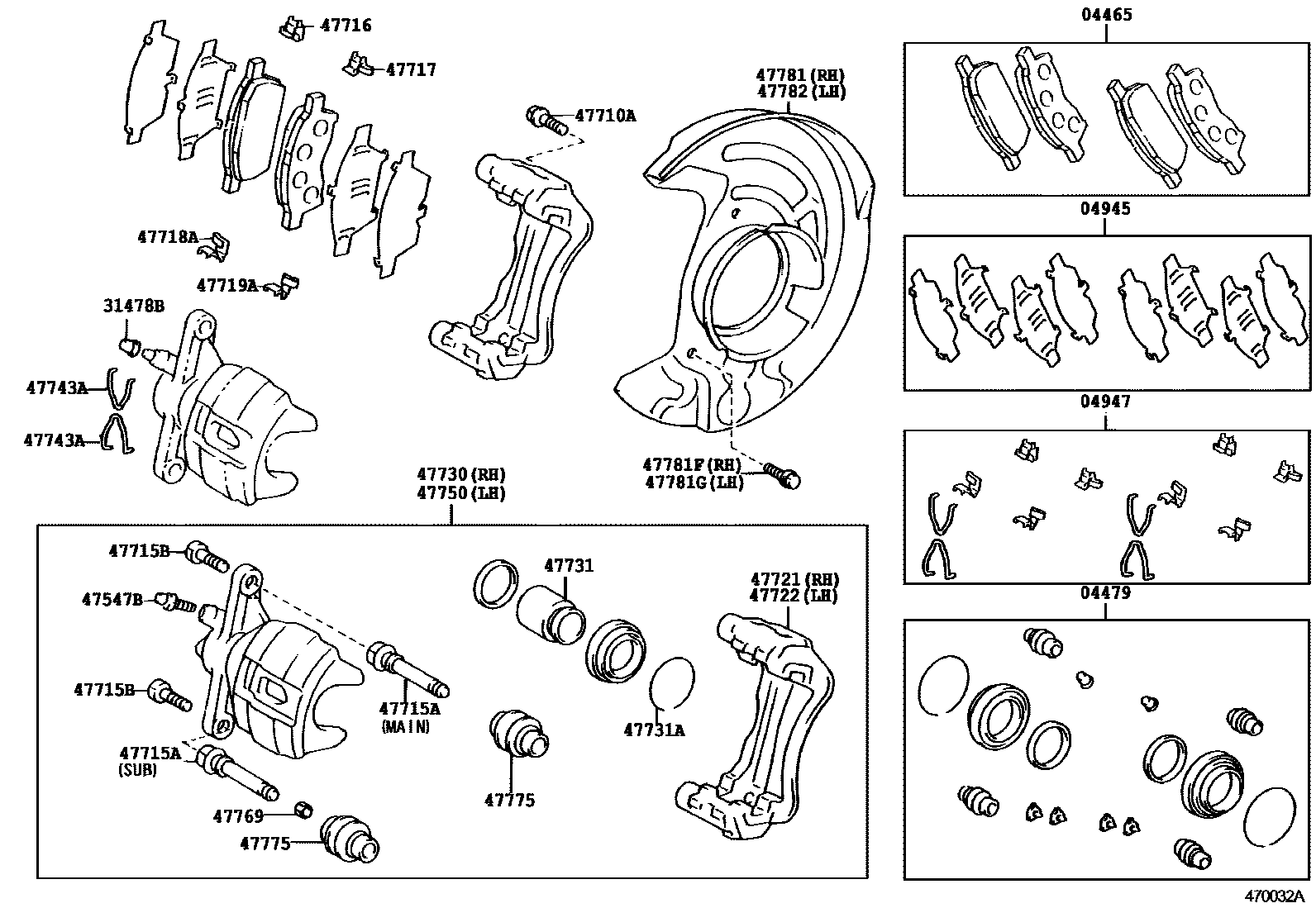

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-44030iCXM10,SXM1#199605-200105

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-44010iCXM10,SXM1#199605-200104

sub04479-44040

main04479-44040iCXM10,SXM1#200104-200105

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-33030iSXM1#199605-199607

main04945-44010iCXM10,SXM1#199607-200105

04947FITTING KIT, DISC BRAKE, FRONT

main04947-33040iCXM10,SXM1#199605-200105

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iCXM10,SXM1#199605-200105

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030iCXM10,SXM1#199605-200105

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iCXM10,SXM1#199605-200105

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22070iCXM10,SXM1#199605-200105

main47715-22080iCXM10,SXM1#199605-200105

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164iCXM10,SXM1#199605-200105

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-33010iCXM10,SXM1#199605-200105

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-33020iCXM10,SXM1#199605-200105

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47717-33010iCXM10,SXM1#199605-200105

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47717-33020iCXM10,SXM1#199605-200105

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-44010iCXM10,SXM1#199605-200105

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-44010iCXM10,SXM1#199605-200105

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-44010iCXM10,SXM1#199605-200105

47731PISTON, FRONT DISC BRAKE

main47731-44010iCXM10,SXM1#199605-200105

sub47731-33010

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-66001iCXM10,SXM1#199605-200105

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-50030iCXM10,SXM1#199605-200105

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-44010iCXM10,SXM1#199605-200105

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iCXM10,SXM1#199605-200105

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30070iCXM10,SXM1#199605-200105

sub47775-50010

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-33010iCXM10,SXM1#199605

47781FBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90119-06227iCXM10,SXM1#199605

47781GBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90119-06227iCXM10,SXM1#199605

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-33010iCXM10,SXM1#199605

26 parts on this diagram · 1 diagram in section
