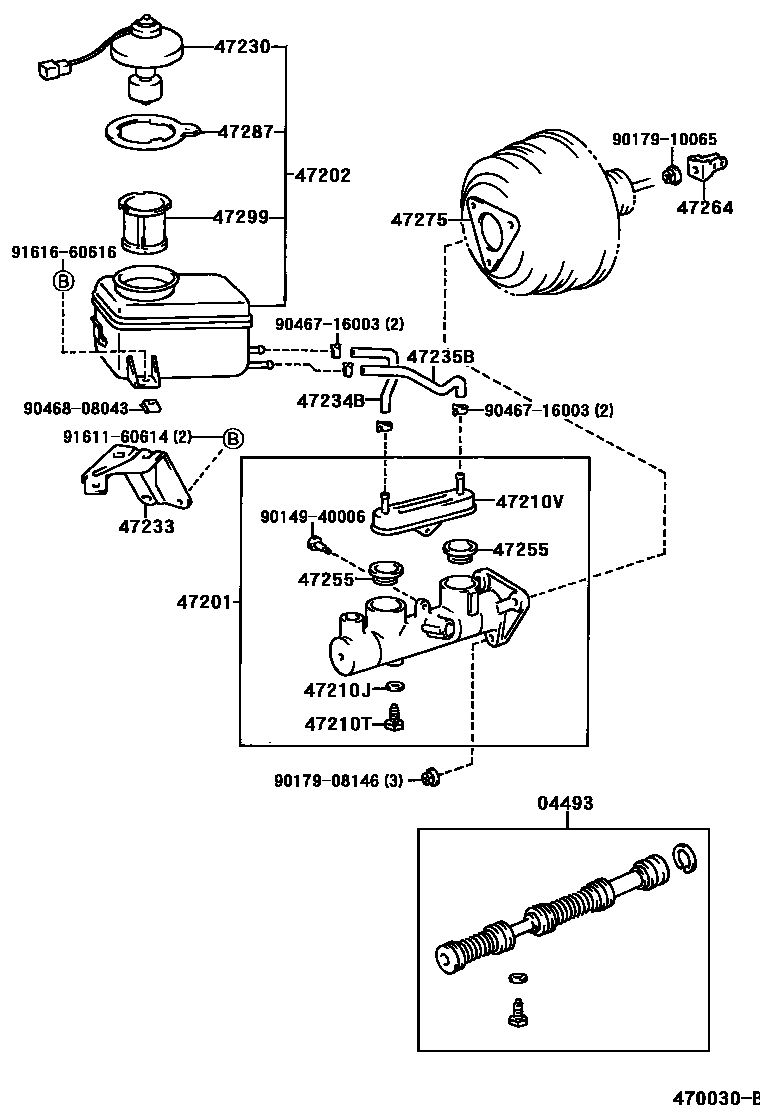

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-2B010iSXM15199804

main04493-32090iSXM1#199605-199708

main04493-44010iCXM10,SXM1#199708-199804

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-44020iSXM1#199605-199708

sub47201-44021

main47201-44021iCXM10,SXM1#199708-199804

main47201-44070iSXM15199804

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-44020iCXM10,SXM1#199605

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iCXM10,SXM1#199605

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iCXM10,SXM1#199605

47210VUNION(FOR BRAKE MASTER CYLINDER)

main90029-40011iCXM10,SXM1#199605

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main84460-30040iCXM10,SXM1#199605

47233BRACKET, RESERVOIR

main47233-44010iCXM10,SXM1#199605

47234BTUBE, RESERVOIR, NO.1

main47234-44010iSXM1#199605

main47234-44030iCXM10199709

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-44010iSXM1#199605

main47235-44030iCXM10199709

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iCXM10,SXM1#199605

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-28010iCXM10,SXM1#199605

47275GASKET, BRAKE MASTER CYLINDER

main47275-32010iCXM10,SXM1#199605

47287LABEL, BRAKE FLUID INFORMATION

main47287-20020iCXM10,SXM1#199605

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-32010iCXM10,SXM1#199605

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

9046716003

main90467-16003

9046808043

main90468-08043

9161160614

main91611-60614

9161660616

main91616-60616

22 parts on this diagram · 1 diagram in section
