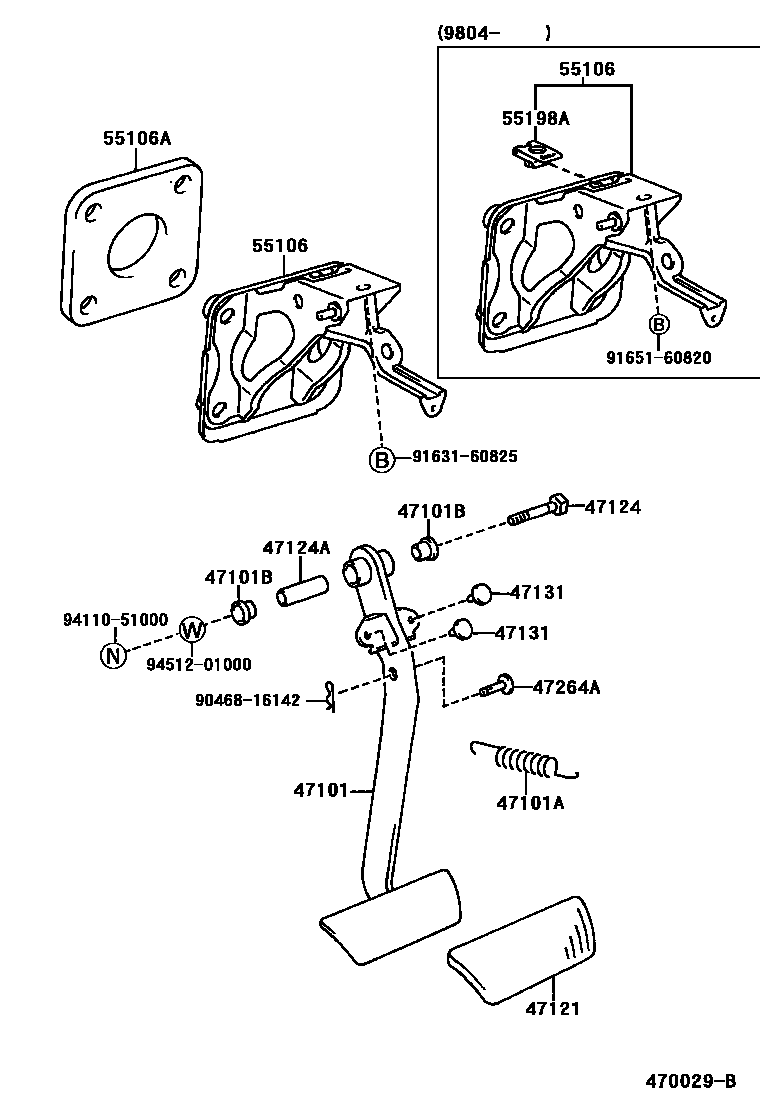

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-44010iCXM10,SXM1#199605-199804

main47101-44060iCXM10,SXM1#199804

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90905-06025iCXM10,SXM1#199605

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iCXM10,SXM1#199605

47121PAD, BRAKE PEDAL

main47121-14010iCXM10,SXM1#199605

47124SHAFT, BRAKE PEDAL

main90101-10164iCXM10,SXM1#199605

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iCXM10,SXM1#199605

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iCXM10,SXM1#199605

47264APIN(FOR PUSH ROD)

main90249-10064iCXM10,SXM1#199605

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-44010iCXM10,SXM1#199605-199804

main55106-44030iCXM10,SXM1#199804

55106ASEAL, DASH PANEL

main55259-20010iCXM10,SXM1#199605

55198AHOLDER, BRAKE AWAY MOUNTING BOLT

main55198-13010iCXM10,SXM1#199804

9046816142

main90468-16142

9163160825

main91631-60825

9165160820

main91651-60820

9411051000

main94110-51000

9451201000

main94512-01000

16 parts on this diagram · 1 diagram in section
