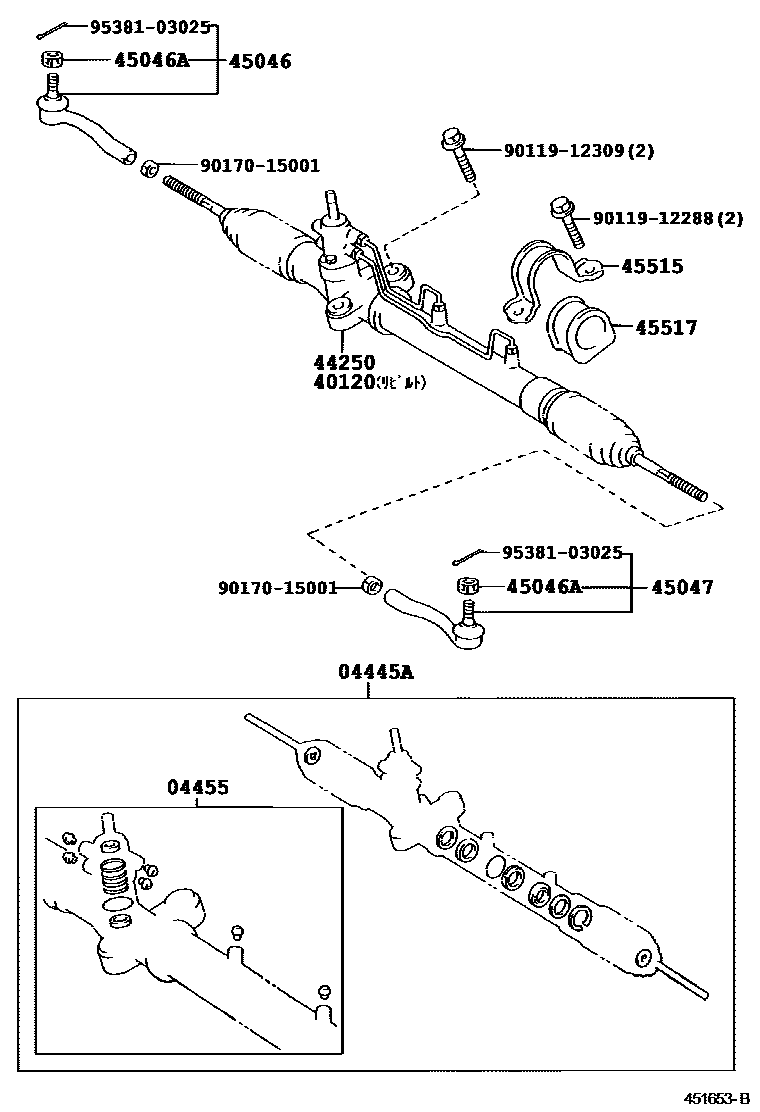

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1�����������

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-20161iSXM15199605-200105

main04445-20161iSXM10..IPSUM,L199708-200105

main04445-20210iCXM10,SXM10199605-200105

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-20080iCXM10,SXM10199605-200105

main04455-20120iSXM15199605-200105

main04455-20120iSXM10..IPSUM,L199708-200105

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-44010iSXM10199605-200105

sub40120-44050

main40120-44020iSXM15199605-199804

main40120-44050iCXM10199709-200105

main40120-44060iSXM10..IPSUM,L199708-199804

main40120-44060iSXM10..IPSUM,L199804-200105

main40120-44070iSXM15..IPSUM,L199708-199804

main40120-44080iSXM15199804-200105

main40120-44090iSXM15..IPSUM,L199804-200105

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-44010iSXM10199605-200105

sub44200-44290

sub45517-44030

main44250-44020iSXM15199605-199804

main44250-44050iCXM10199709-200105

sub44200-44290

sub45517-44030

main44250-44060iSXM10..IPSUM,L199708-200105

sub44200-44060

main44250-44070iSXM15..IPSUM,L199708-199804

main44250-44080iSXM15199804-200105

sub44200-44080

main44250-44090iSXM15..IPSUM,L199804-200105

sub44200-44090

45046END SUB-ASSY, TIE ROD, RH

main45046-19175iSXM15199804-200105

main45046-29265iSXM15199605-199804

sub45046-19175

main45046-29335iCXM10,SXM10199605-200105

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iCXM10,SXM1#199605

45047END SUB-ASSY, TIE ROD, LH

main45046-19175iSXM15199804-200105

main45046-29265iSXM15199605-199804

sub45046-19175

main45047-29105iCXM10,SXM10199605-200105

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-20150iCXM10199709

main45515-20160iSXM10199605

main45515-20280iSXM15199605

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-20130iSXM15199605

main45517-44010iCXM10,SXM10199605

main45517-44030iSXM10..IPSUM,L199708

9011912288

main90119-12288

9011912309

main90119-12309

9017015001

main90170-15001

9538103025

main95381-03025

13 parts on this diagram · 5 diagrams in section
