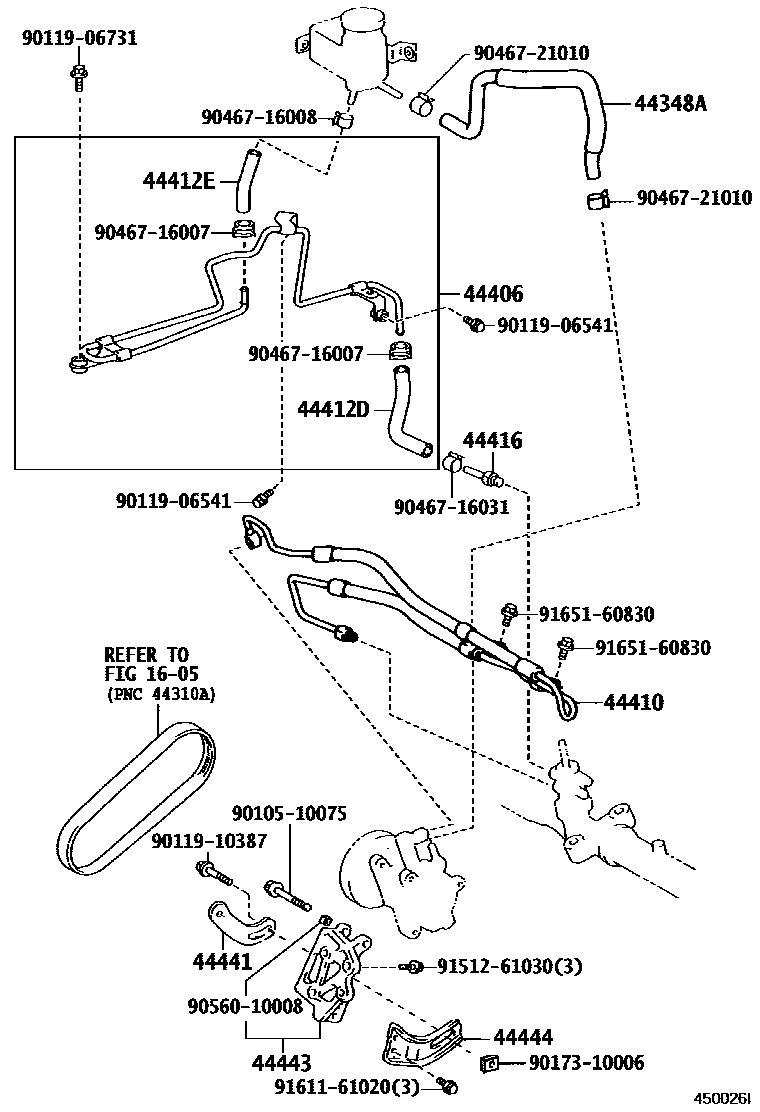

POWER STEERING TUBE

0001 1 0002 1 0003 1

1605

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-44010iSXM10199605

main44348-44020iSXM15199605

main44348-44030iCXM10199709

44406TUBE SUB-ASSY, RETURN

main44406-44010iSXM10199605-199708

main44406-44011iSXM10199708

main44406-44020iSXM15199605-199708

main44406-44021iSXM15199708

44410TUBE ASSY, PRESSURE FEED

main44410-44010iSXM10199605

main44410-44020iSXM15199605

main44410-44050iCXM10199709-199810

sub44410-44051

sub44457-44011

sub91626-60616

main44410-44051iCXM10199810

44412DHOSE, RETURN, NO.1

main44412-44030iSXM10199605-199708

main44412-44040iSXM15199605-199708

main44412-44090iCXM10199709

44412EHOSE, RETURN, NO.2

main44412-44020iSXM15199605-199708

main44412-44080iCXM10199709

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-20220iCXM10,SXM1#199605

44441BRACKET, PUMP, FRONT

main44441-32010iSXM10199605

44443BRACKET, PUMP

main44443-20050iSXM1#199605

44444STAY, PUMP, REAR

main44444-20030iSXM1#199605

9010510075

main90105-10075

9011906541

main90119-06541

9011906731

main90119-06731

9011910387

main90119-10387

9017310006

main90173-10006

9046716007

main90467-16007

9046716008

main90467-16008

9046716031

main90467-16031

9046721010

main90467-21010

9056010008

main90560-10008

9151261030

main91512-61030

9161161020

main91611-61020

9165160830

main91651-60830

23 parts on this diagram · 3 diagrams in section
