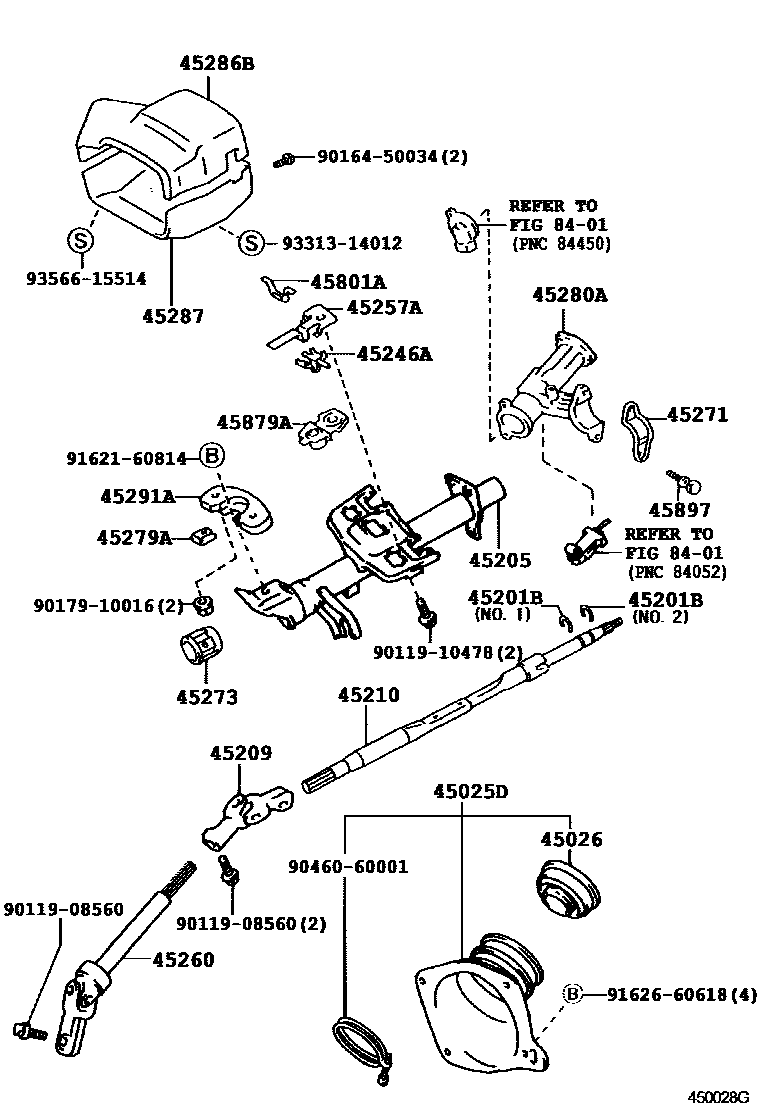

STEERING COLUMN & SHAFT
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
45205TUBE SUB-ASSY, STEERING COLUMN
45209YOKE SUB-ASSY, STEERING SLIDING
45210SHAFT ASSY, STEERING MAIN
45246AGUIDE, STEERING ENERGY ABSORBING PLATE
45257APLATE, STEERING COLUMN ENERGY ABSORBING
45271CLAMP, STEERING COLUMN, UPPER
45273BUSH, STEERING MAIN SHAFT
45279AATTACHMENT, STEERING COLUMN TUBE, LWR
45286BCOVER, STEERING COLUMN, UPR
MD.MOON MIST,TRIM1#
sub45286-44050
sub45286-44050
sub45286-44050
sub45286-44050
sub45286-44050
45287COVER, STEERING COLUMN, LWR
MD.MOON MIST,TRIM1#
sub45287-44050
sub45287-44050
sub45287-44050
sub45287-44050
sub45287-44050
45291ASUPPORT, STEERING COLUMN TUBE
45801APIN SUB-ASSY, STEERING ENERGY ABSORBING
45879ACAPSULE, BREAK AWAY
45897BOLT, STEERING LOCK SET
8401
9011908560
main90119-08560
9011910478
main90119-10478
9016450034
main90164-50034
9017910016
main90179-10016
9046060001
main90460-60001
9162160814
main91621-60814
9162660618
main91626-60618
9331314012
main93313-14012
9356615514
main93566-15514
29 parts on this diagram · 2 diagrams in section
