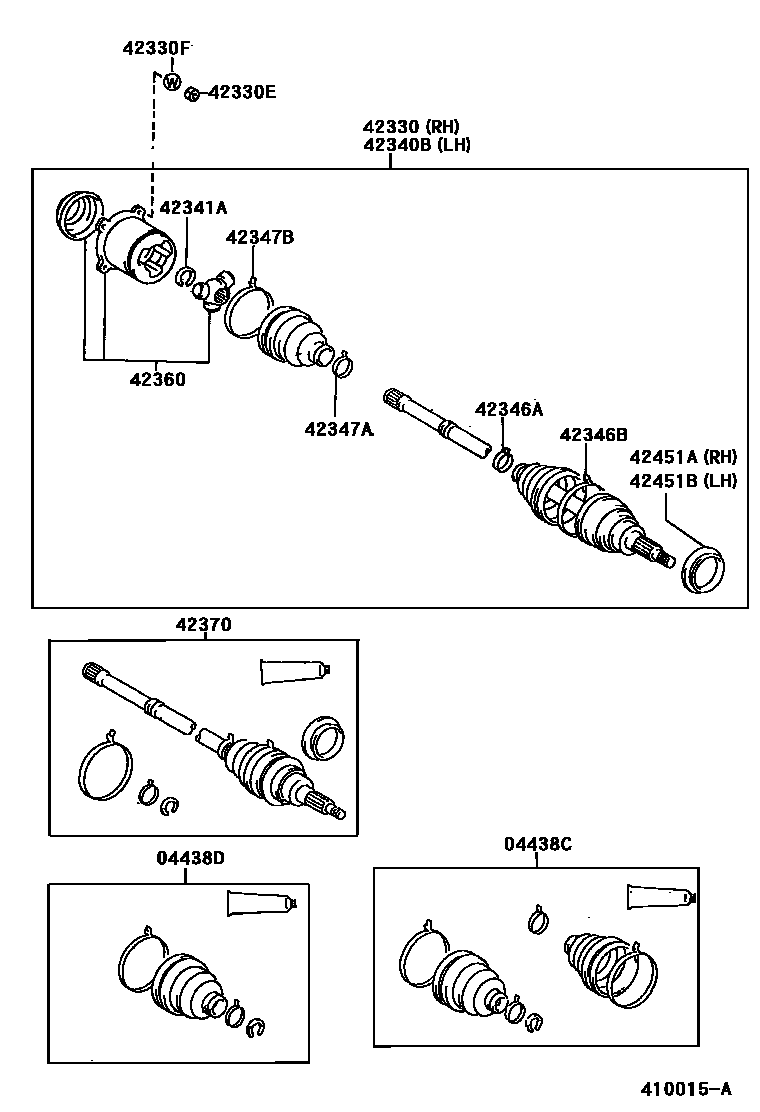

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1

04438CBOOT KIT, REAR DRIVE SHAFT

main04437-28040iSXM15199605-199804

04438DBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT

main04438-28011iSXM15199605-199804

sub04437-28021

42330SHAFT ASSY, REAR DRIVE, RH

main42340-44010iSXM15199804

sub42340-44011

main42340-44020iSXM15199605-199709

sub42340-44021

sub90178-22001

main42340-44021iSXM15199709-199804

42330ENUT(FOR REAR DRIVE SHAFT)

main90170-10191iSXM15199605-199804

42330FWASHER(FOR REAR DRIVE SHAFT)

main94511-01000iSXM15199605-199804

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-44010iSXM15199804

sub42340-44011

main42340-44020iSXM15199605-199709

sub42340-44021

sub90178-22001

main42340-44021iSXM15199709-199804

42341ARING, SNAP (FOR REAR DRIVE SHAFT)

main90520-26028iSXM15199605-199804

42346ACLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

main42345-16010iSXM15199605-199804

42346BCLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)

main42345-16020iSXM15199605-199804

42347ACLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-16030iSXM15199605-199804

42347BCLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-16090iSXM15199605-199804

42360JOINT ASSY, REAR DRIVE SHAFT INBOARD

main42360-30011iSXM15199605-199804

sub42360-20010

42370SHAFT ASSY, REAR DRIVE OUTBOARD JOINT

main42370-49045iSXM15199605-199709

sub42370-49046

sub90178-22001

main42370-49046iSXM15199709-199804

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main43247-12010iSXM15199605

42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

main43247-12010iSXM15199605

15 parts on this diagram · 4 diagrams in section
