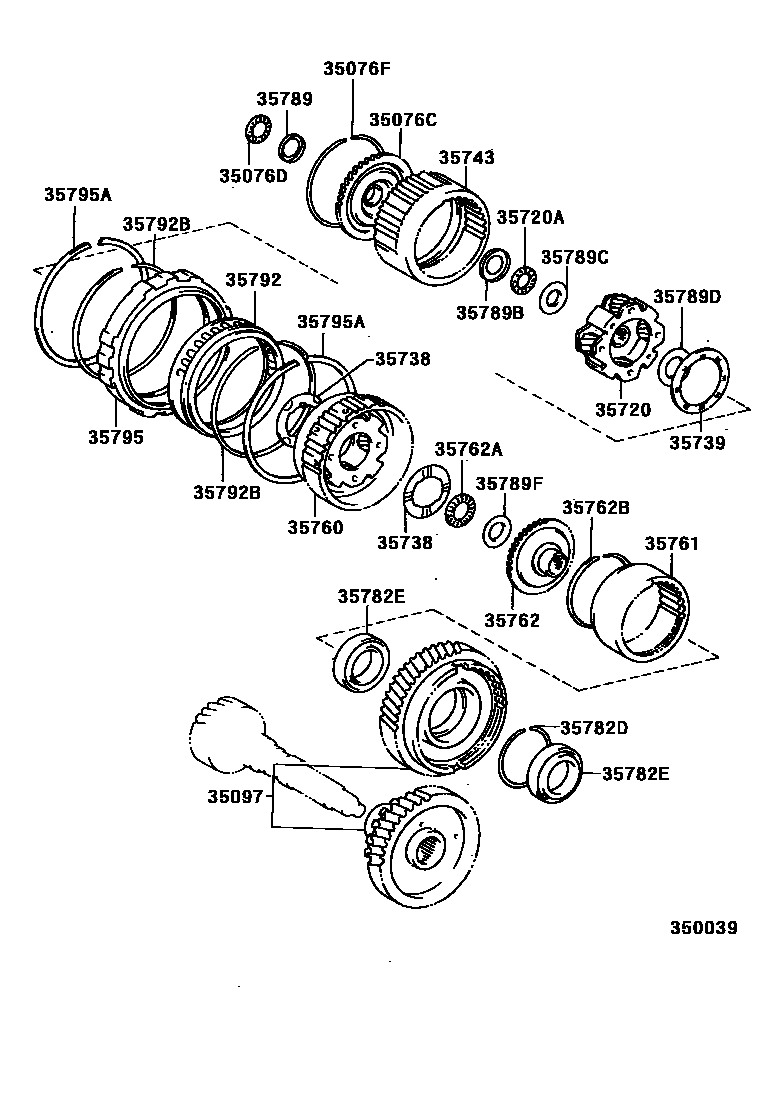

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1A540H 0002 1A241E,A243F 0004 1A247E

35076CFLANGE SUB-ASSY, FRONT PLANETARY RING GEAR

main35076-12020iSXM10199804

main35076-32011iSXM15199605-199708

main35076-32030iSXM10199605-199804

35076DBEARING, THRUST NEEDLE ROLLER(FOR FRONT PLANETARY FLANGE)

main90374-22001iCXM10,SXM1#199605-199804

main90374-22005iCXM10,SXM10199801-199804

sub90374-22001

main90374-25007iSXM10199804-199909

sub90374-25009

main90374-25009iSXM10199909

35076FRING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR FLANGE)

main90521-99014iCXM10,SXM1#199605

35097COUNTER GEAR KIT, AUTOMATIC TRANSAXLE

main35097-12050iSXM10199804

main35097-20050iSXM15199804

main35097-20060iCXM10199605-199804

main35097-32020iSXM15199605-199804

35720GEAR ASSY, FRONT PLANETARY

main35720-17010iCXM10,SXM1#199605

35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)

main90374-22001iCXM10,SXM1#199605-199804

main90374-22004iSXM10199804-199909

sub90374-22009

main90374-22005iCXM10,SXM10199801-199804

sub90374-22001

main90374-22009iSXM10199909

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-32010iCXM10,SXM10199605-199804

main35738-32030iSXM15199605-199804

35739WASHER, PLANETARY CARRIER THRUST, NO.3

main35739-32011iCXM10,SXM1#199605

35743GEAR, FRONT PLANETARY RING

main35743-32040iCXM10,SXM1#199605

35760GEAR ASSY, REAR PLANETARY

main35760-32010iSXM10199605-199804

main35760-32030iCXM10199605-199804

35761GEAR, REAR PLANETARY RING

main35761-32010iCXM10,SXM1#199605-199804

35762FLANGE, REAR PLANETARY RING GEAR

main35762-32010iCXM10,SXM10199605-199804

main35762-32030iSXM15199605-199804

35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)

main90374-24002iCXM10,SXM1#199605-199804

35762BRING, HOLE SNAP (FOR REAR PLANETARY RING GEAR FLANGE)

main90521-90001iCXM10,SXM1#199605-199804

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90521-67001iSXM15199605-199804

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90366-40077iSXM15199605-199804

main90369-40006iSXM10199804

35789RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE FRONT)

main35789-12040iSXM10199804

main35789-32050iCXM10,SXM1#199605-199804

35789BRACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE REAR)

main35789-32040iCXM10,SXM15199605-199804

35789CRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)

main35789-32060iCXM10,SXM1#199605

35789DRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR)

main35789-32070iCXM10,SXM1#199605-199804

35789FRACE, THRUST BEARING (FOR REAR PLANETARY FLANGE)

main35789-32080iCXM10,SXM1#199605-199804

35792CLUTCH, 1 WAY, NO.2

main35792-20020iCXM10,SXM1#199605-200104

main35792-20030iSXM10200104

sub35792-44010

main35792-32011iSXM15199605-199804

35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)

main90521-99010iCXM10,SXM1#199605

35795RACE, 1 WAY CLUTCH OUTER

main35795-12020iSXM10199908

main35795-32010iCXM10,SXM15199605-199908

35795ARING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE)

main90521-99011iCXM10,SXM1#199605

25 parts on this diagram · 3 diagrams in section
