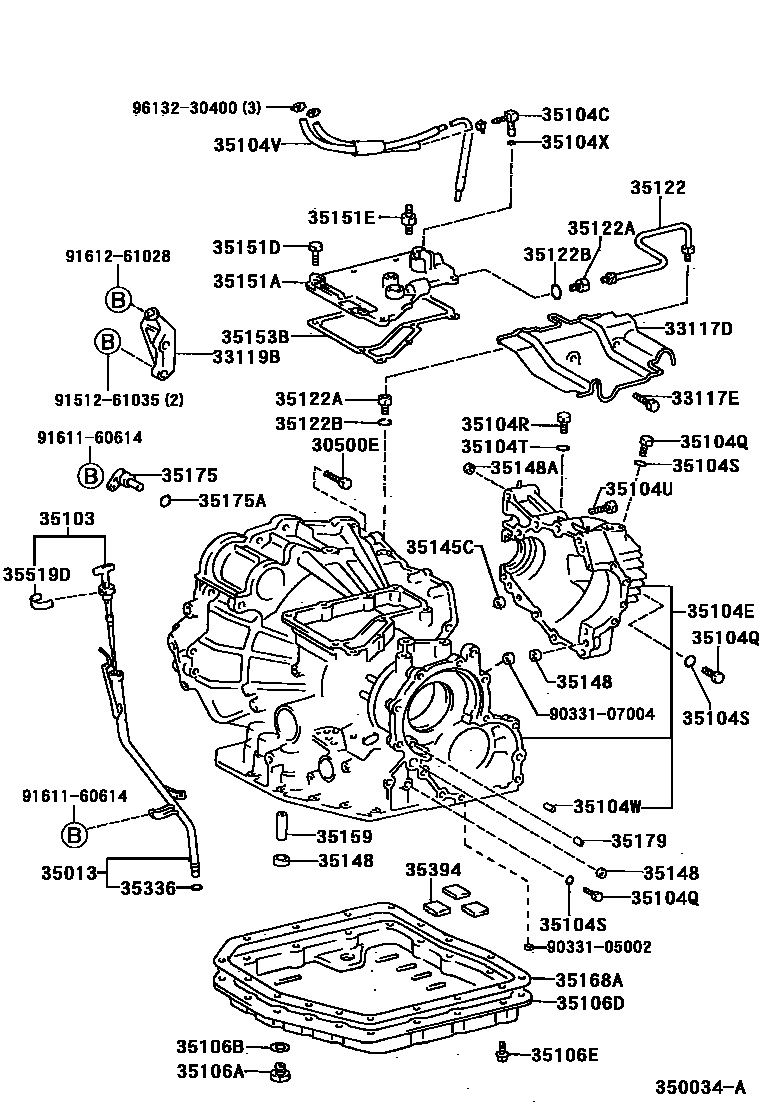

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A540H 0002 1A241E,A243F 0004 1A247E

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-08040iSXM1#199605-199804

sub91641-H0820

main90105-10077iCXM10,SXM1#199605

main91619-61245iCXM10,SXM1#199605

main91621-61020iSXM15199605-199804

sub91622-B1020

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-12030iCXM10,SXM1#199605-199804

main33117-32050iSXM15199605-199804

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040iCXM10,SXM1#199605

sub91641-H0820

33119BPLATE, STIFFENER, LH(ATM)

main33119-32010iCXM10199709

main33119-32020iSXM15199605

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-44010iSXM10199605-199804

main35013-44030iSXM15199605-199804

main35013-44040iCXM10199709

main35013-44050iSXM15199804

main35013-44060iSXM10199804

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-44010iSXM10199605-199804

sub35103-44060

main35103-44020iSXM15199605-199804

main35103-44030iCXM10199709

main35103-44040iSXM10199804

main35103-44060iSXM15199804

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03094iSXM15199605-199804

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-20110iSXM10199804

main35104-32065iSXM15199605-199701

sub35104-32066

sub90105-10051

main35104-32066iSXM15199701-199804

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iCXM10,SXM10199605-199804

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-13003iSXM15199605-199804

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iCXM10,SXM1#199605-199804

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90301-10189iSXM15199605-199804

35104UBOLT (FOR TRANSAXLE CASE)

main90105-10222iSXM15199605-199804

main90105-10223iSXM15199605-199804

main90105-10224iSXM15199605-199804

35104VHOSE (FOR BREATHER PLUG)

main35121-44010iSXM15199605-199804

main90447-11017iCXM10,SXM10199605-199804

main90447-11040iSXM10199804

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10021iCXM10,SXM10199605-199804

main90250-10232iSXM15199605-199804

main90250-11001iCXM10,SXM10199605-199804

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iSXM15199605-199804

main90301-06010iSXM10199804

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iCXM10,SXM10199605-199804

sub90341-10011

main90341-10011iSXM10199804

main90341-18016iSXM15199605-199804

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iCXM10,SXM10199605-199804

main90430-18008iSXM15199605-199804

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-12070iSXM15199804-200001

main35106-12110iCXM10,SXM10199605-200001

sub35106-12070

main35106-12120iSXM10199804

sub35106-12090

main35106-32032iSXM15199605-199804

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173iCXM10,SXM10199605-199804

35122TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)

main35122-32010iSXM15199605-199804

35122AUNION (FOR AUTOMATIC TRANSAXLE BREATHER TUBE)

main90404-14007iSXM15199605-199804

35122BRING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION)

main90301-10189iSXM15199605-199804

35145CGASKET, TRANSAXLE CASE

main35145-32020iSXM15199605-199804

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010iCXM10,SXM10199605-199804

35148AGASKET, GOVERNOR APPLY, NO.2

main35148-12010iCXM10,SXM1#199605

35151ACOVER, TRANSAXLE CASE, UPPER

main35151-32023iSXM15199605-199804

35151DBOLT (FOR TRANSAXLE CASE UPPER COVER)

main90105-06113iSXM15199605-199804

sub91511-H0620

main90105-08174iSXM15199605-199804

35151EBOLT (FOR TRANSAXLE CASE UPPER COVER)

main90109-08179iSXM15199605-199804

35153BGASKET, TRANSAXLE CASE UPPER COVER

main35153-32010iSXM15199605-199804

35159GASKET, BRAKE DRUM

main35159-20010iCXM10,SXM10199605-199804

main35159-32011iSXM15199605-199804

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-12020iCXM10,SXM10199605-199804

main35168-12030iSXM10199804

main35168-32020iSXM15199605-199611

sub35168-33020

main35168-33020iSXM15199611-199804

35175CAP, TRANSAXLE CASE, NO.2

main35175-32010iSXM15199605-199804

35175ARING, O (FOR TRANSAXLE CASE CAP)

main90301-21002iSXM15199605-199804

35179GASKET, OVERDRIVE BRAKE

main35179-32010iSXM15199605-199804

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iCXM10,SXM1#199605

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iCXM10,SXM10199605-199804

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-16040iSXM15199804

main35519-42010iSXM15199605-199804

9033105002

main90331-05002

9033107004

main90331-07004

9151261035

main91512-61035

9161160614

main91611-60614

9161261028

main91612-61028

9613230400

main96132-30400

44 parts on this diagram · 3 diagrams in section
