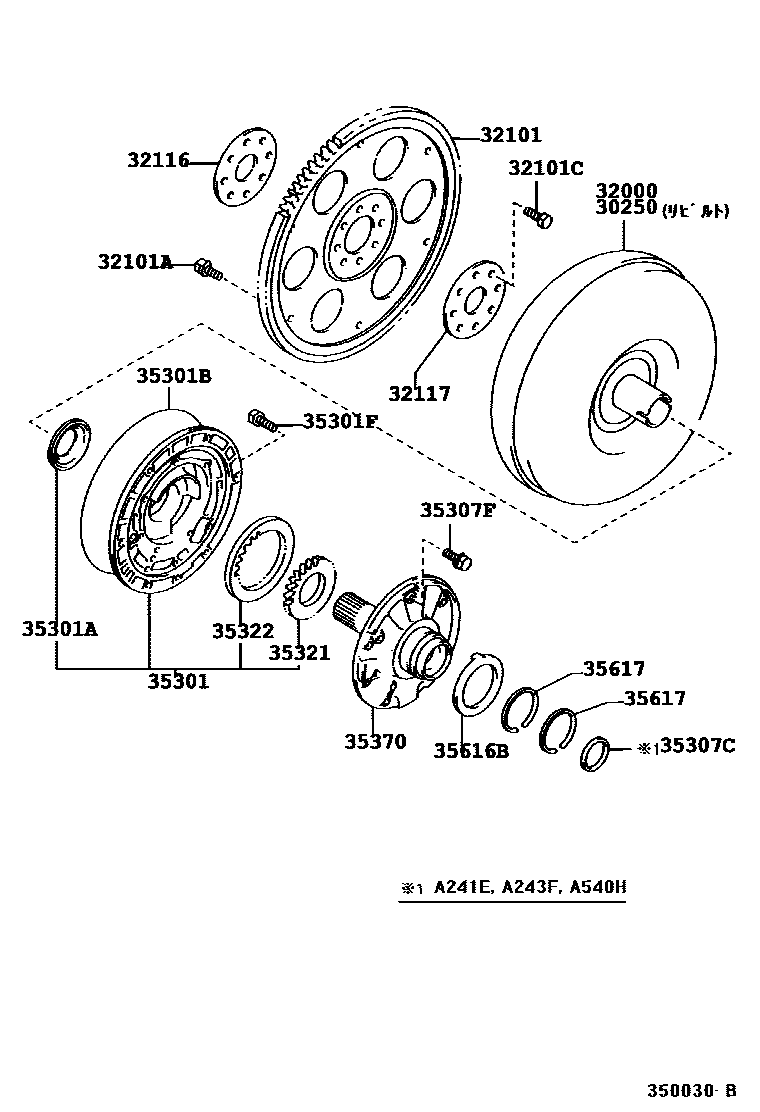

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-21040iCXM10199709

main30250-32051iSXM10199605-199804

main30250-44010iSXM10199804

main30250-44020iSXM15199804

32000CONVERTER ASSY, TORQUE

main32000-21040iCXM10199709

main32000-32051iSXM10199605-199804

main32000-42020iSXM15199605-199804

main32000-44010iSXM10199804

main32000-44020iSXM15199804

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-32051iSXM1#199605

main32101-32120iCXM10199709

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iSXM1#199605

main90109-09001iCXM10199709

main90119-08498iSXM1#199605

main90119-09025iCXM10199709

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90109-10037iCXM10199709

main90109-10054iSXM1#199605

32116SPACER, DRIVE PLATE, FRONT

main32116-20030iCXM10199709

main32116-32011iSXM1#199605

32117SPACER, DRIVE PLATE, REAR

main32117-20040iCXM10199709

main32117-32010iSXM1#199605

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-12010iCXM10,SXM10199605-199804

main35035-32030iSXM15199605-199804

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iCXM10,SXM1#199605-200009

main90311-38082iCXM10,SXM1#200009

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99024iCXM10,SXM1#199605

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08050iSXM15199605-199804

main90105-08198iCXM10,SXM10199605-199804

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-12080iCXM10,SXM15199801-199804

main35789-32020iCXM10,SXM15199605-199804

main35789-32030iCXM10,SXM15199605-199804

35307FBOLT (FOR STATOR SHAFT)

main90119-06808iCXM10,SXM1#199605

sub90119-06559

35321GEAR, FRONT OIL PUMP DRIVE

main35321-12020iCXM10,SXM1#199605

main35321-12030iCXM10,SXM1#199605

main35321-12040iCXM10,SXM1#199605

main35321-12050iCXM10,SXM1#199605

main35321-12060iCXM10,SXM1#199605

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-12010iCXM10,SXM1#199605

main35322-12020iCXM10,SXM1#199605

main35322-12030iCXM10,SXM1#199605

main35322-12040iCXM10,SXM1#199605

main35322-12050iCXM10,SXM1#199605

35370SHAFT ASSY, STATOR

main35370-12040iCXM10,SXM1#199605-199804

main35370-12050iSXM10199804

sub35370-32060

35616BWASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)

main35616-32010iCXM10,SXM1#199605

35617RING, CLUTCH DRUM OIL SEAL

main35617-32011iCXM10,SXM1#199605

18 parts on this diagram · 1 diagram in section
