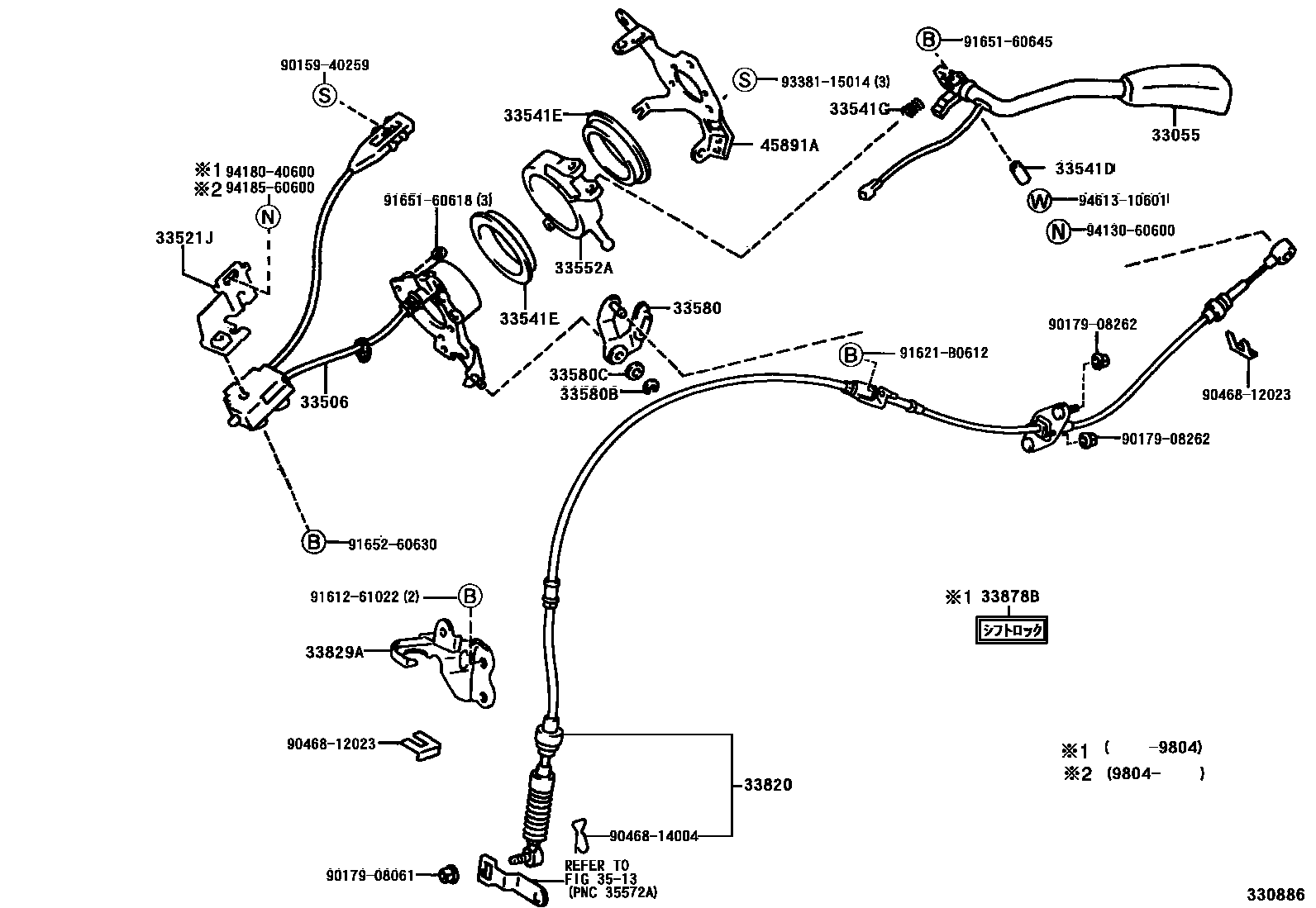

CONTROL SHAFT & CROSSSHAFT
33055LEVER SUB-ASSY, COLUMN SHIFT
33506RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIFT)
33521JHOUSING, SHIFT LEVER (FOR COLUMN SHIFT)
33541DCOLLAR (FOR COLUMN SHIFT LEVER)
33541EBUSH (FOR COLUMN SHIFT LEVER)
33541GSPRING, COMPRESSION (FOR COLUMN SHIFT LEVER)
33580BELLCRANK ASSY, SHIFTING (FOR COLUMN SHIFT)
33580BRING, SHAFT SNAP (FOR SHIFTING BELLCRANK)
33580CWASHER, PLATE (FOR SHIFTING BELL CRANK)
33820CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)
sub33820-44031
sub33820-44041
sub33820-44071
sub33820-44101
33829ASUPPORT, TRANSMISSION CONTROL CABLE
33878BLABEL, SHIFT LOCK INFORMATION, NO.2(FOR COLUMN SHIFT)
3513
45891ABRACKET, TURN SIGNAL
9015940259
main90159-40259
9017908061
main90179-08061
9017908262
main90179-08262
9046812023
main90468-12023
9046814004
main90468-14004
9161261022
main91612-61022
91621B0612
main91621-B0612
9165160618
main91651-60618
9165160645
main91651-60645
9165260630
main91652-60630
9338115014
main93381-15014
9413060600
main94130-60600
9418040600
main94180-40600
9418560600
main94185-60600
9461310601
main94613-10601
30 parts on this diagram · 2 diagrams in section
