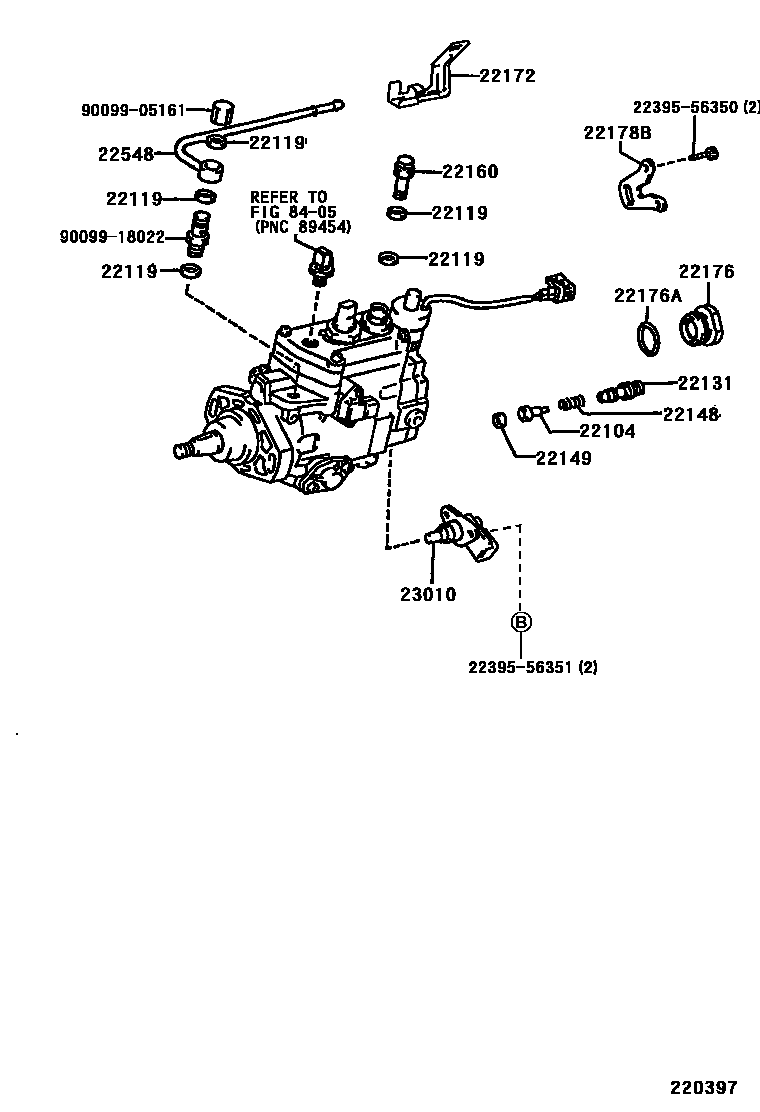

INJECTION PUMP BODY

22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY

main22104-6A640i3CTE..CXM10199709

22119WASHER, AIR BLEEDER NIPPLE

main90201-12109i3CTE..CXM10199709

22131HOLDER, DELIVERY VALVE

main22190-6A680i3CTE..CXM10199709

22148SPRING, DELIVERY VALVE

main22148-54010i3CTE..CXM10199709

22149GASKET, DELIVERY VALVE

main22149-56351i3CTE..CXM10199709

22160SCREW SUB-ASSY, OVERFLOW

main22160-54271i3CTE..CXM10199709

22172CLIP, CONNECTOR SUPPORT, SOLENOID

main22172-6E140i3CTE..CXM10199709

22176PLUG, DISTRIBUTIVE HEAD

main22176-54640i3CTE..CXM10199709

22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)

main22193-54772i3CTE..CXM10199709

22178BBRACKET(FOR INJECTION PUMP ASSY)

main22178-64010i3CTE..CXM10199709

22548NIPPLE, SWIVEL

main22548-6E150i3CTE..CXM10199709

23010VALVE ASSY, TIMING CONTROL

main23010-64010i3CTE..CXM10199709-199804

sub23010-64020

main23010-64020i3CTE..CXM10199804-200006

sub23010-67010

main23010-67010i3CTE..CXM10200006

8405

2239556350BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-56350

2239556351BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-56351

9009905161

main90099-05161

9009918022

main90099-18022

17 parts on this diagram · 1 diagram in section
