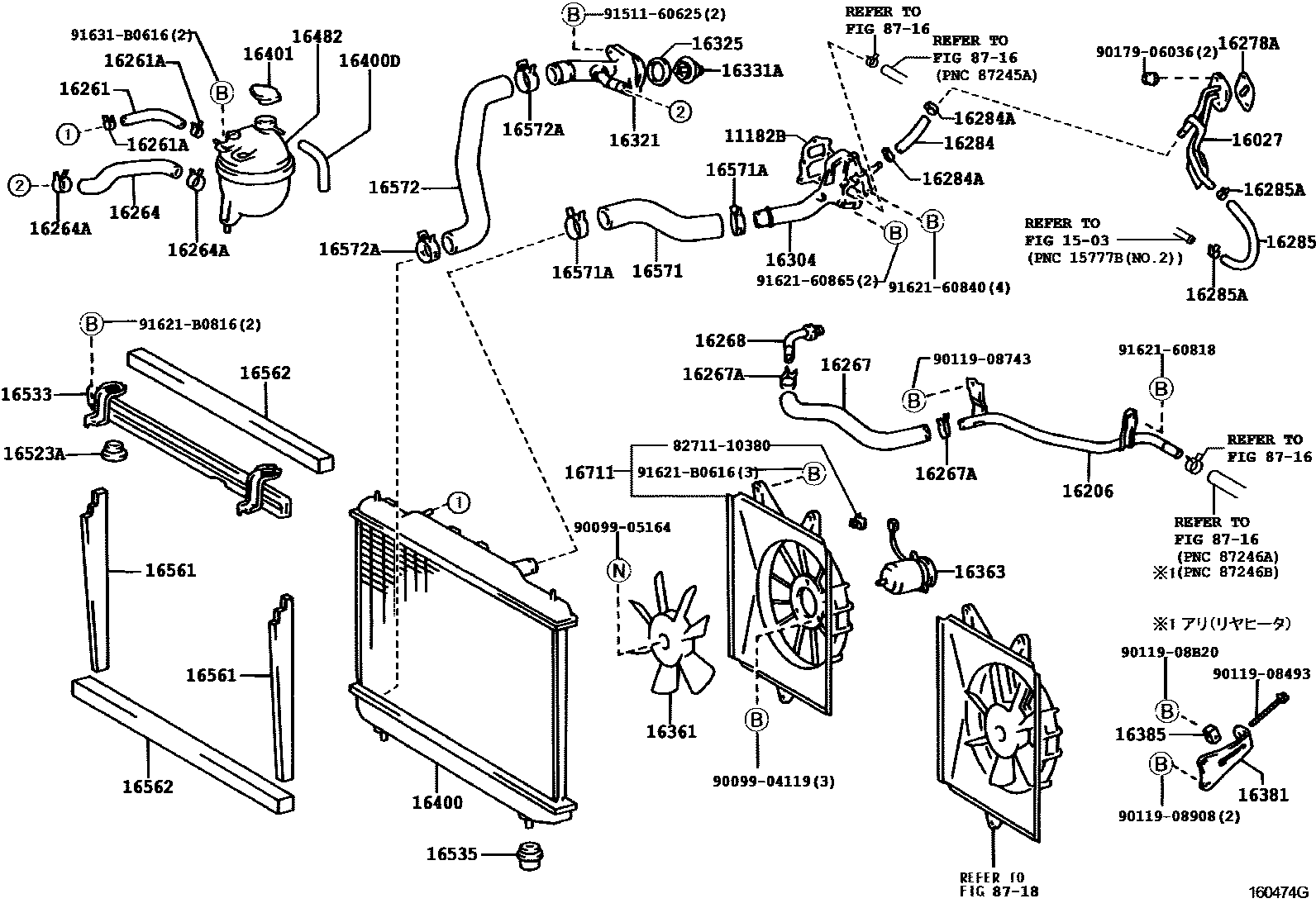

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1

11182BGASKET, CYLINDER HEAD REAR PLATE

main11182-64021i3CTE..CXM10199709

1503

16027PIPE SUB-ASSY, TURBO WATER, NO.1

main16027-64071i3CTE..CXM10199709

16206PIPE SUB-ASSY, WATER BY-PASS

main16206-64050i3CTE..CXM10199709

16261HOSE, WATER BY-PASS

main16261-64130i3CTE..CXM10199709

main16261-74100i3SFE..SXM1#199605

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-13050i3CTE..CXM10199709

sub96135-51300

main90467-22003i3SFE..SXM1#199605

sub90467-21010

16264HOSE, WATER BY-PASS, NO.2

main16264-64140i3CTE..CXM10199709

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-22006i3CTE..CXM10199709

sub90467-21010

16267HOSE, WATER BY-PASS, NO.3

main16267-64030i3CTE..CXM10199709

16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

main90467-22004i3CTE..CXM10199709

sub90467-21010

16268PIPE, WATER BY-PASS, NO.1

main16268-64100i3CTE..CXM10199709

main16268-74190i3SFE..SXM1#199605

16278AGASKET, WATER BY-PASS

main16347-42020i3CTE..CXM10199709

16284HOSE, TURBO WATER, NO.1

main16284-64061i3CTE..CXM10199709

16284ACLIP(FOR TURBO WATER HOSE NO.1)

main90467-13128i3CTE..CXM10199709

16285HOSE, TURBO WATER, NO.2

main99556-10200i3CTE..CXM10199709

sub99556-10300

16285ACLIP(FOR TURBO WATER HOSE NO.2)

main90467-13128i3CTE..CXM10199709

16304OUTLET SUB-ASSY, WATER

main16304-64020i3CTE..CXM10199709

16321INLET, WATER

main16321-64090i3CTE..CXM10199709

main16321-74050i3SFE..SXM1#199605

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63011i3SFE..SXM1#199605

16331OUTLET, WATER

main16304-74280i3SFE..SXM1#199804

main16304-74290i3SFE..SXM1#199804

main16331-74210i3SFE..SXM1#199605-199707

sub16331-74260

main16331-74220i3SFE..SXM1#199607-199804

main16331-74260i3SFE..SXM1#199707-199804

16331ATHERMOSTAT

main90916-03046i3CTE..CXM10199709

main90916-03090i3SFE..SXM1#199605

16361FAN

main16361-64080i3CTE..CXM10199709

16363MOTOR, COOLING FAN

main16363-64150i3CTE..CXM10199709

16381BAR, FAN BELT ADJUSTING

main16381-64160i3CTE..CXM10199709

16385SLIDER, FAN BELT ADJUSTING

main16385-64011i3CTE..CXM10199709

16400RADIATOR ASSY

main16400-6A170i3CTE..CXM10199709

main16400-7A260i3SFE..SXM10199605-199708

sub16400-7A261

main16400-7A261i3SFE..SXM10199708-199804

sub16400-7A262

main16400-7A262i3SFE..SXM1#199804

main16400-7A350i3SFE..SXM15199605-199708

sub16400-7A351

main16400-7A351i3SFE..SXM15199708-199804

sub16400-7A262

16400DHOSE(FOR RADIATOR DRAIN COCK)

main85338-30010i3CTE..CXM10199709

16401CAP SUB-ASSY, RADIATOR

main16401-5B440i3CTE..CXM10199709

main16401-62100i3SFE..SXM1#199708

sub16401-31520

main16401-72090i3SFE..SXM1#199605-199708

sub16401-20353

16482TANK SUB-ASSY, RADIATOR RESERVE

main16480-64170i3CTE..CXM10199709-199804

sub16480-64171

main16480-64171i3CTE..CXM10199804

16523ACUSHION, RADIATOR SUPPORT

main16523-74010i3SFE..SXM1#199605

16533SUPPORT, RADIATOR, UPPER

main16505-64020i3CTE..CXM10199709

main16533-74250i3SFE..SXM1#199605-199702

sub16533-74251

main16533-74251i3SFE..SXM1#199702

16535SUPPORT, RADIATOR, LOWER

main16535-64050i3CTE..CXM10199709

main16535-74210i3SFE..SXM1#199605

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-64020i3CTE..CXM10199709

16562SEAL, RADIATOR TO SUPPORT, NO.2

main16562-64020i3CTE..CXM10199709

16571HOSE, RADIATOR, INLET

main16571-64300i3CTE..CXM10199709

main16571-74370i3SFE..SXM1#199605-199608

sub16571-74371

main16571-74371i3SFE..SXM1#199608

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-41001i3CTE..CXM10199709

sub90467-41002

main90467-34003i3SFE..SXM1#199605

sub90467-34004

16572HOSE, RADIATOR, OUTLET

main16572-64290i3CTE..CXM10199709

main16572-74300i3SFE..SXM1#199605

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-41001i3CTE..CXM10199709

sub90467-41002

main90467-34003i3SFE..SXM1#199605

sub90467-34004

main90467-34006i3SFE..SXM1#199605

16711SHROUD, FAN

main16711-64460i3CTE..CXM10199709

8716

8718

8271110380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10380

9009904119

main90099-04119

9009905164

main90099-05164

9011908493

main90119-08493

9011908743

main90119-08743

9011908908

main90119-08908

9011908B20

main90119-08B20

9017906036

main90179-06036

9151160625

main91511-60625

9162160818

main91621-60818

9162160840

main91621-60840

9162160865

main91621-60865

91621B0616

main91621-B0616

91621B0816

main91621-B0816

91631B0616

main91631-B0616

56 parts on this diagram · 4 diagrams in section
