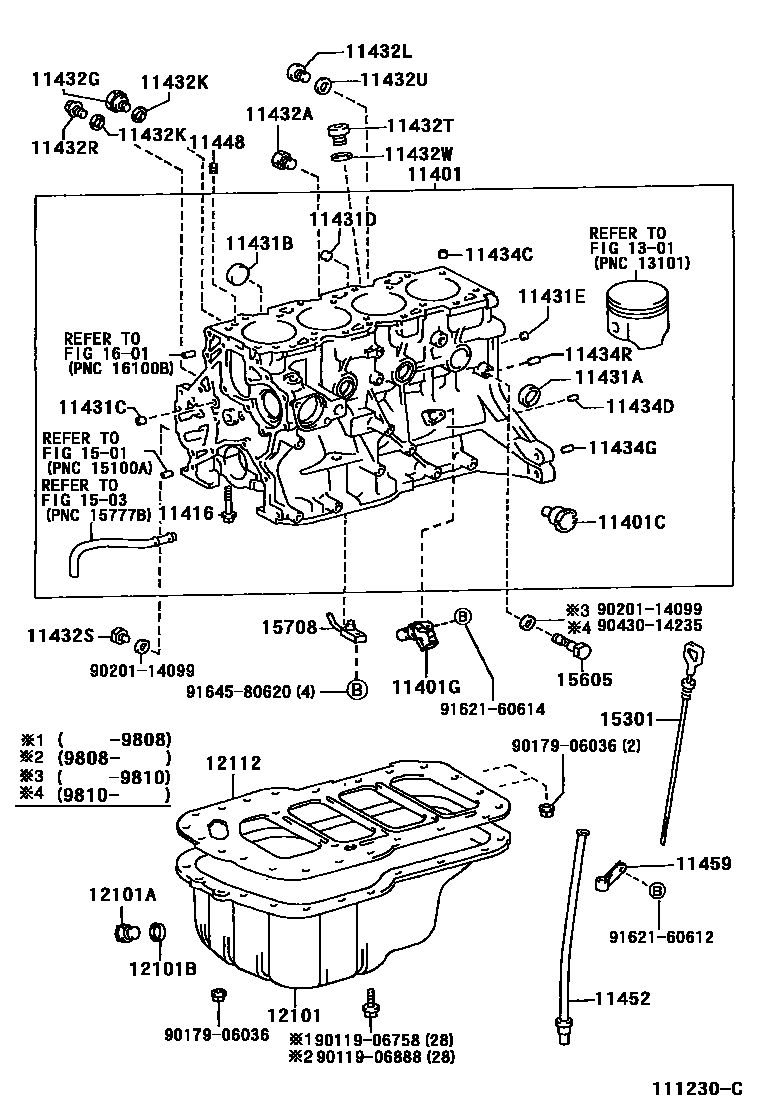

CYLINDER BLOCK
11401CFLANGE(FOR WATER BY-PASS)
11401GSENSOR, CRANK POSITION
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
11432APLUG, W/HEAD TAPER SCREW, NO.1
11432GPLUG, W/HEAD STRAIGHT SCREW, NO.5
11432KGASKET, W/HEAD STRAIGHT SCREW PLUG
11432LPLUG, W/HEAD STRAIGHT SCREW, NO.4(FOR CYLINDER BLOCK)
11432RPLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)
11432SPLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR CYLINDER BLOCK)
11432TPLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR CYLINDER BLOCK)
11432UGASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)
11432WGASKET, STRAIGHT SCREW PLUG NO.3(FOR CYLINDER BLOCK)
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
11434GPIN, STRAIGHT(FOR END PLATE)
11434RPIN, STRAIGHT(FOR DRIVE SHAFT BEARING BRACKET)
11448ORIFICE, CYLINDER BLOCK OIL
11459SUPPORT, OIL LEVEL GAGE GUIDE
12101APLUG(FOR OIL PAN DRAIN)
sub90341-12012
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12112PAN, OIL NO.2
1301
1501
1503
15605VALVE SUB-ASSY, OIL CHECK
15708NOZZLE SUB-ASSY, OIL, NO.1
1601
9011906758
main90119-06758
9011906888
main90119-06888
9017906036
main90179-06036
9020114099
main90201-14099
9043014235
main90430-14235
9162160612
main91621-60612
9162160614
main91621-60614
9164580620
main91645-80620
44 parts on this diagram · 3 diagrams in section
