STANDARD TOOL

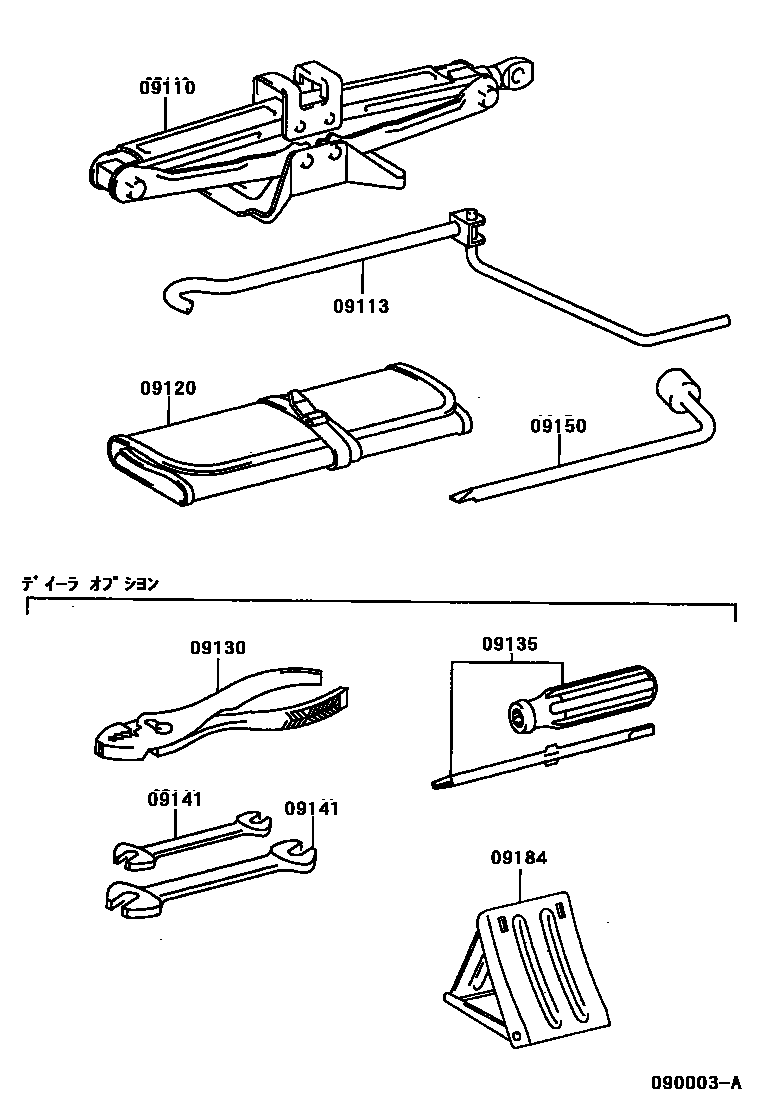

Parts diagram

09110JACK ASSY

main09111-44010i199605

09113HANDLE, JACK

main09113-44010i199605

09120BAG, TOOL

main09120-16030i199605

09130PLIERS

main99913-11500i199605

09135DRIVER, SCREW

main99915-10700i199605

09141SPANNER

main99914-10810i199605

main99914-11214i199605

09150WRENCH, HUB NUT BOX

main09150-40010i199605

09184STOPPER, WHEEL

main09184-00010i199605

8 parts on this diagram · 1 diagram in section
