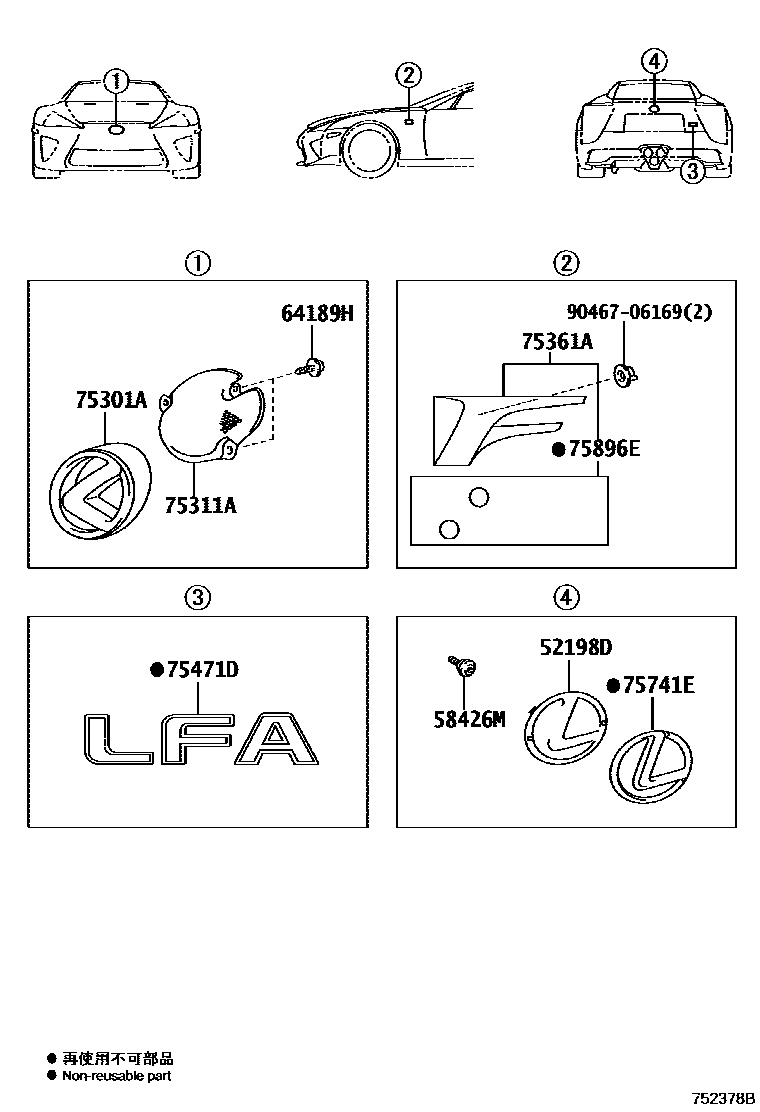

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

52198DPLATE, BUMPER MOULDING MOUNTING, REAR

main52198-77020iLFA10201012

58426MPROTECTOR, ENGINE SUB COVER

main58426-77020iLFA10201012

64189HBOLT, REAR BODY MOUNTING

main64189-77020×3iLFA10201012

75301AEMBLEM SUB-ASSY, FRONT BUMPER

main75301-77010iLFA10201012

75311APLATE, FRONT NAME, NO.1

main75311-77010iLFA10201012

75361APLATE, FRONT FENDER NAME, NO.1

main75361-77010×2iLFA10201012

75471DPLATE, REAR NAME

main75471-77010iLFA10201012

75741EEMBLEM, SYMBOL

main90975-02084iLFA10201012

sub90975-02212

75896ETAPE, MOULDING, NO.2

main75896-77010iLFA10201012

9046706169

main90467-06169

10 parts on this diagram · 1 diagram in section
