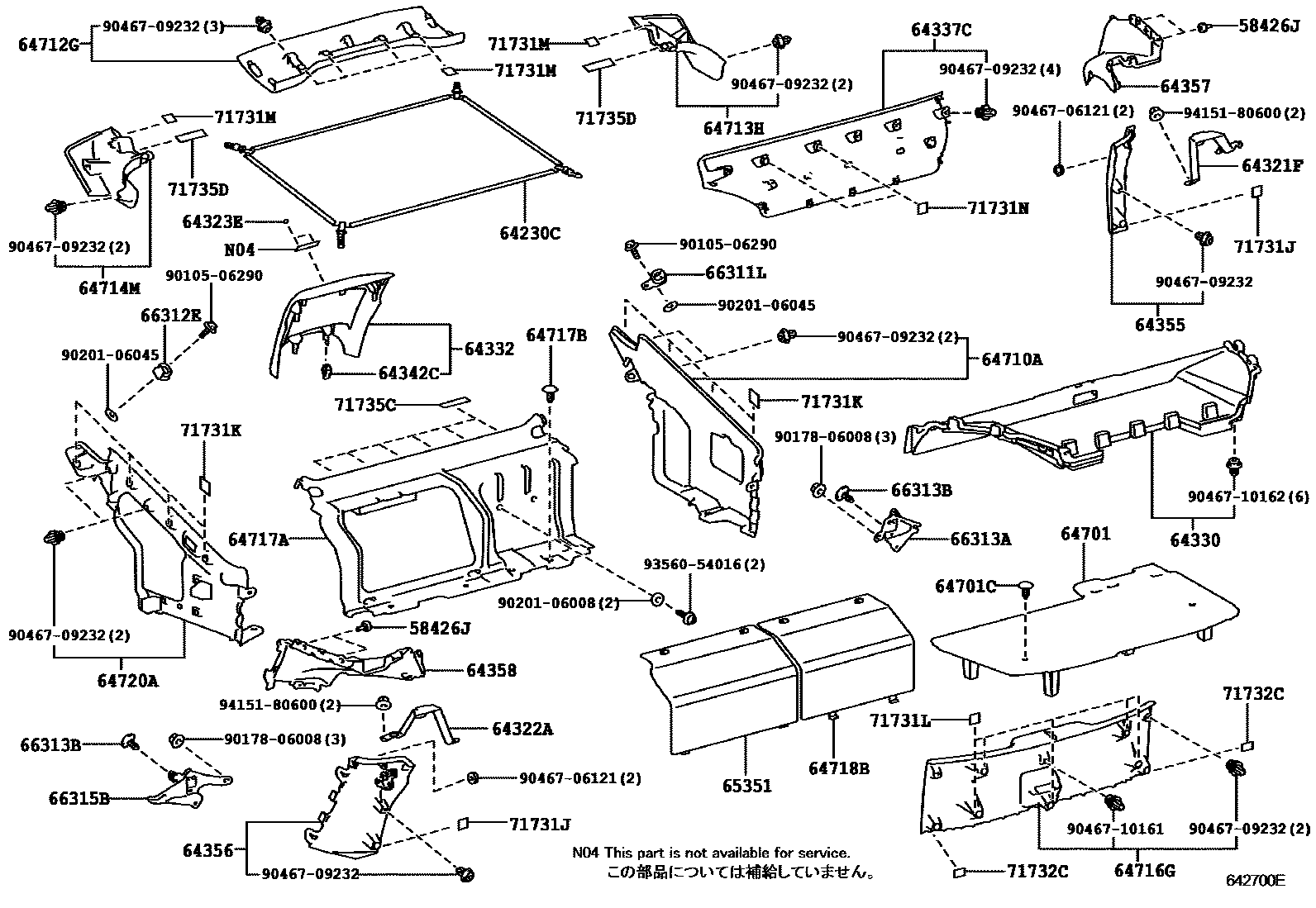

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58426JPROTECTOR, ENGINE SUB COVER
64230CNET ASSY, ROOM PARTITION
DK.GRAY,TRIM2#
64321FBRACKET, PACKAGE TRAY TRIM, RH
64322ABRACKET, PACKAGE TRAY TRIM, LH
64323ECLAMP, PACKAGE TRAY TRIM
64330PANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM20
RED,TRIM20
CAMEL YELLOW,TRIM20
64332COVER, PACKAGE TRAY TRIM
BLACK,TRIM20
RED,TRIM20
CAMEL YELLOW,TRIM20
64337CGARNISH, PACKAGE TRAY TRIM
BLACK,TRIM20
RED,TRIM20
CAMEL YELLOW,TRIM20
64342CCLIP(FOR COVER, PACKAGE TRAY TRIM, UNDER)
64355TRIM, PACKAGE TRAY TRIM EDGE, FR RH
64356TRIM, PACKAGE TRAY TRIM EDGE, FR LH
64357TRIM, PACKAGE TRAY TRIM EDGE, RR RH
64358TRIM, PACKAGE TRAY TRIM EDGE, RR LH
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
BLACK,TRIM2#
64701CCLIP(FOR LUGGAGE COMPARTMENT MAT)
64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH
BLACK,TRIM2#
64712GGARNISH, LUGGAGE COMPARTMENT, UPPER
BLACK,TRIM2#
64713HCOVER, LUGGAGE COMPARTMENT UPPER, RH
BLACK,TRIM2#
64714MCOVER, LUGGAGE COMPARTMENT UPPER, LH
BLACK,TRIM2#
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
BLACK,TRIM2#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM2#
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
64718BCOVER, LUGGAGE TRIM SERVICE HOLE
BLACK,TRIM2#
64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH
BLACK,TRIM2#
65351COVER, BATTERY SERVICE HOLE
BLACK,TRIM2#
66311LHOOK,ROPE
66312EHOOK, ROPE, NO.2
66313AHOOK, ROPE, NO.3
66313BCLIP(FOR HOOK, ROPE)
66315BHOOK, ROPE, NO.4
71731JFASTENER, SEAT COVER, A
71731KFASTENER, SEAT COVER, A
71731LFASTENER, SEAT COVER, A
71731MFASTENER, SEAT COVER, A
71731NFASTENER, SEAT COVER, A
71732CFASTENER, SEAT COVER, B
71735CFASTENER, SEAT COVER, C
71735DFASTENER, SEAT COVER, C
9010506290
main90105-06290
9017806008
main90178-06008
9020106008
main90201-06008
9020106045
main90201-06045
9046706121
main90467-06121
9046709232
main90467-09232
9046710161
main90467-10161
9046710162
main90467-10162
9356054016
main93560-54016
9415180600
main94151-80600
48 parts on this diagram · 1 diagram in section
