MAT & CARPET
58191CPANEL, FOOTREST
58196BTRIM, FOOTREST
58510GCARPET ASSY, FLOOR, FRONT RH
CREAM,TRIM20
BLACK,TRIM20
RED,TRIM20
CAMEL YELLOW,TRIM20
BLUE,TRIM20
58511FCARPET, FLOOR, FRONT RH
58511HMAT, FLOOR, FRONT RH
CREAM,TRIM20
BLACK,TRIM20
RED,TRIM20
CAMEL YELLOW,TRIM20
BLUE,TRIM20
58512HMAT, FLOOR, FRONT LH
CREAM,TRIM20
BLACK,TRIM20
RED,TRIM20
CAMEL YELLOW,TRIM20
BLUE,TRIM20
58513DCARPET, FLOOR, FRONT CENTER
CREAM,TRIM20
BLACK,TRIM20
RED,TRIM20
CAMEL YELLOW,TRIM20
BLUE,TRIM20
58515DCARPET, FLOOR, REAR LH
CREAM,TRIM20
BLACK,TRIM20
RED,TRIM20
CAMEL YELLOW,TRIM20
BLUE,TRIM20
58520CCLIP(FOR FRONT FLOOR CARPET)
58520JCARPET ASSY, FLOOR, FRONT LH
CREAM,TRIM20
BLACK,TRIM20
RED,TRIM20
CAMEL YELLOW,TRIM20
BLUE,TRIM20
58521CHOOK, FLOOR CARPET NO.2
58530JCARPET ASSY, FLOOR, CENTER
CREAM,TRIM20
BLACK,TRIM20
RED,TRIM20
CAMEL YELLOW,TRIM20
BLUE,TRIM20
58540GCARPET ASSY, FLOOR, REAR RH
CREAM,TRIM20
BLACK,TRIM20
RED,TRIM20
CAMEL YELLOW,TRIM20
BLUE,TRIM20
58569CPAD, FRONT FLOOR SIDE, LH
58572QPAD, FRONT FLOOR, FRONT NO.2
58573CPAD, FRONT FLOOR CENTER
58576CPAD, FRONT FLOOR, REAR NO.2
71732DFASTENER, SEAT COVER, B
72829FASTENER, REAR SEAT CENTER ARMREST
9046706197
main90467-06197
91551J0625
main91551-J0625
93241A6020
main93241-A6020
9415180641
main94151-80641

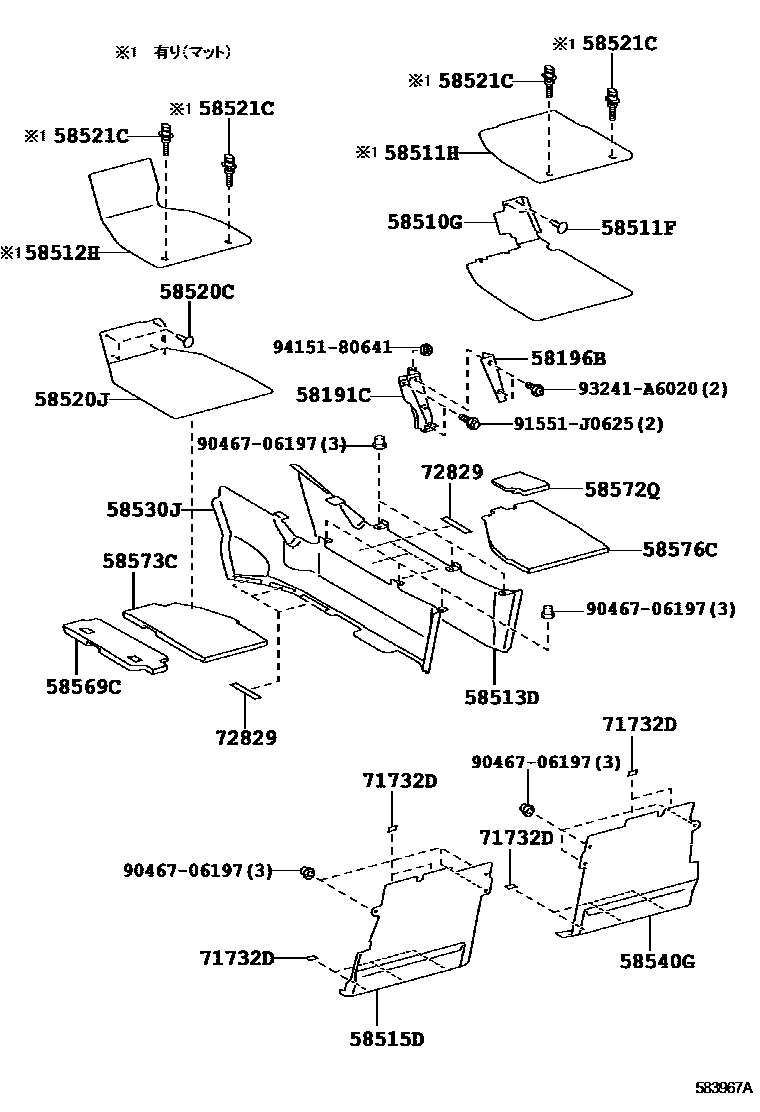

23 parts on this diagram · 1 diagram in section
