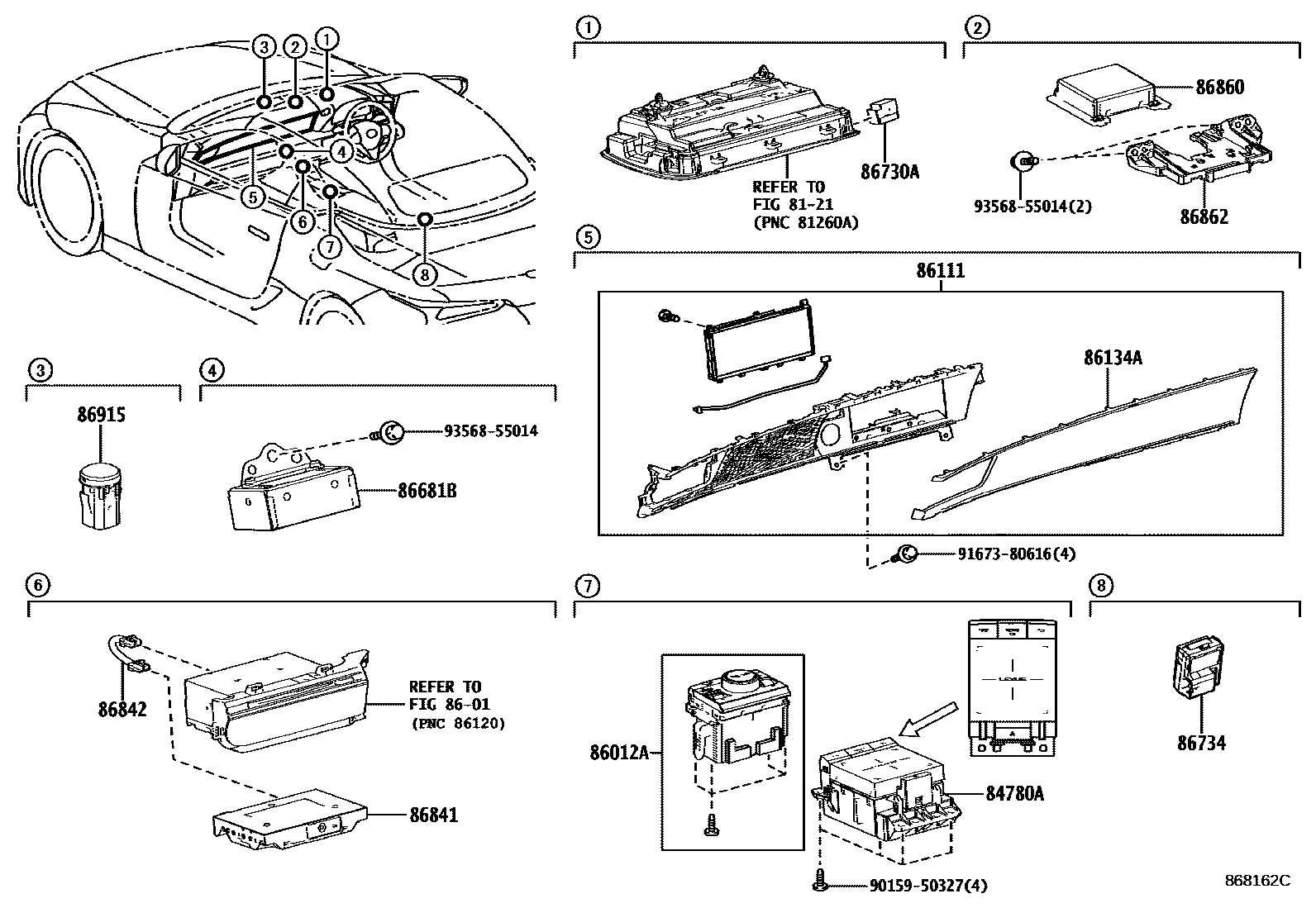

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1�������������� (DOP)

8121

84780ACONTROLLER ASSY, REMOTE OPERATION

main84780-11011iURZ100202007-202111

main84780-11170iURZ100202111

8601

86012APARTS SET, RADIO SETTING

main86011-11020iURZ100202007

86111MULTI-DISPLAY

main86111-11010iURZ100202007

86134APARTS, MULTI-DISPLAY

main86134-11020iURZ100202007

86681BDIVIDER, ANTENNA

main86681-11010iURZ100202007

86730AMICROPHONE ASSY, TELEPHONE

main86250-12020iURZ100202007

86734MICROPHONE, ACTIVE NOISE CONTROL

main86734-11030iURZ100202007

86841COMPUTER, NAVIGATION

main86840-48172iURZ100202007-202008

main86840-48173iURZ100202009-202103

main86840-48174iURZ100202104-202108

main86840-48175iURZ100202109-202203

main86840-48176iURZ100202204-202207

main86840-48177iURZ100202208-202303

main86840-48178iURZ100202304

sub86840-48179

86842WIRE, NAVIGATION, NO.1

main86842-11010iURZ100202007

86860ANTENNA ASSY, NAVIGATION

main86880-78010iURZ100202007

86862BRACKET, NAVIGATION ANTENNA

main86862-58020iURZ100202007

86915TRANSCEIVER, OPTICAL BEACON

main86915-60010iURZ100202007

9015950327

main90159-50327

9167380616

main91673-80616

9356855014

main93568-55014

17 parts on this diagram · 2 diagrams in section
