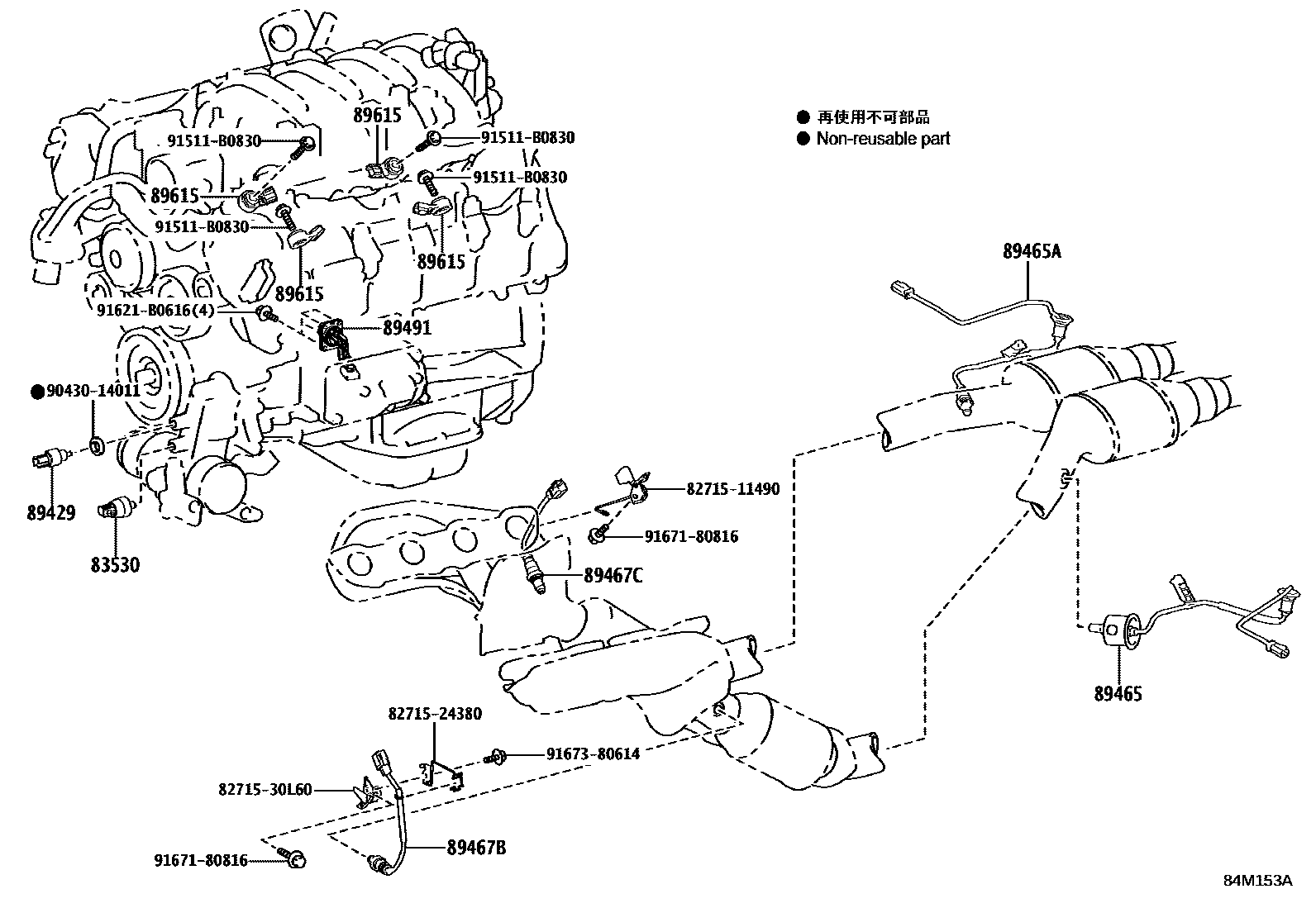

SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1�������� 0003 1�������� �������� 0004 1��� 0005 1������������ 0006 1���������� 0007 1������� 0008 1��� 0009 1���,��� & ��� 0010 1�������

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iURZ100202007

main83530-60020iURZ100202007

89429SENSOR, OIL TEMPERATURE

main89429-53010iURZ100202007

89465SENSOR, OXYGEN

main89465-11010iURZ100202007

89465ASENSOR, OXYGEN NO.2

main89465-11020iURZ100202007

89467BSENSOR, AIR FUEL RATIO

main89467-24010iURZ100202007

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-11050iURZ100202007

89491SENSOR, ENGINE OIL LEVEL

main89491-24020iURZ100202007

89615SENSOR, KNOCK CONTROL

main89615-20090iURZ100202007

8271511490BRACKET,WIRING HARNESS CLAMP

main82715-11490

8271524380BRACKET,WIRING HARNESS CLAMP

main82715-24380

8271530L60BRACKET,WIRING HARNESS CLAMP

main82715-30L60

9043014011

main90430-14011

91511B0830

main91511-B0830

91621B0616

main91621-B0616

9167180816

main91671-80816

9167380614

main91673-80614

16 parts on this diagram · 10 diagrams in section
