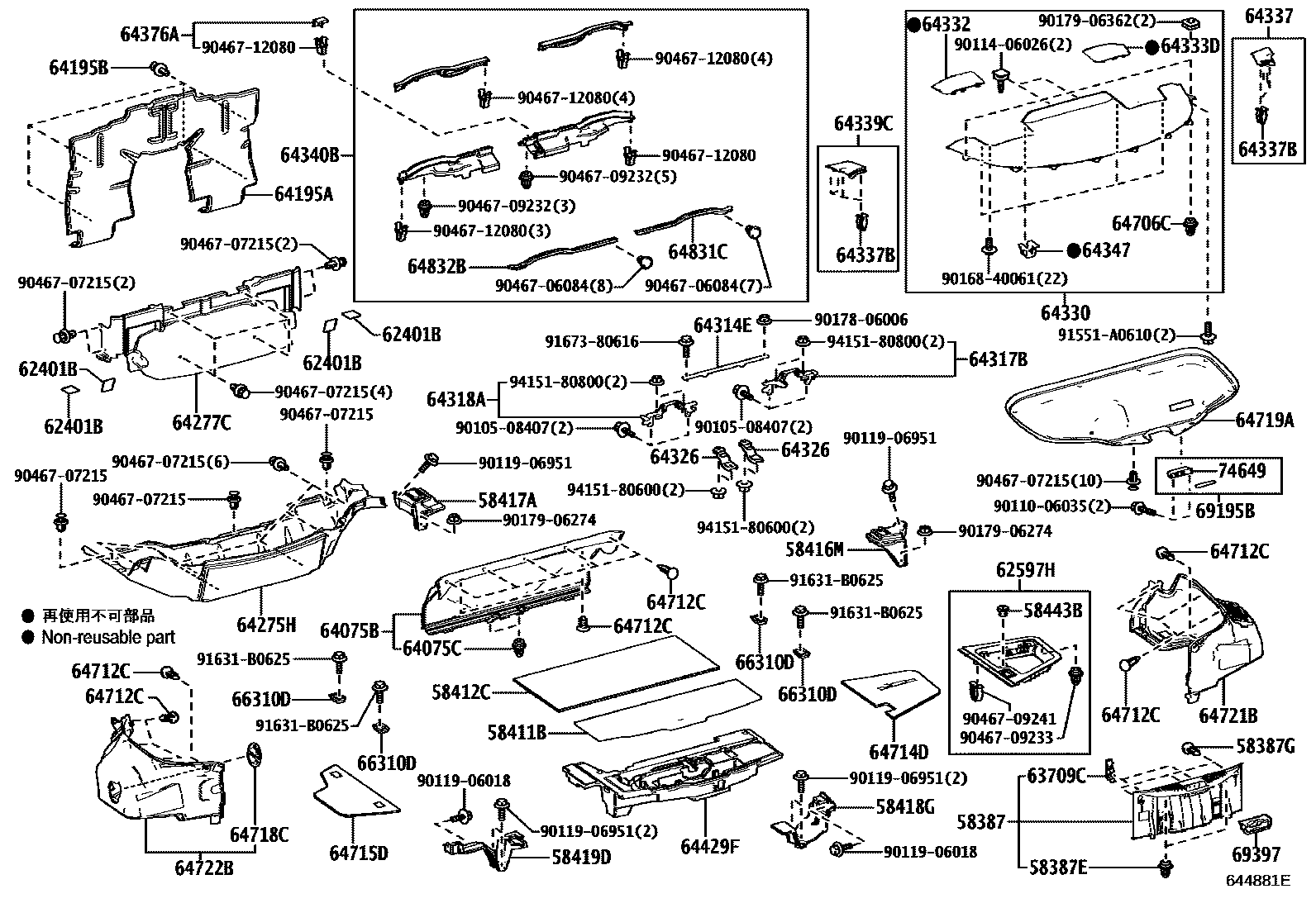

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
BLACK,TRIM0#,2#,3#,4#
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
58387GCLIP(FOR REAR FLOOR FINISH PLATE)
58411BBOARD, DECK, NO.1
BLACK,TRIM0#,2#,3#,4#
58412CBOARD, DECK, NO.2
BLACK,TRIM0#,2#,3#,4#
58416MBRACKET, DECK BOARD, NO.1 RH
58417ABRACKET, DECK BOARD, NO.1 LH
58418GBRACKET, DECK BOARD, NO.2
58419DBRACKET, DECK BOARD, NO.3
58443BCUSHION, DECK BOARD, NO.1
62401BFASTENER, HOOK
62597HBOX, SIDE TRIM
BLACK,TRIM0#,2#,3#,4#
63709CBAND SUB-ASSY, ROOM RACK
BLACK,TRIM0#,2#,3#,4#
64075BCOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM0#,2#,3#,4#
64075CCLIP, LUGGAGE COMPARTMENT TRIM COVER
64195AINSULATOR, ROOM PARTITION PANEL
64195BCLIP(FOR ROOM PARTITION PANEL INSULATOR)
64275HCOVER, ROOM PARTITION, NO.1
64277CCOVER, ROOM PARTITION, NO.2
64314EREINFORCEMENT, PACKAGE TRAY BRACKET
64317BREINFORCEMENT, PACKAGE TRAY BRACKET, NO.2 RH
64318AREINFORCEMENT, PACKAGE TRAY BRACKET, NO.2 LH
64326BRACKET, PACKAGE TRAY TRIM, CENTER
64330PANEL ASSY, PACKAGE TRAY TRIM
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHER,TRIM4#
64332COVER, PACKAGE TRAY TRIM
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHER,TRIM4#
64333DCOVER, PACKAGE TRAY TRIM SIDE, RH
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHER,TRIM4#
64337GARNISH, PACKAGE TRAY TRIM, RH
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHER,TRIM4#
64337BCLIP(FOR PACKAGE TRAY TRIM GARNISH)
64339CGARNISH, PACKAGE TRAY TRIM, NO.2
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHER,TRIM4#
64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHER,TRIM4#
64347RETAINER, PACKAGE TRAY TRIM EDGE SIDE
64376ASPACER, PACKAGE TRAY TRIM, NO.2
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHER,TRIM4#
64429FBOX, LUGGAGE COMPARTMENT TRIM
64706CCLIP
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
BLACK,TRIM0#,2#,3#,4#
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
BLACK,TRIM0#,2#,3#,4#
64718CCOVER, LUGGAGE TRIM SERVICE HOLE
BLACK,TRIM0#,2#,3#,4#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM0#,2#,3#,4#
64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK,TRIM0#,2#,3#,4#
64722BCOVER, LUGGAGE COMPARTMENT TRIM, NO.2
BLACK,TRIM0#,2#,3#,4#
64831CWEATHERSTRIP, BACK WINDOW GLASS, RH
GRAY,TRIM0#
BLACK,TRIM2#,3#,4#
64832BWEATHERSTRIP, BACK WINDOW GLASS, LH
GRAY,TRIM0#
BLACK,TRIM2#,3#,4#
66310DHOOK ASSY, ROPE
69195BGRIP ASSY, LUGGAGE COMPARTMENT DOOR ASSIST
BLACK,TRIM0#,2#,3#,4#
69397PROTECTOR, BACK DOOR LOCK
BLACK,TRIM0#,2#,3#,4#
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
9010508407
9011006035
9011406026
9011906018
9011906951
9016840061
9017806006
9017906274
9017906362
9046706084
9046707215
9046709232
9046709233
9046709241
9046712080
91551A0610
91631B0625
9167380616
9415180600
9415180800
67 parts on this diagram · 1 diagram in section
