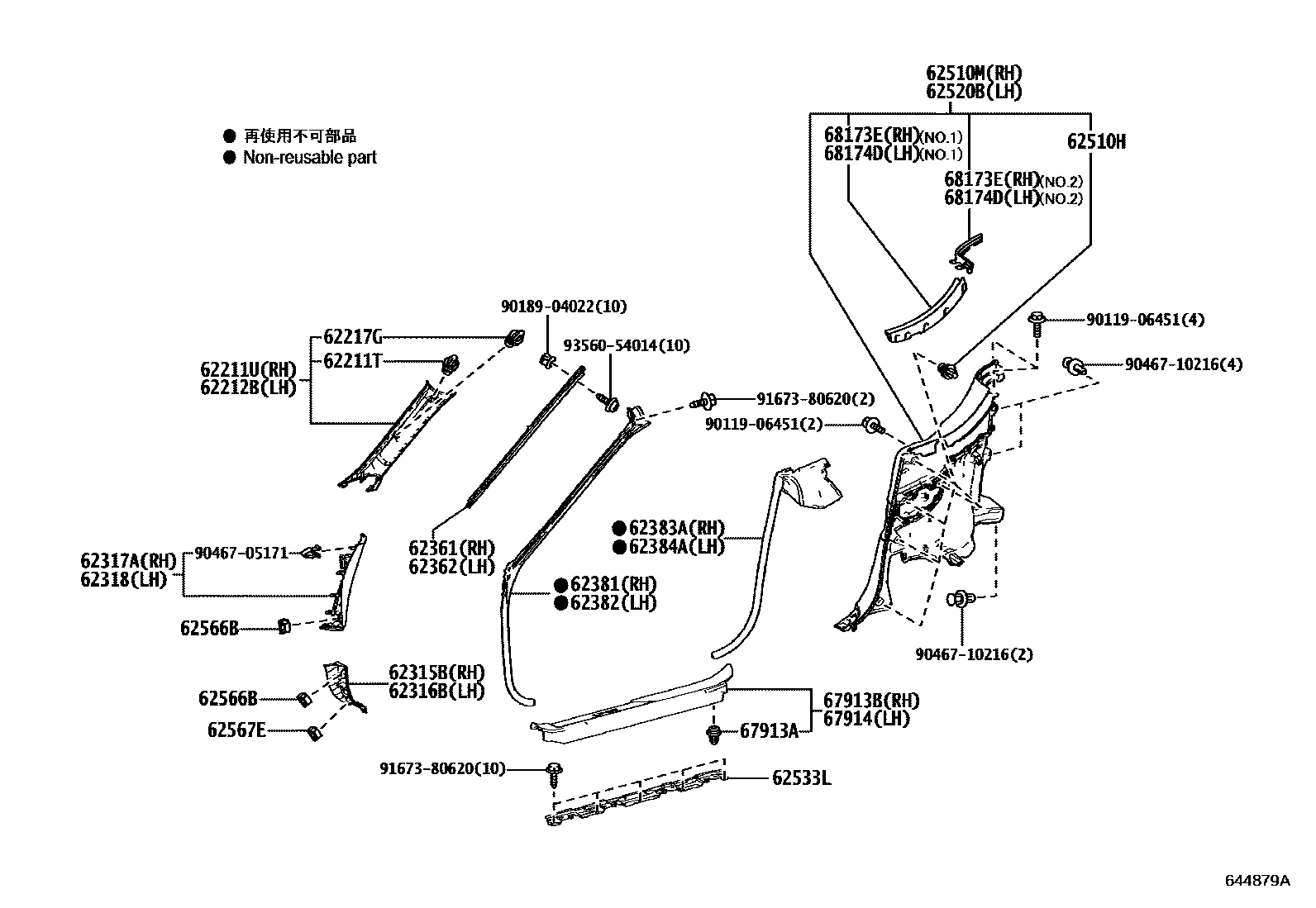

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-09232iURZ100202007

62211UGARNISH ASSY, FRONT PILLAR, RH

main62210-11030-A0iURZ100202007

WHITE,TRIM0#

main62210-11030-C0iURZ100202007

BLACK,TRIM2#,3#

main62210-11030-E0iURZ100202007

OCHER,TRIM4#

62212BGARNISH ASSY, FRONT PILLAR, LH

main62220-11030-A0iURZ100202007

WHITE,TRIM0#

main62220-11030-C0iURZ100202007

BLACK,TRIM2#,3#

main62220-11030-E0iURZ100202007

OCHER,TRIM4#

62217GCLIP, FRONT PILLAR GARNISH

main62217-13010iURZ100202007

62315BCOVER, FRONT DOOR OPENING TRIM, RH

main62315-11010-A1iURZ100202007-202112

WHITE,TRIM0#

main62315-11010-C1iURZ100202007

BLACK,TRIM2#,3#

main62315-11010-E1iURZ100202007

OCHRE,TRIM4#

main62315-11010-J0iURZ100202112

BLUE,TRIM0#

62316BCOVER, FRONT DOOR OPENING TRIM, LH

main62316-11010-A1iURZ100202007-202112

WHITE,TRIM0#

main62316-11010-C1iURZ100202007

BLACK,TRIM2#,3#

main62316-11010-E1iURZ100202007

OCHRE,TRIM4#

main62316-11010-J0iURZ100202112

BLUE,TRIM0#

62317ACOVER, FRONT DOOR OPENING TRIM, NO.2 RH

main62317-11020-A1iURZ100202007

WHITE,TRIM0#

main62317-11020-C2iURZ100202007

BLACK,TRIM2#,3#

main62317-11020-E2iURZ100202007

OCHRE,TRIM4#

62318COVER, FRONT DOOR OPENING TRIM, NO.2 LH

main62318-11020-A1iURZ100202007

WHITE,TRIM0#

main62318-11020-C2iURZ100202007

BLACK,TRIM2#,3#

main62318-11020-E2iURZ100202007

OCHRE,TRIM4#

62361RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT RH

main62361-11020iURZ100202007

62362RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT LH

main62362-11020iURZ100202007

62381WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH

main62381-11020iURZ100202007-202104

sub62381-11021

main62381-11021iURZ100202105-202109

sub62381-11022

main62381-11022iURZ100202110

sub62381-11023

62382WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH

main62382-11020iURZ100202007-202104

sub62382-11021

main62382-11021iURZ100202105-202109

sub62382-11022

main62382-11022iURZ100202110

sub62382-11023

62383AWEATHERSTRIP, ROOF SIDE RAIL, REAR RH

main62383-11010iURZ100202007

sub62383-11011

62384AWEATHERSTRIP, ROOF SIDE RAIL, REAR LH

main62384-11010iURZ100202007

sub62384-11011

62510HCLIP(FOR QUARTER TRIM FRONT PANEL)

main90467-09233iURZ100202007

62510MPANEL ASSY, QUARTER TRIM, RH

main62510-11090-A4iURZ100202007

WHITE/BLUE/GRAY,TRIM0#

sub62510-11091

main62510-11090-C8iURZ100202007

BLACK,TRIM2#

sub62510-11091

main62510-11090-C9iURZ100202007

BLACK/RED,TRIM3#

sub62510-11091

main62510-11090-E4iURZ100202007

OCHER,TRIM4#

sub62510-11091

62520BPANEL ASSY, QUARTER TRIM, LH

main62520-11090-A4iURZ100202007

WHITE/BLUE/GRAY,TRIM0#

sub62520-11091

main62520-11090-C8iURZ100202007

BLACK,TRIM2#

sub62520-11091

main62520-11090-C9iURZ100202007

BLACK/RED,TRIM3#

sub62520-11091

main62520-11090-E4iURZ100202007

OCHER,TRIM4#

sub62520-11091

62533LBRACKET, SIDE TRIM, NO.1

main62533-11010iURZ100202007-202101

main62533-11010iURZ100202007

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-11010iURZ100202007

62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62566-30010iURZ100202007

67913ACLIP(FOR SCUFF PLATE)

main90467-10162iURZ100202007-202101

main90467-10162iURZ100202007

67913BPLATE, FRONT DOOR SCUFF, RH

main67910-11010-C4iURZ100202007-202101

main67910-11010-C4iURZ100202007

BLACK,TRIM2#,3#

main67910-11010-C4iURZ100202007-202305

main67910-11010-E3iURZ100202007-202101

main67910-11010-E3iURZ100202007-202305

main67910-11010-E3iURZ100202007

OCHRE,TRIM4#

main67910-11010-J4iURZ100202111

WHITE/BLUE,TRIM0#

main67910-11010-J4iURZ100202111-202305

main67910-11090-C0iURZ100202302

main67913-11010iURZ100202007

main67913-11090iURZ100202007-202111

67914PLATE, FRONT DOOR SCUFF, LH

main67914-11010iURZ100202007

main67914-11090iURZ100202007-202111

main67920-11010-C4iURZ100202007

BLACK,TRIM2#,3#

main67920-11010-C4iURZ100202007-202101

main67920-11010-C4iURZ100202007-202305

main67920-11010-E3iURZ100202007-202305

main67920-11010-E3iURZ100202007-202101

main67920-11010-E3iURZ100202007

OCHRE,TRIM4#

main67920-11010-J4iURZ100202111-202305

main67920-11010-J4iURZ100202111

WHITE/BLUE,TRIM0#

main67920-11090-C0iURZ100202302

68173EWEATHERSTRIP, QUARTER TRIM PANEL, INNER RH

main68173-11010iURZ100202007

main68173-11020-B0iURZ100202007

main68173-11020-C0iURZ100202007

68174DWEATHERSTRIP, QUARTER TRIM PANEL, INNER LH

main68174-11010iURZ100202007

main68174-11020-B0iURZ100202007

main68174-11020-C0iURZ100202007

9011906451

main90119-06451

9018904022

main90189-04022

9046705171

main90467-05171

9046710216

main90467-10216

9167380620

main91673-80620

9356054014

main93560-54014

31 parts on this diagram · 1 diagram in section
