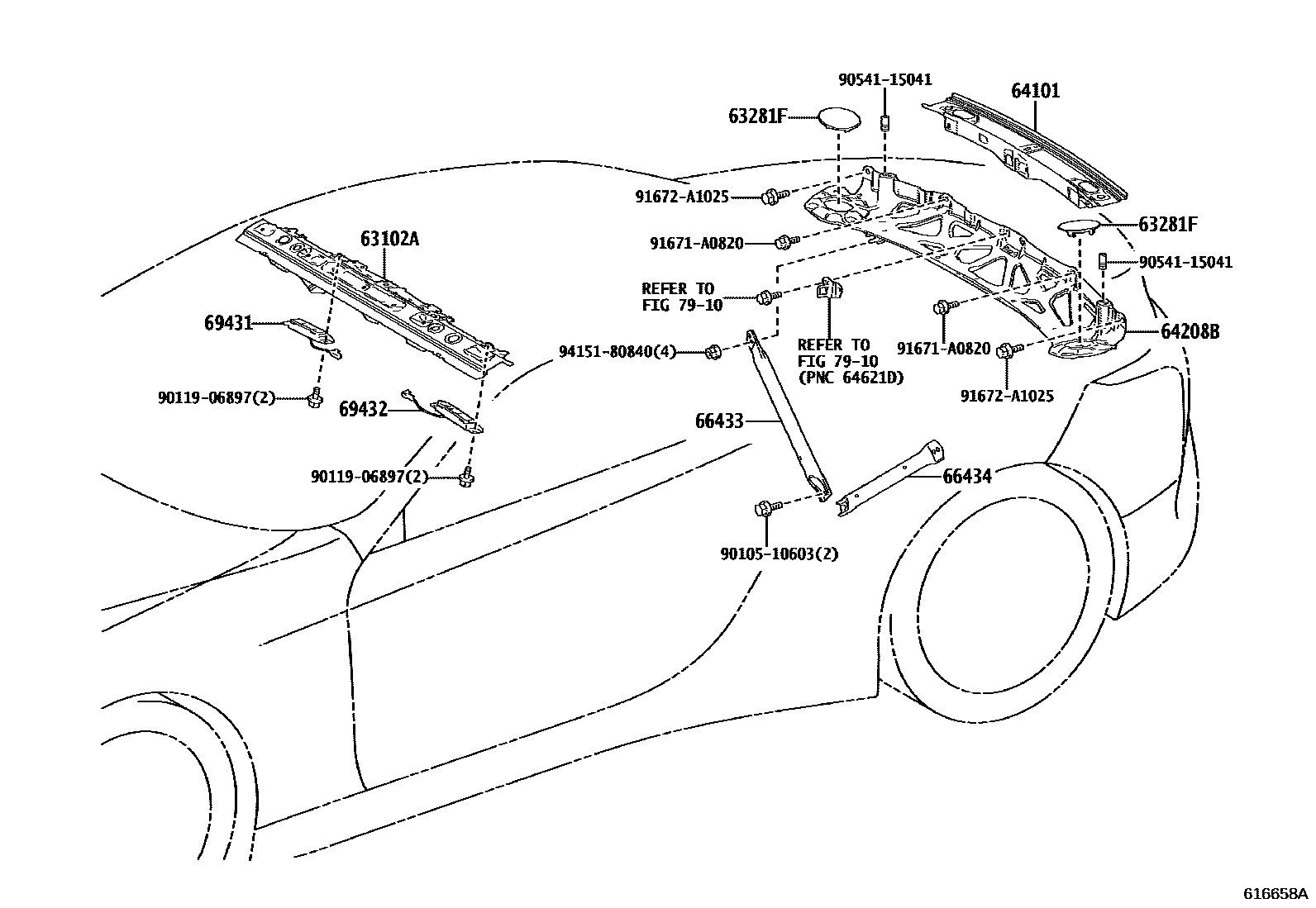

ROOF PANEL & BACK WINDOW GLASS

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-11030iURZ100202007-202009

sub63102-11031

main63102-11031iURZ100202010

63281FSTOPPER, REMOVABLE ROOF LOCK

main63281-11010iURZ100202007

64101PANEL SUB-ASSY, UPPER BACK

main64101-11050iURZ100202007

64208BMEMBER SUB-ASSY, ROOM PARTITION CROSS

main64208-11010iURZ100202007

66433BRACE, SIDE REAR STEP, RH

main66433-11010iURZ100202007

66434BRACE, SIDE REAR STEP, LH

main66434-11010iURZ100202007

69431STRIKER, TOP COVER LOCK, NO.1 RH

main69431-11020iURZ100202007

69432STRIKER, TOP COVER LOCK, NO.1 LH

main69432-11010iURZ100202007

7910

9010510603

main90105-10603

9011906897

main90119-06897

9054115041

main90541-15041

91671A0820

main91671-A0820

91672A1025

main91672-A1025

9415180840

main94151-80840

15 parts on this diagram · 1 diagram in section
