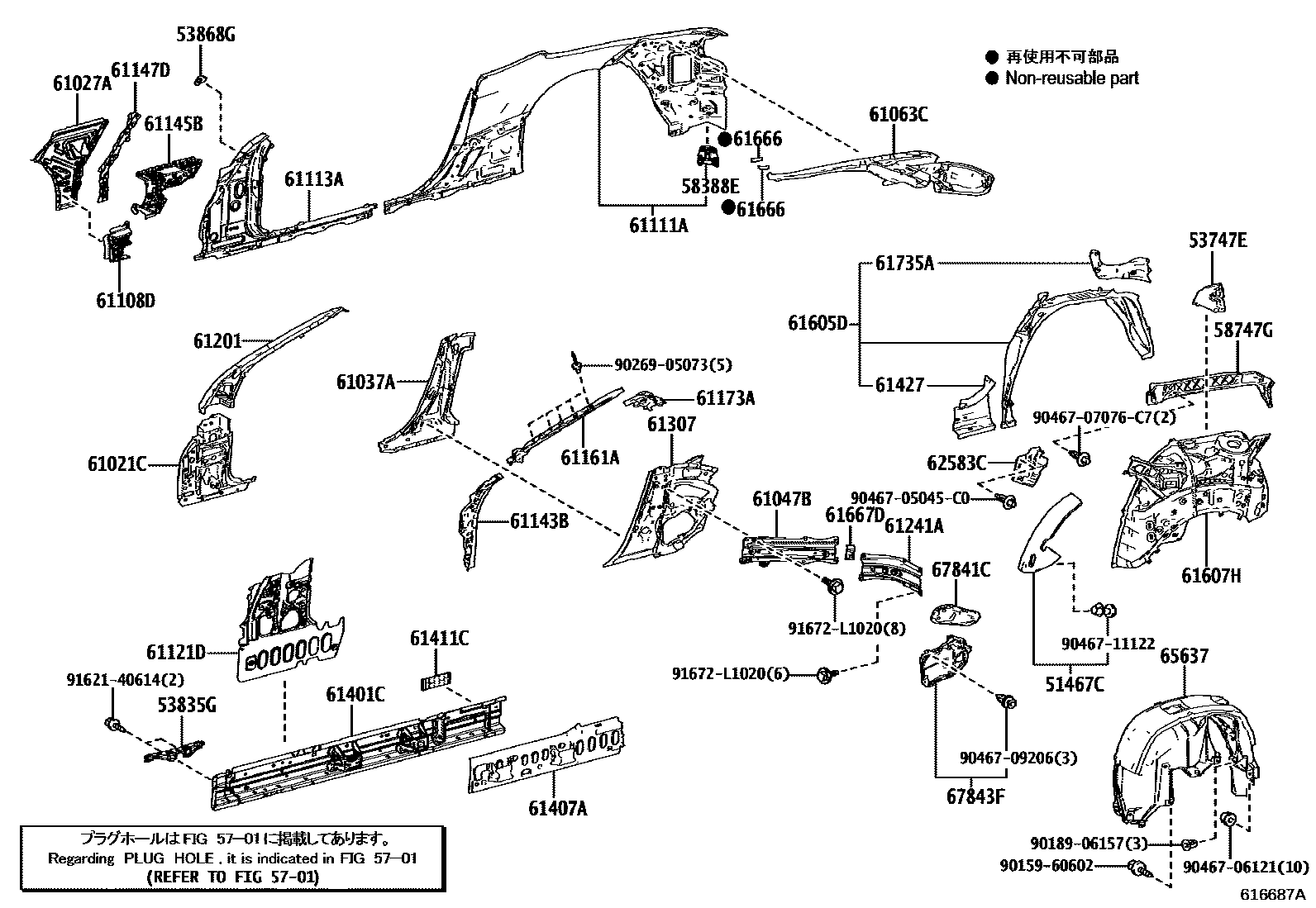

SIDE MEMBER
51467CSILENCER, SIDE RAIL INNER, NO.2 RH
53747EPLATE, AIR SEALED, RH
53835GBRACKET, FRONT SIDE PANEL, RH
53868GSEAL, FRONT FENDER TO COWL SIDE, NO.2 RH
5701
58388EPLATE, BODY LOWER BACK REINFORCEMENT, RH
58747GPROTECTOR, QUARTER PANEL, REAR RH
61021CPILLAR SUB-ASSY, FRONT BODY, RH
61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61047BREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, CENTER RH
61063CTROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT RH
61108DREINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH
61111APANEL, FRONT SIDE, OUTER RH
61113APANEL, SIDE, OUTER NO.2 RH
61121DPANEL, COWL SIDE, RH
61143BGUSSET, FRONT BODY PILLAR, UPPER INNER RH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61147DEXTENSION, FRONT BODY PILLAR, UPPER OUTER RH
61161APILLAR, FRONT BODY, INNER RH
61173AREINFORCEMENT, FRONT BODY PILLAR, UPPER INNER RH
61201RAIL SUB-ASSY, ROOF SIDE, RH
61241AGUSSET, ROOF SIDE RAIL, REAR RH
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
61401CPANEL SUB-ASSY, ROCKER, OUTER RH
61407APLATE SUB-ASSY, STEP, LOWER RH
61411CEXTENSION, ROCKER, OUTER RH
61427REINFORCEMENT, ROCKER PANEL, NO.5 RH
61605DPANEL SUB-ASSY, QUARTER WHEEL HOUSE, OUTER RH
61607HPANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH
61666SEAL, QUARTER PANEL
61667DSEAL, QUARTER PANEL
61735APANEL, ROOF SIDE, INNER REAR RH
62583CCOVER, QUARTER PILLAR, UPPER RH
65637LINER, REAR WHEEL HOUSE, RH
67841CCOVER, QUARTER SERVICE HOLE, RH
67843FCOVER, QUARTER SERVICE HOLE, NO.2 RH
9015960602
main90159-60602
9018906157
main90189-06157
9026905073
main90269-05073
9046705045C0
main90467-05045C0
9046706121
main90467-06121
9046707076C7
main90467-07076C7
9046709206
main90467-09206
9046711122
main90467-11122
9162140614
main91621-40614
91672L1020
main91672-L1020
47 parts on this diagram · 2 diagrams in section
