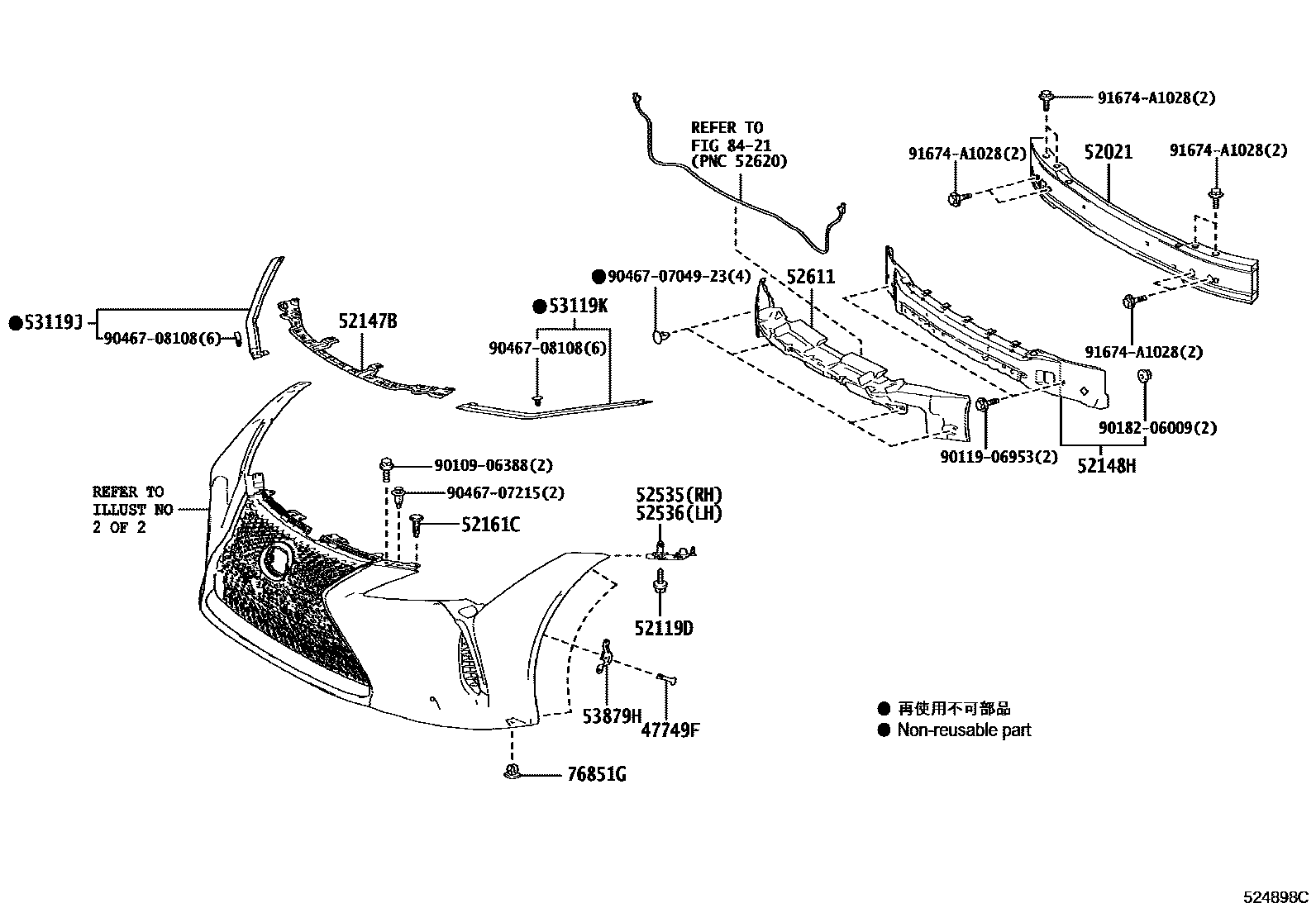

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

47749FCLIP, PIN HOLD

main47749-50090iURZ100202007

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-11010iURZ100202007

52119DSCREW, NO.1

main90159-60431iURZ100202007

52147BBRACKET, FRONT BUMPER MOUNTING

main52147-11010iURZ100202007-202210

sub52147-11011

main52147-11011iURZ100202211

52148HBRACKET, FRONT BUMPER MOUNTING, NO.2

main52148-11010iURZ100202007

52161CPIECE, FRONT BUMPER

main52161-16010iURZ100202007

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-11020iURZ100202007

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-11020iURZ100202007

52611ABSORBER, FRONT BUMPER ENERGY

main52611-11010iURZ100202007

53119JPROTECTOR, RADIATOR GRILLE, RH

main53119-11010iURZ100202007

53119KPROTECTOR, RADIATOR GRILLE, LH

main53119-11020iURZ100202007

53879HRETAINER, FRONT FENDER LINER

main53879-11010iURZ100202007

76851GGROMMET, SCREW, NO.1

main90189-06237iURZ100202007

8421

9010906388

main90109-06388

9011906953

main90119-06953

9018206009

main90182-06009

904670704923

main90467-0704923

9046707215

main90467-07215

9046708108

main90467-08108

91674A1028

main91674-A1028

21 parts on this diagram · 2 diagrams in section
