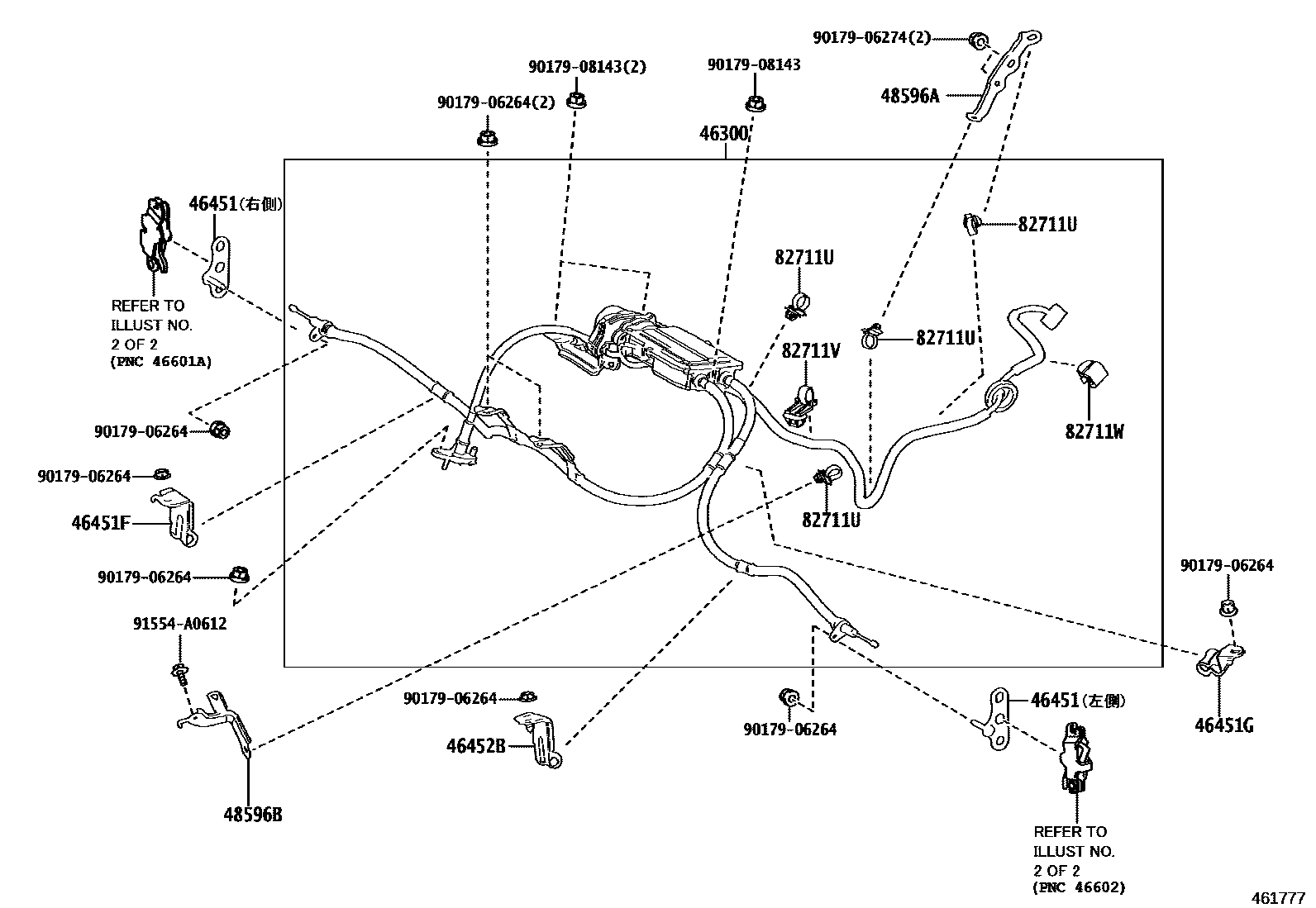

PARKING BRAKE & CABLE

0001 1 0002 1

46300ACTUATOR ASSY, PARKING BRAKE W/BRACKET

main46300-11010iURZ100202007

sub46300-11011

sub46451-11050

sub46451-11060

46451BRACKET, CABLE SUPPORT

main46451-30270iURZ100202007

main46451-30280iURZ100202007

46451FBRACKET, CABLE SUPPORT

main46451-11070iURZ100202007

46451GBRACKET, CABLE SUPPORT

main46451-11030iURZ100202007

46452BBRACKET, CABLE SUPPORT, NO.2

main46451-11040iURZ100202007

48596ACLAMP, ACTUATOR HARNESS, NO.1

main48596-11020iURZ100202007

48596BCLAMP, ACTUATOR HARNESS, NO.2

main48596-11010iURZ100202007

82711UCLAMP, WIRING HARNESS, NO.1

main82711-16830iURZ100202007

82711VCLAMP, WIRING HARNESS, NO.2

main82711-3F400iURZ100202007

82711WCLAMP, WIRING HARNESS, NO.3

main82711-3F240iURZ100202007

9017906264

main90179-06264

9017906274

main90179-06274

9017908143

main90179-08143

91554A0612

main91554-A0612

14 parts on this diagram · 2 diagrams in section
