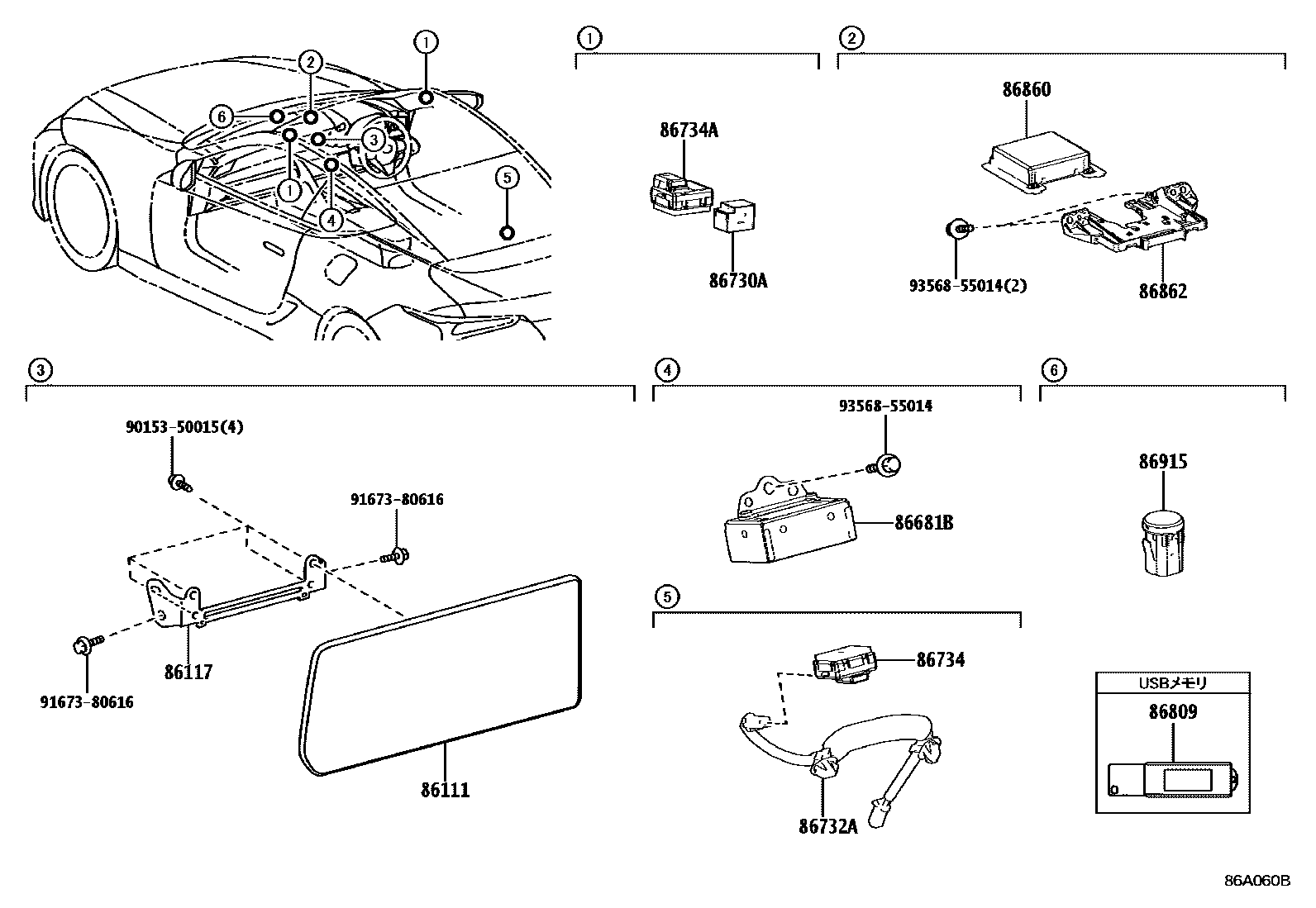

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1 0003 1�������������-

86111MULTI-DISPLAY

main86110-11170iGWZ100,URZ100202305

86117BRACKET, MULTI-DISPLAY CONTROLLER, A

main86117-11010iGWZ100,URZ100202305

86681BDIVIDER, ANTENNA

main86681-11010iGWZ100,URZ100202305

86730AMICROPHONE ASSY, TELEPHONE

main86730-78010iGWZ100,URZ100202305

86732AWIRE,MICROPHONE

main86732-11010iGWZ100,URZ100..CP202305

86734MICROPHONE, ACTIVE NOISE CONTROL

main86734-11010iGWZ100,URZ100..CP202305

main86734-11030iURZ100..CONV202305

86734AMICROPHONE, ACTIVE NOISE CONTROL, FRONT

main86734-11030iGWZ100,URZ100..CP202305

86809USB SET, USB MEMORY NAVIGATION DATA

main86809-78011iGWZ100,URZ100202305-202310

sub86809-78012

main86809-78012iGWZ100,URZ100202311-202403

sub86809-78013

main86809-78013iGWZ100,URZ100202404-202410

sub86809-78014

main86809-78014iGWZ100,URZ100202411-202503

86860ANTENNA ASSY, NAVIGATION

main86880-78010iGWZ100,URZ100202305

86862BRACKET, NAVIGATION ANTENNA

main86862-58020iGWZ100,URZ100202305

86915TRANSCEIVER, OPTICAL BEACON

main86915-60010iGWZ100,URZ100202305

9015350015

main90153-50015

9167380616

main91673-80616

9356855014

main93568-55014

14 parts on this diagram · 3 diagrams in section
