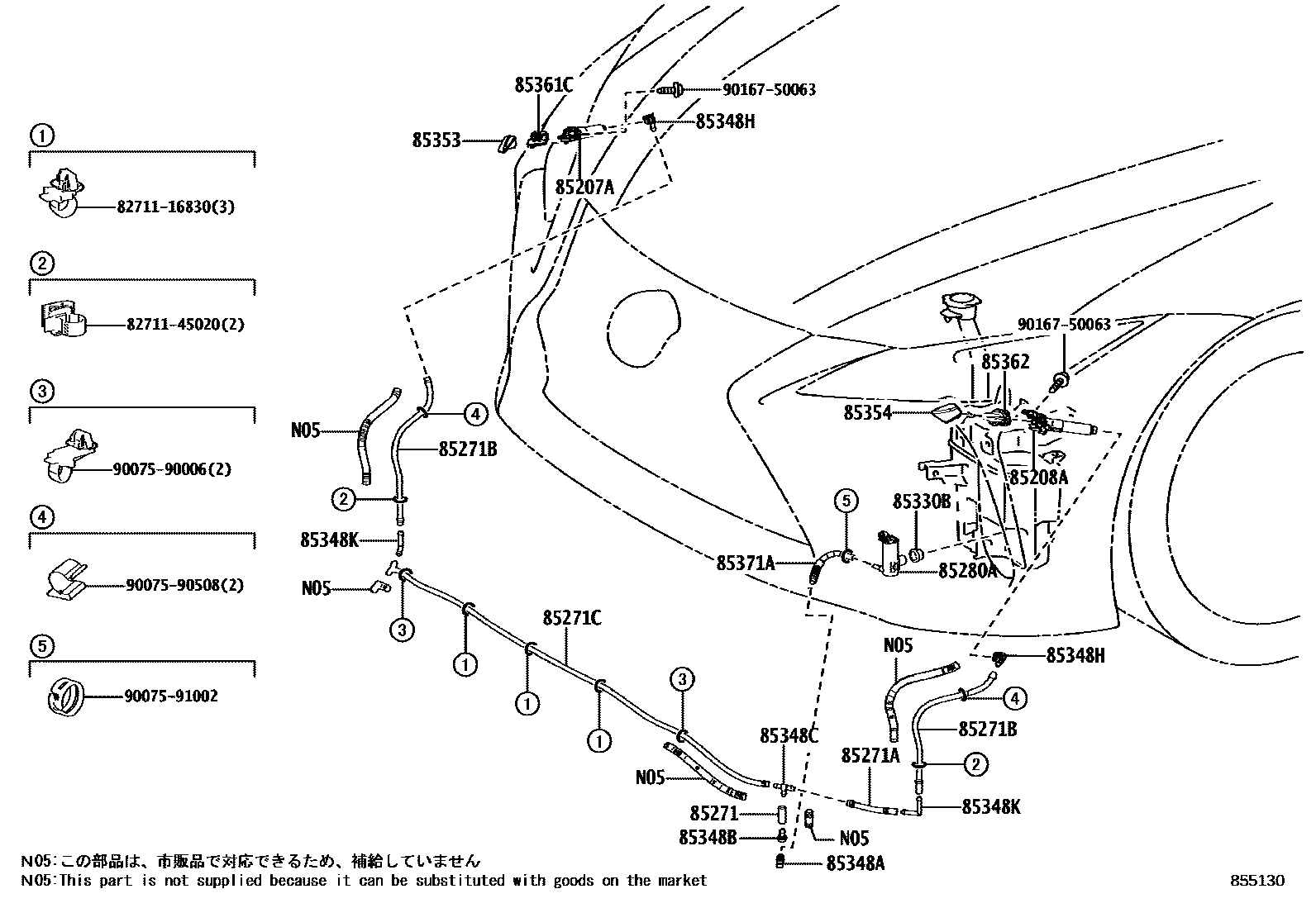

HEADLAMP CLEANER

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

main85207-11010iGWZ100,URZ100202305

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

main85208-11010iGWZ100,URZ100202305

85271HOSE, HEADLAMP CLEANER, NO.1

main90075-15053iGWZ100,URZ100202305

85271AHOSE, HEADLAMP CLEANER, NO.2

main90075-15063iGWZ100,URZ100202305

85271BHOSE, HEADLAMP CLEANER, NO.3

main90075-15101iGWZ100,URZ100202305

85271CHOSE, HEADLAMP CLEANER, NO.4

main90075-15072iGWZ100,URZ100202305

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

main85280-33030iGWZ100,URZ100202305

85330BBUSH, HEADLAMP CLEANER WASHER JAR

main90099-32089iGWZ100,URZ100202305

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main90075-17009iGWZ100,URZ100202305

85348BJOINT, HEADLAMP CLEANER HOSE, NO.2

main90075-17012iGWZ100,URZ100202305

85348CJOINT, HEADLAMP CLEANER HOSE, NO.3

main90075-17010iGWZ100,URZ100202305

85348HJOINT, HEADLAMP CLEANER HOSE, NO.4

main90075-17009iGWZ100,URZ100202305

85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1

main90075-17013iGWZ100,URZ100202305

85353COVER, HEADLAMP WASHER, RH

main85353-11080iGWZ100,URZ100202305

85354COVER, HEADLAMP WASHER, LH

main85354-11080iGWZ100,URZ100202305

85361CBRACKET, WASHER

main85361-11020iGWZ100,URZ100202305

85362BRACKET, WASHER, NO.2

main85362-11020iGWZ100,URZ100202305

85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)

main85359-11010iGWZ100,URZ100202305

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

8271145020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-45020

9007590006

main90075-90006

9007590508

main90075-90508

9007591002

main90075-91002

9016750063

main90167-50063

24 parts on this diagram · 1 diagram in section
