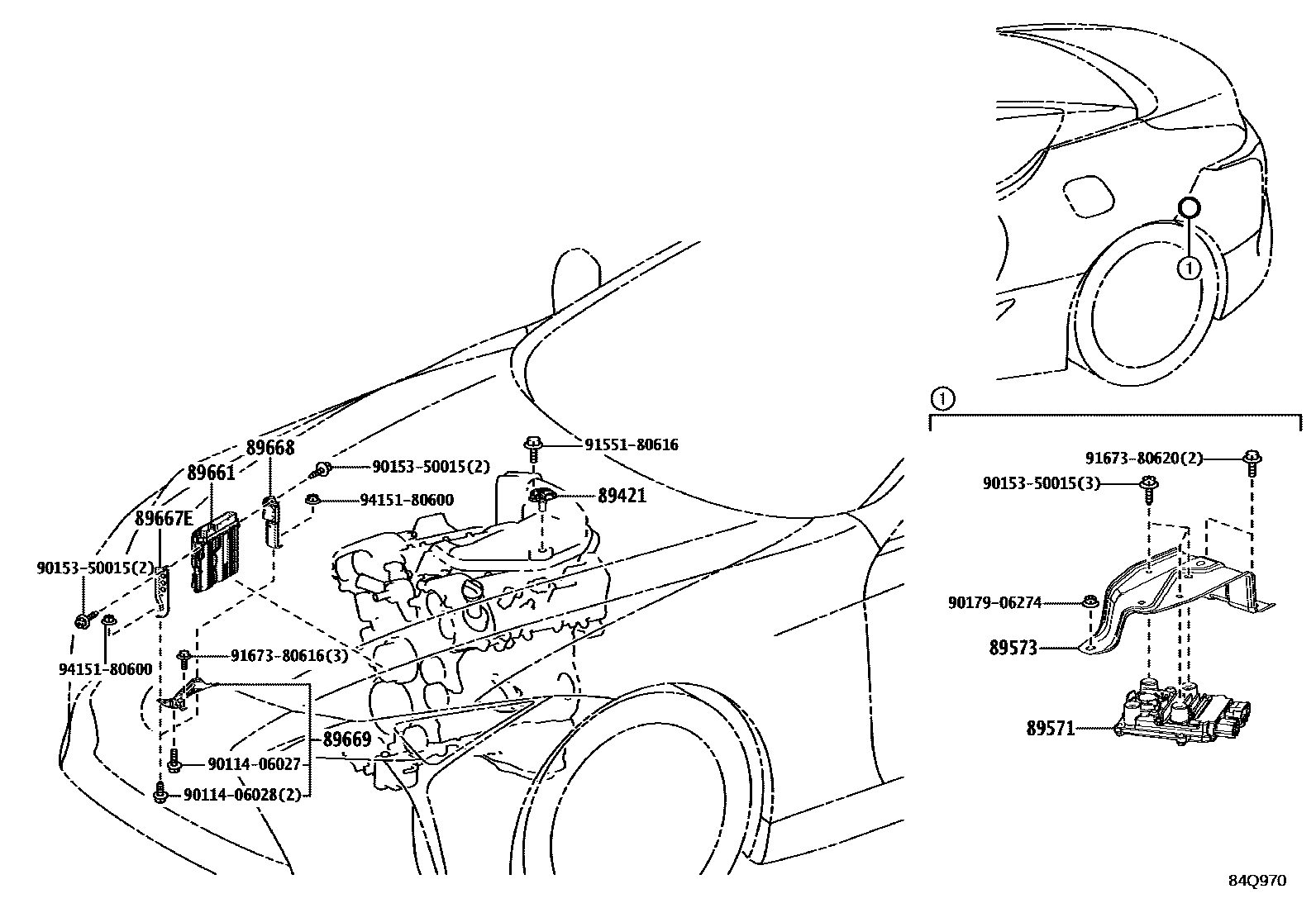

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-47010iGWZ100202305

89571COMPUTER, FUEL PUMP CONTROL

main89571-58010iGWZ100202305

main89571-58020iURZ100202305

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-11010iGWZ100,URZ100202305

89661COMPUTER, ENGINE CONTROL

main89661-11250iURZ100..CP202305-202406

main89661-11251iURZ100..CP202406

main89661-11310iURZ100..CONV202305-202406

main89661-11311iURZ100..CONV202406

main89661-11570iGWZ100202305

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-11020iURZ100202305

main89667-11030iGWZ100202305

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-11020iURZ100202305

main89668-11030iGWZ100202305

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-11020iURZ100202305

main89669-11030iGWZ100202305

9011406027

main90114-06027

9011406028

main90114-06028

9015350015

main90153-50015

9017906274

main90179-06274

9155180616

main91551-80616

9167380616

main91673-80616

9167380620

main91673-80620

9415180600

main94151-80600

15 parts on this diagram · 2 diagrams in section
