SIDE MOULDING
67495CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67496CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
75507BGARNISH SUB-ASSY, ROOF SIDE RAIL, RH
WHITE NOVA GF.,083
SONIC TITANIUM,1J7
SONIC IRIDIUM,1L2
SONIC CHROME,1L1
GRAPHITE BLACK GF.,223
RADIANT RED CONTRAST LAYE,3T5
SONIC COPPER,4Y5
NAPLES YELLOW,5C1
TERRANE KHAKI M.M.,6X4
HEAT BLUE CONTRAST LAYERI,8X1
WHITE NOVA GF.,083
SONIC TITANIUM,1J7
SONIC IRIDIUM,1L2
SONIC CHROME,1L1
GRAPHITE BLACK GF.,223
RADIANT RED CONTRAST LAYE,3T5
SONIC COPPER,4Y5
NAPLES YELLOW CONTRAST LA,5C1
TERRANE KHAKI M.M.,6X4
HEAT BLUE CONTRAST LAYERI,8X1
75508BGARNISH SUB-ASSY, ROOF SIDE RAIL, LH
WHITE NOVA GF.,083
SONIC TITANIUM,1J7
SONIC IRIDIUM,1L2
SONIC CHROME,1L1
GRAPHITE BLACK GF.,223
RADIANT RED CONTRAST LAYE,3T5
SONIC COPPER,4Y5
NAPLES YELLOW,5C1
TERRANE KHAKI M.M.,6X4
HEAT BLUE CONTRAST LAYERI,8X1
WHITE NOVA GF.,083
SONIC TITANIUM,1J7
SONIC IRIDIUM,1L2
SONIC CHROME,1L1
GRAPHITE BLACK GF.,223
RADIANT RED CONTRAST LAYE,3T5
SONIC COPPER,4Y5
NAPLES YELLOW CONTRAST LA,5C1
TERRANE KHAKI M.M.,6X4
HEAT BLUE CONTRAST LAYERI,8X1
75545ECLIP, ROOF DRIP SIDE FINISH MOULDING, RH
75545GCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
75546CCLIP, ROOF DRIP SIDE FINISH MOULDING, LH
75551EMOULDING, ROOF DRIP SIDE FINISH, RH
75552EMOULDING, ROOF DRIP SIDE FINISH, LH
75671MOULDING, QUARTER BELT, RH
75672MOULDING, QUARTER BELT, LH
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
9017906288
main90179-06288
9024906188
main90249-06188
9026906013
main90269-06013
9046709112
main90467-09112
9046712084
main90467-12084

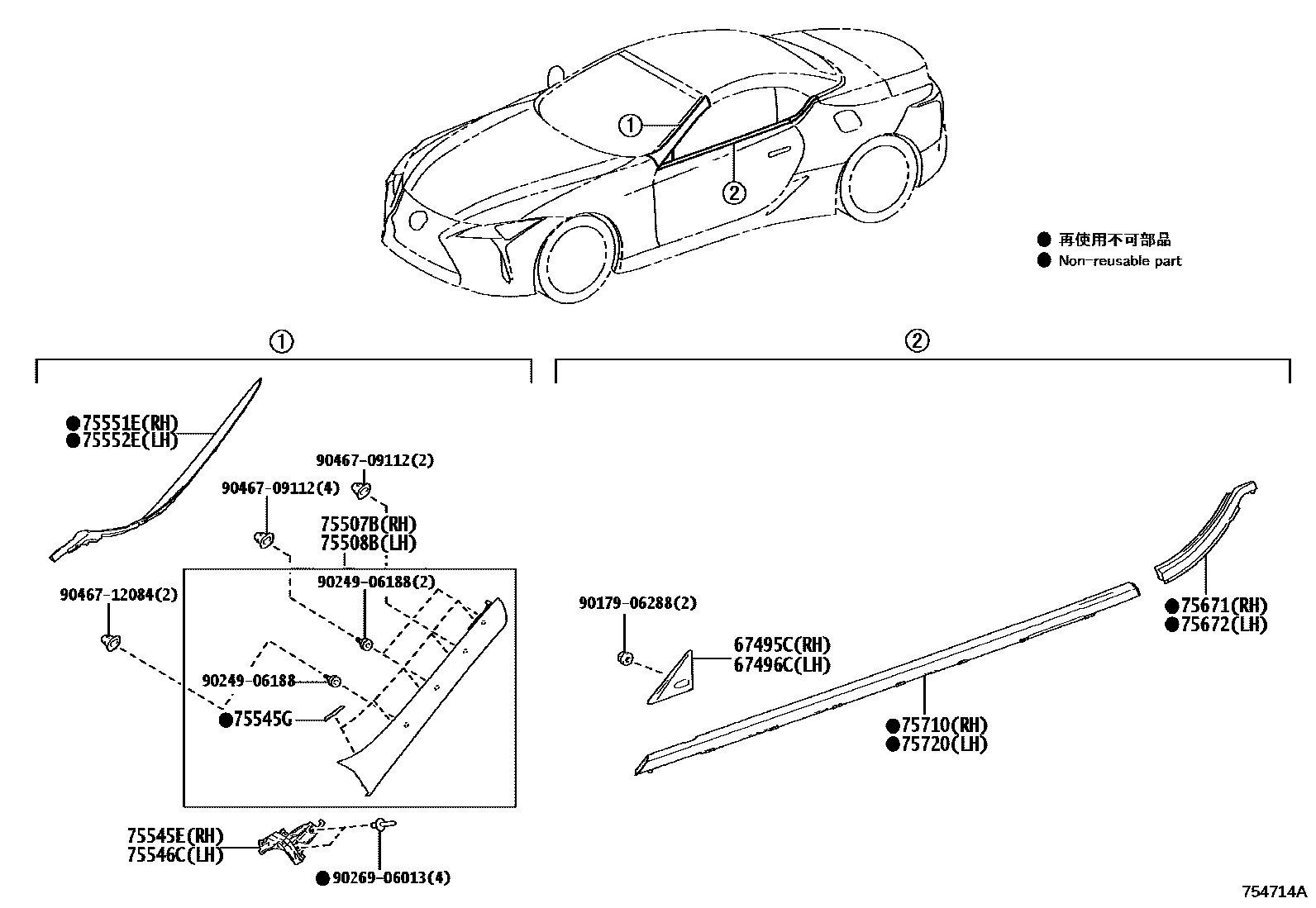

18 parts on this diagram · 4 diagrams in section
