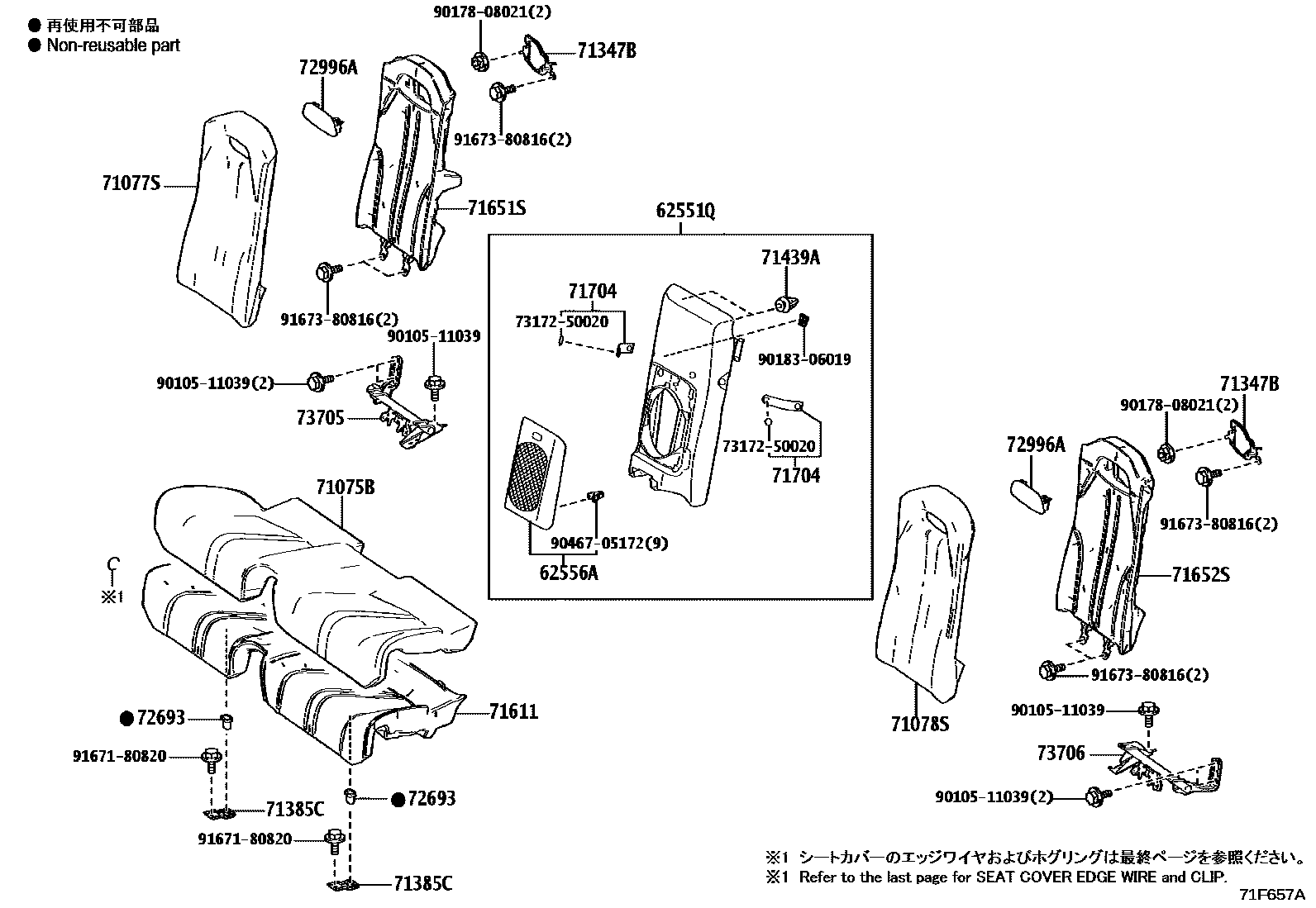

REAR SEAT & SEAT TRACK
62551QGARNISH, REAR SEAT SIDE
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHER,TRIM4#
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHER,TRIM4#
BLUE,TRIM8#
62556ACAP, REAR SEAT SIDE GARNISH
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHER,TRIM4#
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
DK. ROSE,TRIM3#
WHITE,TRIM0#
BLACK,TRIM2#
LT. OCHRE,TRIM4#
WHITE,TRIM0#
BLACK,TRIM2#
DK.ROSE,TRIM3#
LT.OCHRE,TRIM4#
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
WHITE,TRIM0#
BLACK/LT.GRAY,TRIM2#
DK. ROSE,TRIM3#
LT.OCHRE,TRIM4#
WHITE,TRIM0#
BLACK,TRIM2#
DK.ROSE,TRIM3#
LT.OCHRE,TRIM4#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
WHITE,TRIM0#
BLACK/LT.GRAY,TRIM2#
DK. ROSE,TRIM3#
LT.OCHRE,TRIM4#
WHITE,TRIM0#
BLACK,TRIM2#
DK.ROSE,TRIM3#
LT.OCHRE,TRIM4#
71347BBRACKET, REAR SEATBACK STAY, NO.1
71385CBRACKET, REAR SEAT CUSHION HOLDER
71439ACLIP
71611PAD, REAR SEAT CUSHION
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
71704BAND SUB-ASSY, REAR SIDE SEAT
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHER,TRIM4#
72693HOOK, REAR SEAT CUSHION LOCK
72996ACOVER, REAR SEATBACK
BLACK,TRIM03,2#,3#
BLACK,TRIM2#,3#
OCHRE,TRIM4#
BLUE,TRIM00,8#
BLUE,TRIM0#
BLACK,TRIM2#,3#
OCHER,TRIM4#
BLUE,TRIM0#
BLACK,TRIM2#
OCHER,TRIM4#
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
7317250020CAP, FRONT SHOULDER BELT HANGER
main73172-50020
9010511039
main90105-11039
9017808021
main90178-08021
9018306019
main90183-06019
9046705172
main90467-05172
9167180820
main91671-80820
9167380816
main91673-80816
23 parts on this diagram · 3 diagrams in section
