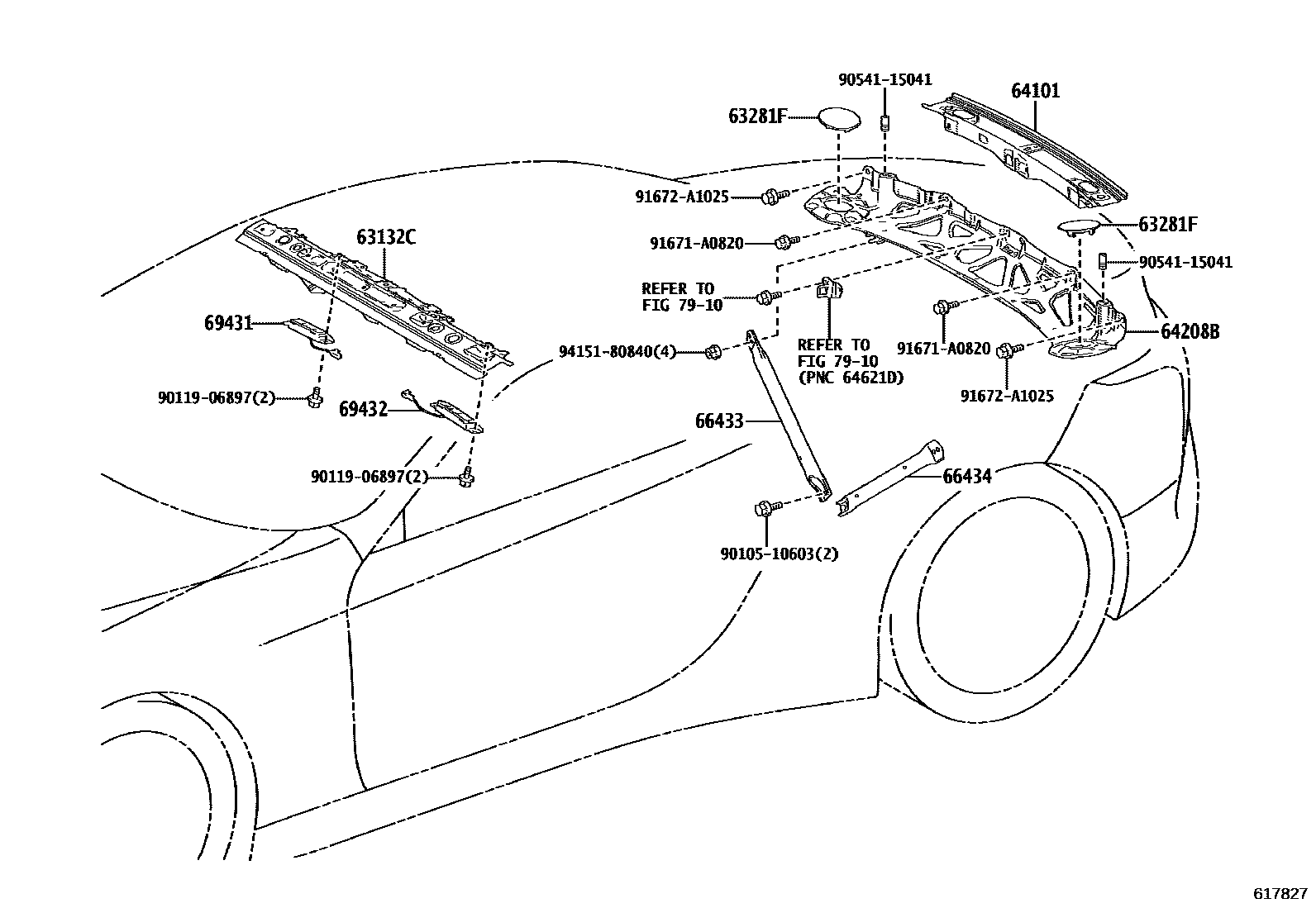

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1

63132CPANEL, WINDSHIELD HEADER, INNER

main63102-11031iURZ100..CONV202305

63281FSTOPPER, REMOVABLE ROOF LOCK

main63281-11010iURZ100..CONV202305

64101PANEL SUB-ASSY, UPPER BACK

main64101-11040iGWZ100,URZ100..CP202305

main64101-11050iURZ100..CONV202305

64208BMEMBER SUB-ASSY, ROOM PARTITION CROSS

main64208-11010iURZ100..CONV202305

66433BRACE, SIDE REAR STEP, RH

main66433-11010iURZ100..CONV202305

66434BRACE, SIDE REAR STEP, LH

main66434-11010iURZ100..CONV202305

69431STRIKER, TOP COVER LOCK, NO.1 RH

main69431-11020iURZ100..CONV202305

69432STRIKER, TOP COVER LOCK, NO.1 LH

main69432-11010iURZ100..CONV202305

7910

9010510603

main90105-10603

9011906897

main90119-06897

9054115041

main90541-15041

91671A0820

main91671-A0820

91672A1025

main91672-A1025

9415180840

main94151-80840

15 parts on this diagram · 3 diagrams in section
