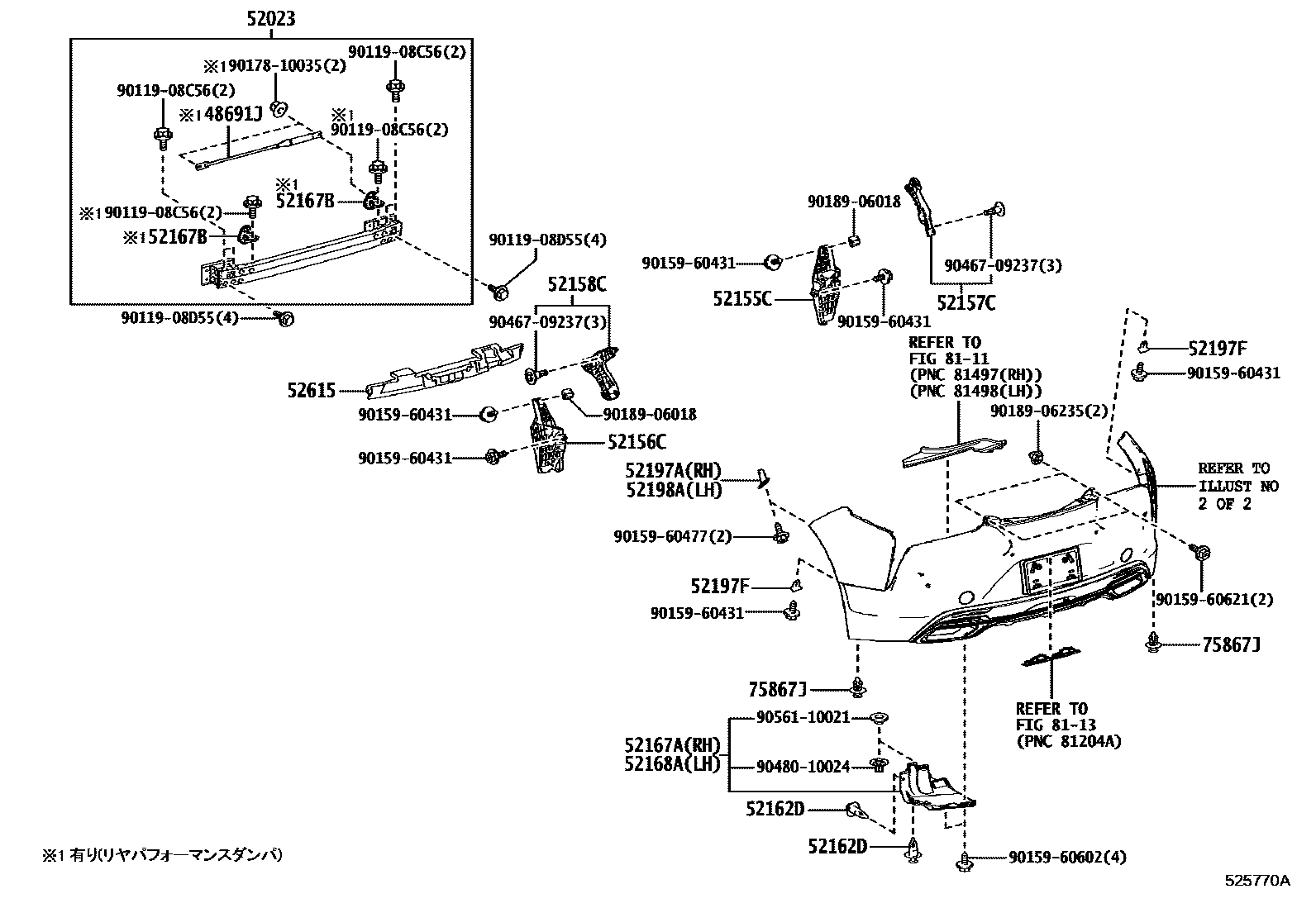

REAR BUMPER & BUMPER STAY

0001 1 0002 1

48691JDAMPER, SUSPENSION TOWER

main48691-11020iURZ100202305

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-11020iGWZ100202305

main52023-11070iURZ100202305

52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH

main52155-11010iGWZ100,URZ100202305

52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH

main52156-11010iGWZ100,URZ100202305

52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-11010iGWZ100,URZ100202305

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-11010iGWZ100,URZ100202305

52162DPIECE, REAR BUMPER

main52161-16010iGWZ100,URZ100202305

52167ASUPPORT, REAR BUMPER SIDE, NO.4 RH

main52167-11010iGWZ100,URZ100202305

52167BBRACKET, REAR BUMPER EXTENSION MOUNTING, RH

main52167-11020iURZ100202305

52168ASUPPORT, REAR BUMPER SIDE, NO.4 LH

main52168-11010iGWZ100,URZ100202305

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-53040iGWZ100,URZ100202305

52197FBRACKET, REAR BUMPER SEAL

main52197-62020iGWZ100,URZ100202305

52198ABRACKET, REAR BUMPER SEAL, LH

main52198-53020iGWZ100,URZ100202305

52615ABSORBER, REAR BUMPER ENERGY

main52615-11020iGWZ100,URZ100202305

75867JCLIP, ROCKER PANEL MOULDING, NO.2

main75867-33050iGWZ100,URZ100202305

8111

8113

9011908C56

main90119-08C56

9011908D55

main90119-08D55

9015960431

main90159-60431

9015960477

main90159-60477

9015960602

main90159-60602

9015960621

main90159-60621

9017810035

main90178-10035

9018906018

main90189-06018

9018906235

main90189-06235

9046709237

main90467-09237

9048010024

main90480-10024

9056110021

main90561-10021

29 parts on this diagram · 2 diagrams in section
