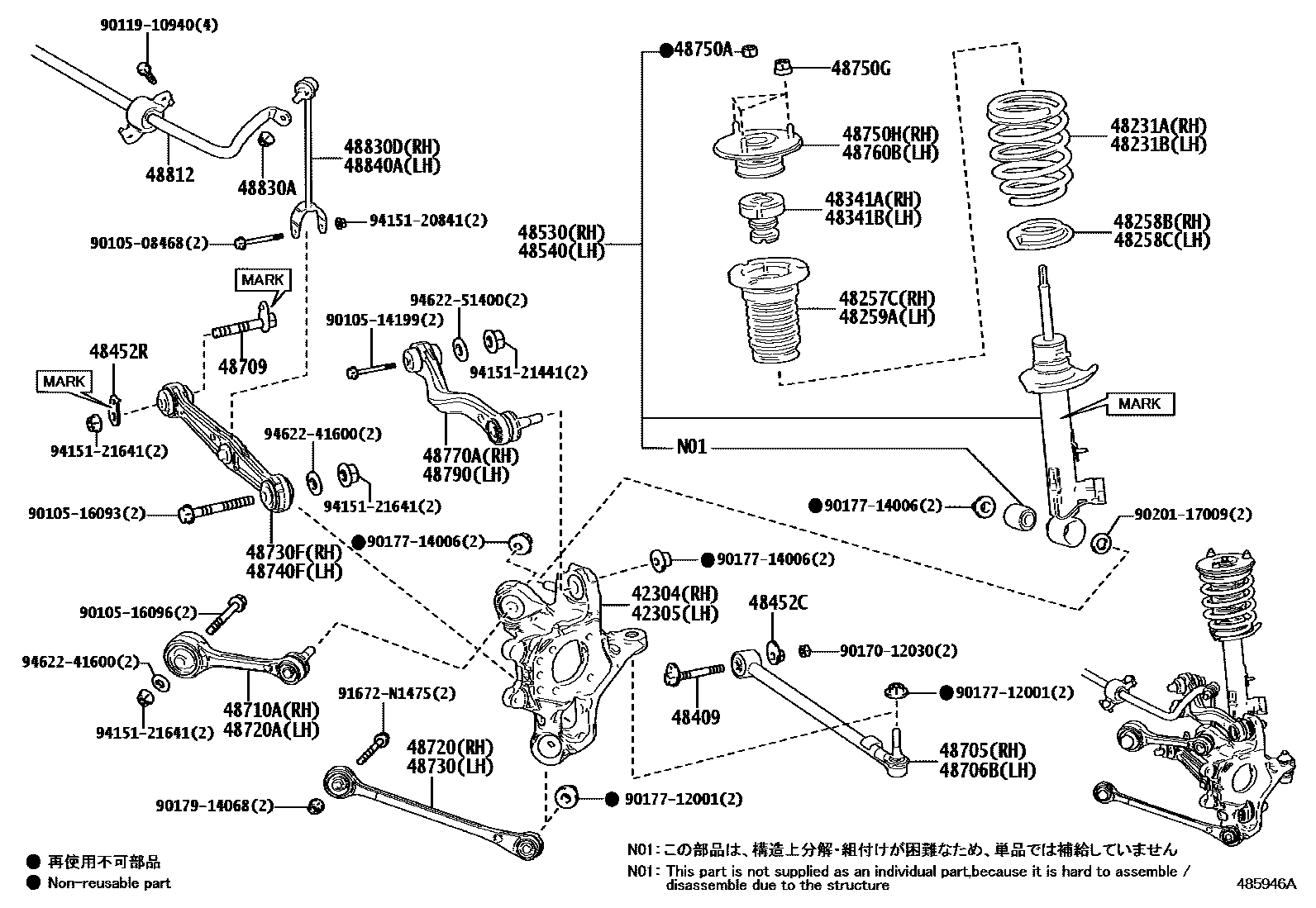

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42305CARRIER SUB-ASSY, REAR AXLE, LH
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48452CPLATE, REAR SUSPENSION TOE ADJUST
48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2
48530ABSORBER ASSY, SHOCK, REAR RH
48540ABSORBER ASSY, SHOCK, REAR LH
48705LINK SUB-ASSY, TOE CONTROL, RH
48706BLINK SUB-ASSY, TOE CONTROL, LH
48709ATTACHMENT SUB-ASSY, REAR SUSPENSION ARM
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720ARM ASSY, LOWER CONTROL, RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730ARM ASSY, LOWER CONTROL, LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48750ANUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
48750GNUT(FOR REAR SUSPENSION SUPPORT)
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48760BSUPPORT ASSY REAR SUSPENSION, LH
48770AARM ASSY, UPPER CONTROL, REAR RH
48790ARM ASSY, UPPER CONTROL, REAR LH
48812BAR, STABILIZER, REAR
48830ANUT(FOR REAR STABILIZER LINK)
48830DLINK ASSY, REAR STABILIZER, RH
48840ALINK ASSY, REAR STABILIZER, LH
9010508468
main90105-08468
9010514199
main90105-14199
9010516093
main90105-16093
9010516096
main90105-16096
9011910940
main90119-10940
9017012030
main90170-12030
9017712001
main90177-12001
9017714006
main90177-14006
9017914068
main90179-14068
9020117009
main90201-17009
91672N1475
main91672-N1475
9415120841
main94151-20841
9415121441
main94151-21441
9415121641
main94151-21641
9462241600
main94622-41600
9462251400
main94622-51400
50 parts on this diagram · 4 diagrams in section
