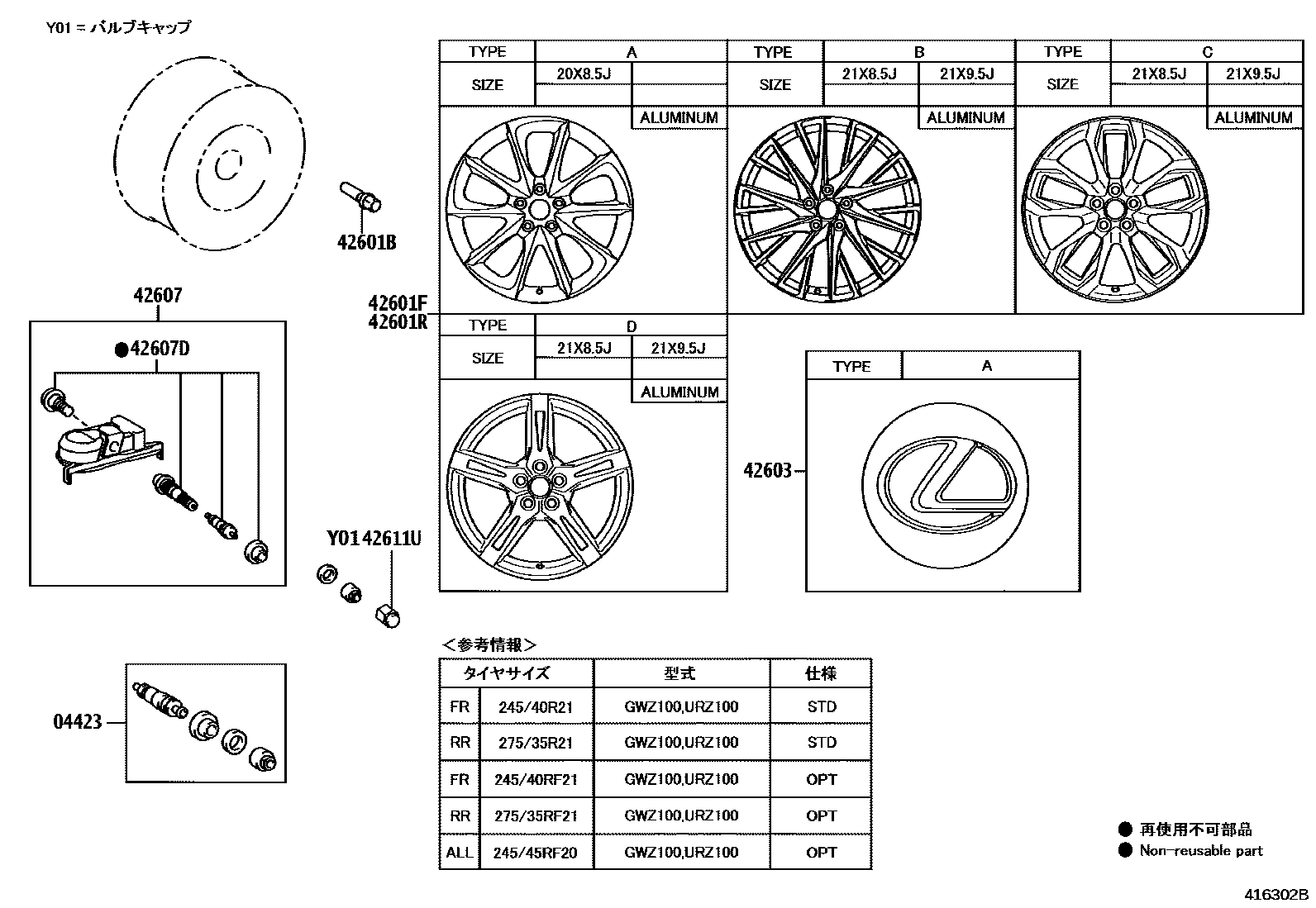

DISC WHEEL & WHEEL CAP

0001 1��������� & ������������� 0002 1���������

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-48010×4iGWZ100,URZ100202305

42601BBOLT, HUB (FOR AXLE)

main90942-02107supersedes 90942-02103iGWZ100,URZ100202305

main90942-02108supersedes 90942-02103iGWZ100,URZ100202305

42601FWHEEL, DISC (FOR FRONT)

main42611-WY450×2iURZ100..CP202305-202501

main4261A-11030×2supersedes 4261A-11050iGWZ100,URZ100202305

main4261A-11070×2supersedes 4261A-11050iGWZ100,URZ100202305

42601RWHEEL, DISC (FOR REAR)

main42611-WY460×2iURZ100..CP202305-202501

main4261A-11040×2supersedes 4261A-11060iGWZ100,URZ100202305

main4261A-11070×2supersedes 4261A-11060iGWZ100,URZ100202305

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-53140×4iGWZ100,URZ100202305-202508

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-48040×4iGWZ100,URZ100202305-202410

main42607-48060×4iGWZ100,URZ100202410

42607DVALVE, TIRE PRESSURE MONITOR

main90942-05050×4iGWZ100,URZ100202305

42611UCAP, TIRE VALVE

main90942-05048×4iGWZ100,URZ100202305

8 parts on this diagram · 2 diagrams in section
